KBP 1001 (KBS 1051)

Mitering band saw for light- and heavy-duty steel fabrication and service centers
Workspace 90° [mm]: 1,030 x 500
Benefits at a glance
Highest cutting performance
Long machinery life
Robust construction
Highest automation possibilities
Precise setting of cutting angle
Significant reduction of cutting time by means of Auto Feed Control
Outstanding cutting performance Auto Feed Control (AFC)

Precise positioning
Automatic tilt angle adjustment of the saw band in case of heavy products
Significantly reduced cutting times
First class end products

Optimal Feed

Saw feed with ball screw and servomotor
Constant and temperature-independent feed
Low idle times and higher machine utilization

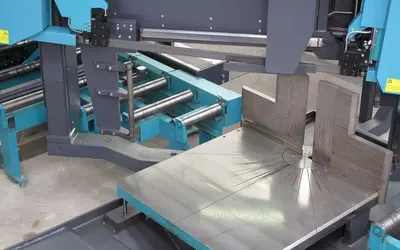

Precise setting

NC-controlled angle setting
High quality cuts
NC-standard enables highest reliability

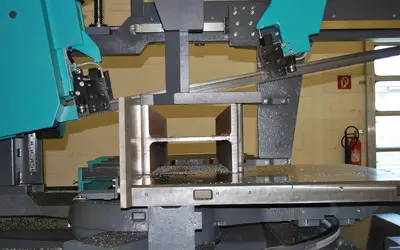

Powerful and reliable clamping

Horizontal and vertical clamping device
Low vibrations for long saw band lifetime and low operating costs
Cutting of material layers and bundles possible

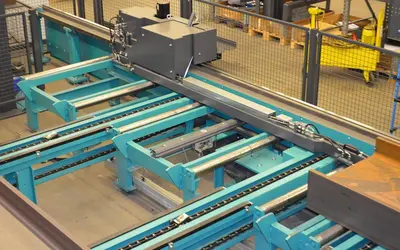

Optimal process flow

Accurate positioning of material at in- and outfeed side
Measuring carriages with various types of pushers and grippers
Length stop LS 220 and LS 270

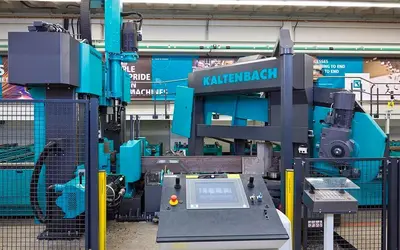

Full system automation

Automated outsorting of short parts
SPG - Short piece gripper for outsorting at one side
AS - Autosorter AS 1000 for outsorting at both sides
Precise positioning
Automatic tilt angle adjustment of the saw band in case of heavy products
Significantly reduced cutting times
First class end products
Saw feed with ball screw and servomotor
Constant and temperature-independent feed
Low idle times and higher machine utilization
NC-controlled angle setting
High quality cuts
NC-standard enables highest reliability
Horizontal and vertical clamping device
Low vibrations for long saw band lifetime and low operating costs
Cutting of material layers and bundles possible
Accurate positioning of material at in- and outfeed side
Measuring carriages with various types of pushers and grippers
Length stop LS 220 and LS 270
Automated outsorting of short parts
SPG - Short piece gripper for outsorting at one side
AS - Autosorter AS 1000 for outsorting at both sides
PROFILINE
Modern Software Package for KALTENBACH Drilling and Drilling-Sawing Machines

PROFILINE
Easy, user friendly machine operation
Programming of orders via color touchscreen with large keypads directly on the machine control console
PROFILINE
Order manager

Create, copy and delete orders
Graphic display of individual positions within an order

PROFILINE
Profile database

Comprehensive profile database
Easily expandable
Graphic display of workpiece forms

PROFILINE
Tool manager

Tool Changer setup based upon the tool type and diameter
Allocation of the drill diameter to rotational speed settings and feed rates

PROFILINE
Production data report
Recording of production times of individual pieces or entire orders
PROFILINE
Data transfer and data response

Data input directly on the machine’s control console
Data import in DSTV or DSTV+ format
Data export of previously produced parts in DSTV feedback format to any directory
