Coil Handling & Press Feed Lines

55 years of continuous coil line technology development has elected Dimeco as one of the world biggest supplier to the stamping market as well as to fabricating.

Dimeco provides the world widest range of equipment, matching needs of small press shops up to major automotive market players.

Huge R&D work has been achieved to develop the new levelling technologies required by the evolution of materials available today (high press steel).

Main features of equipment:

Coil weight from 200 kg (440 Lbs) to 35 tons (77,000 Lbs)

Strip width from 200 mm (8”) to 2000 mm (79 “)

Material thickness from 0.1 mm (4 thou) up to 10 mm (0.4 in.)

Material quality from soft aluminium up to 1500 Mpa high press steel

Coil cradle, 3 in 1 combination, short line & long line configurations match all applications.
55 years of continuous coil line technology development has elected Dimeco as one of the world biggest supplier to the stamping market as well as to fabricating.
Dimeco provides the world widest range of equipment, matching needs of small press shops up to major automotive market players.
Huge R&D work has been achieved to develop the new levelling technologies required by the evolution of materials available today (high press steel).
Main features of equipment
Coil weight from 200 kg (440 Lbs) to 35 tons (77,000 Lbs)
Strip width from 200 mm (8”) to 2000 mm (79 “)
Material thickness from 0.1 mm (4 thou) up to 10 mm (0.4 in.)
Material quality from soft aluminium up to 1500 Mpa high press steel
Coil cradle, 3 in 1 combination, short line & long line configurations match all applications.
KONICA MINOLTA DIGITAL CAMERA
10
11
<
>
Download PDF Brochure

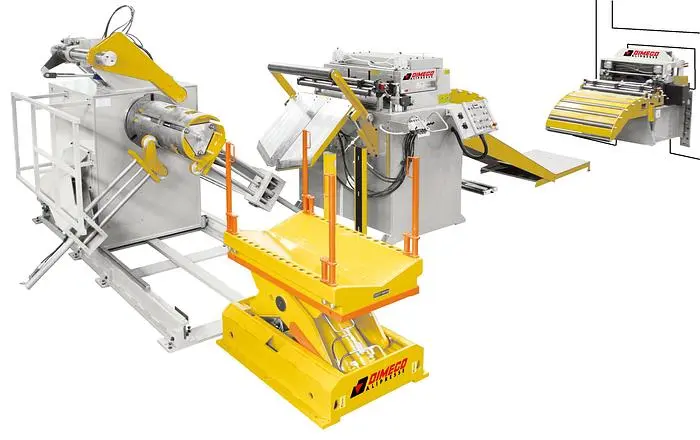

Line Structure

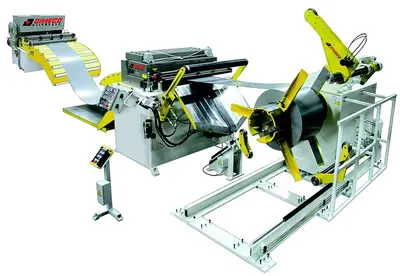

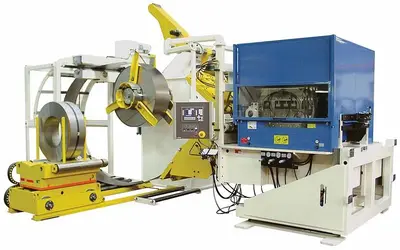

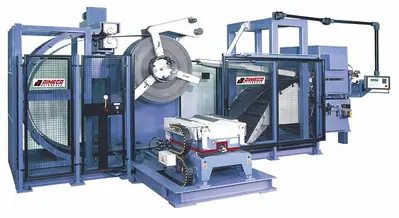

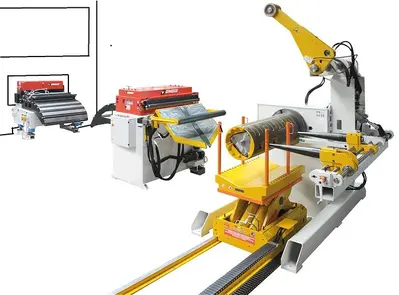

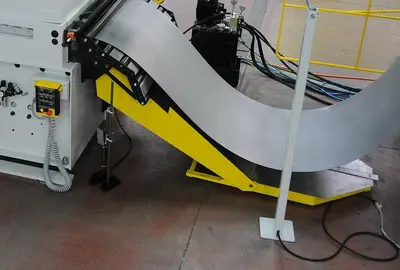

Long lines
The most efficient, the fastest, the one to use with delicate materials.
Straightener and feeders are separated by a loop allowing the feeder and the press to run at maxi speed with a smooth and continuous process in the straightener.
Speed software automatically matches feeders and coil unwinding speed together with press rate and feed length.
Infeed peeler & table allow safe and quick coil change process.
<
>

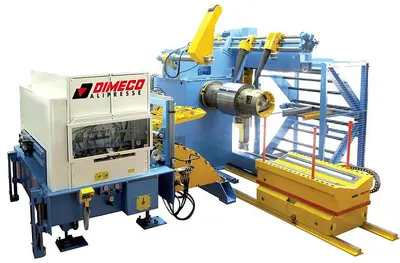

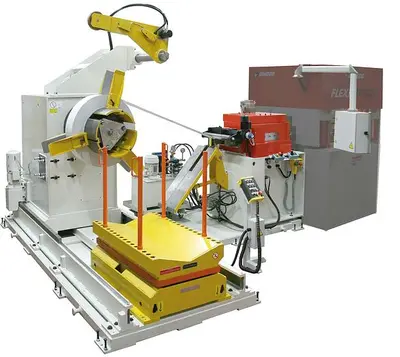

Short lines
How to save space…
The best for heavy materials…
Straightening and feeding operations are combined in one machine.
We use either a loop under coil or a rear loop when possible.
For specific applications, a servo driven uncoiler is used to match feed rate.
<
>

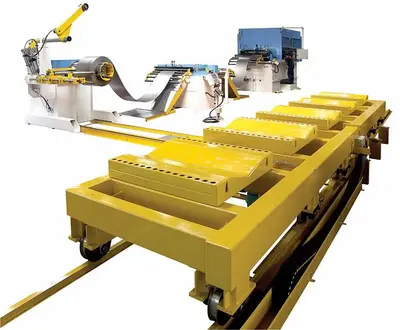

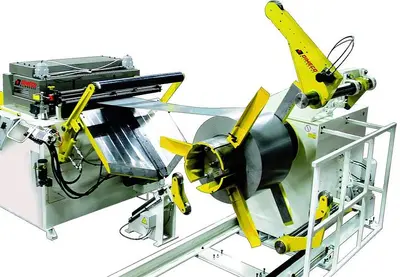

Quick Coil change
Today challenge is to make short runs and to get the press running as much as possible…
Solutions for quick coil change:

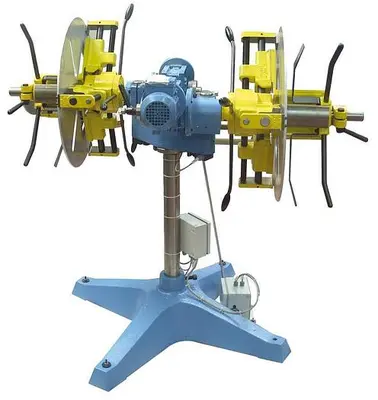

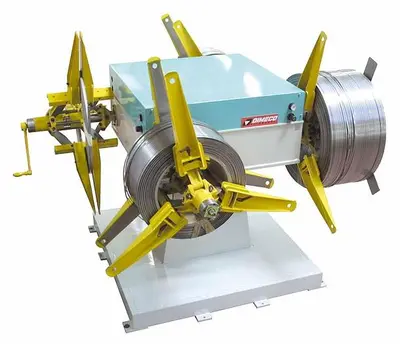

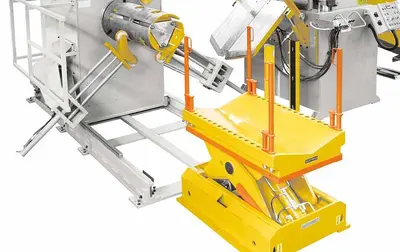

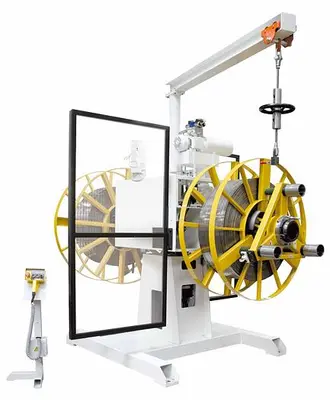

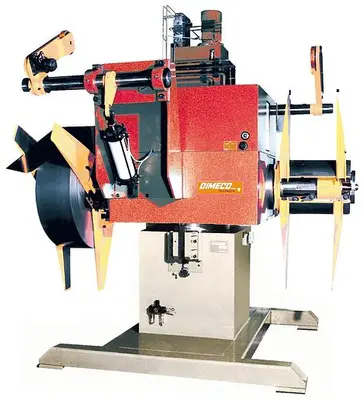

Double and quadruple uncoilers
Integrated coil loading (tilting) equipment
Multiple coil holder

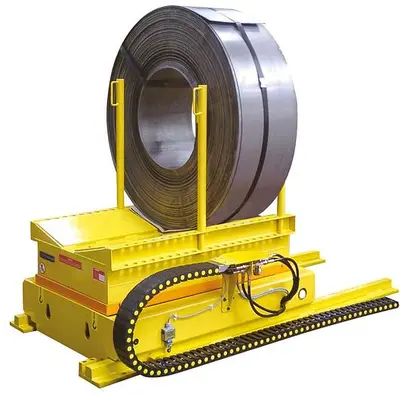

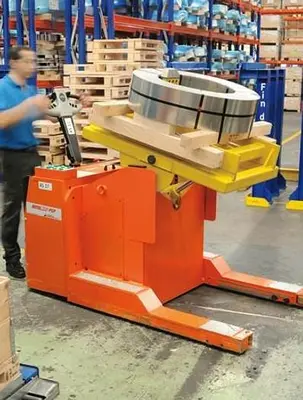

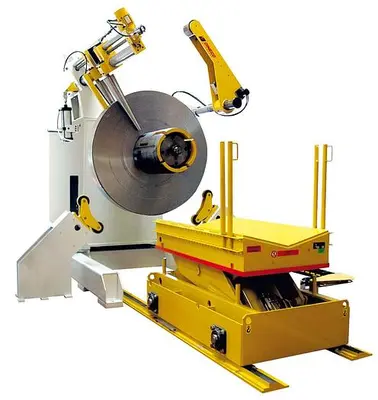

Autonomous coil loading & tilting car
KONICA MINOLTA DIGITAL CAMERA
<
>

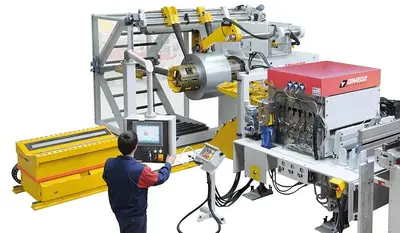

Operator safety
New stronger materials bring risks which must be overcome by specific ancillaries.
Coil containing snuber rolls
Infeed peeler
Threading table

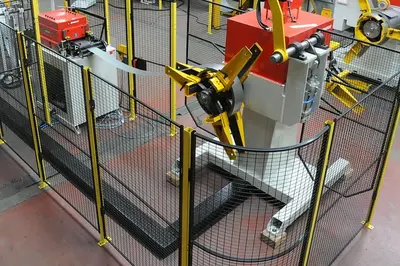

Perimetre fencing with safety locks and light barriers
<
>

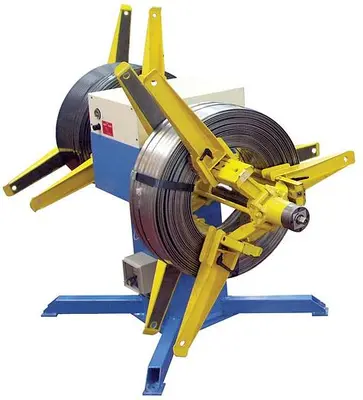

World widest uncoiler Range
KONICA MINOLTA DIGITAL CAMERA
10
<
>
Model
Metric
US
Weight (kg)
Width (mm)
Weight (lbs)
Width (inches)
Up to
Up to
Up to
Up to
2310
200
200
440
Single & Double
2330
500
300
1,100
12
Single & Double
2350
1,000
500
2,200
20
Single & Double
2371
3,000
800
6,600
31
Single & Double
2381
4,500
800
9,900
31
Single & Double
2384
6,000
1300
13,200
51
Single & Double
2386
8,000
1300
17,600
51
Single Only
2387
10,000
1500
22,000
59
Single Only
2395
15,000
1800
33,000
71
Single & Double
2398
25,000
2000
55,000
79
Single Only
2399
35,000
2000
77,000
79
Single Only

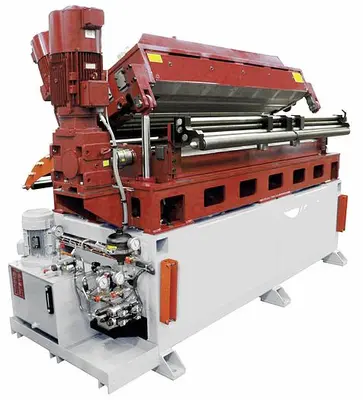

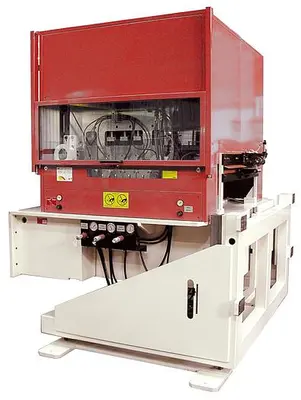

Straightener & corrective leveller range
KONICA MINOLTA DIGITAL CAMERA
<
>
CRADLE TYPE STRAIGHTENER
Model
Metric
US
Width (mm)
Thickness (mm)
Width (inches)
Thickness (inches)
Up to
From
Up to
Up to
From
Up to
1632
100
0.1
0.004
0.039
1633
160
0.2
0.008
0.079
1634
665
0.2
3.5
26
0.008
0.138
1681
410
0.2
2.5
16
0.008
0.098
1683
1,825
0.2
3.4
72
0.008
0.134
1684
2,050
0.3
81
0.012
0.236
1685
2,050
0.4
81
0.016
0.276
INDIVIDUAL ROLL ADJUSTMENT STRAIGHTENER
Model
Metric
US
Width (mm)
Thickness (mm)
Width (inches)
Thickness (inches)
Up to
From
Up to
Up to
From
Up to
1635
300
0.4
12
0.016
0.039
1645
500
0.2
20
0.008
0.118
R674
1,300
0.15
51
0.006
0.157
R676
1,300
0.4
51
0.016
0.236
R690
2,000
0.5
79
0.02
0.315
R691
2,050
1.2
81
0.047
0.354
R6925
2,050
0.15
5.5
81
0.006
0.217
CORRECTIVE LEVELLERS
Model
Metric
US
Width (mm)
Thickness (mm)
Width (inches)
Thickness (inches)
Up to
From
Up to
Up to
From
Up to
P693/6
2,000
0.2
79
0.008
0.079
P694/6
2,000
0.3
2.5
79
0.012
0.098
P696/6
2,000
0.6
4.5
79
0.024
0.0177
P697/6
2,000
1.2
79
0.047
0.0236

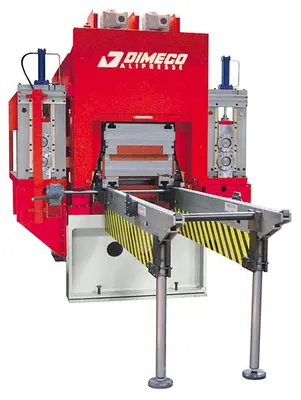

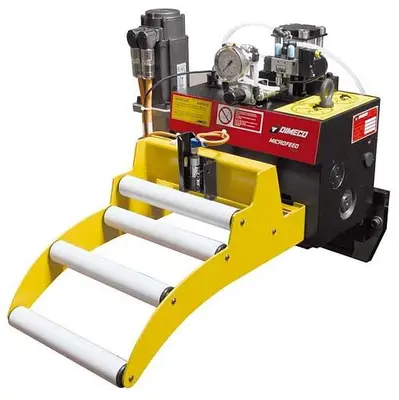

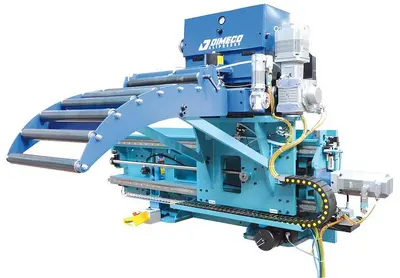

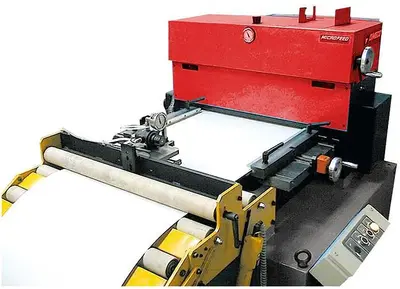

Servo Feed range
KONICA MINOLTA DIGITAL CAMERA
<
>
Model
Metric
US
Width (mm)
Thickness (mm)
Width (inches)
Thickness (inches)
Up to
From
Up to
Up to
From
Up to
1050
105
0.2
0.008
0.039
1060
310
0.2
1.5
12
0.008
0.059
1082
815
0.2
32
0.008
0.118
1100
1,020
0.2
40
0.008
0.236
1125
1,500
0.2
6.35
59
0.008
0.25
1160
2,050
0.2
10
81
0.008
0.394
Straightener feeders are available within same range as straighteners
Staggered and push pull feed
All feeders and straightener feeders can be implemented with “Zig Zag” base allowing staggered stamping.
Push pull feeders with synchronized servo controls are also available.
<
>
