(consists of 9×9 Control, Backgauge Cable, Ram Switch with Cable and Adaptor Box)

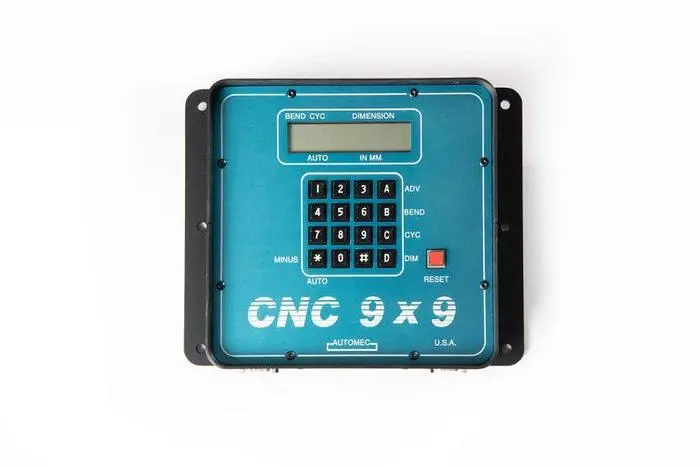

CNC 9×9 is a simple-to-use 9 blend, single axis system with IN/MM conversation and bend allowance. CNC 9×9 was developed as a low cost solution to be used with Automec’s series of backgauges for press brakes. The control carries a 2 year warranty.
9 bends per job
.001″resolution
5 year flash memory backup
9 cycles (or repeats)per bend
1/2″ LCD display
Control size 8 1/4″ H X 10″ W X 2 1/4″ D
Bend allowance +/- .999″
IN/MM conversion
Control weight 4 lbs
Single axis only
Tactile feel pushbuttons
Input power – 115 VAC +/- 10% 50/60 HZ, 1A (control)
Input power – 115 VAC +/- 10% 50/60 HZ, 15A (backgauge)
