(consists of CNC 300 Control, Backgauge Cable (MTC), All Relay Board, Relay Board Cable, Linear Scale Cable, Top Reference Switch, and Auto Advance Switch).

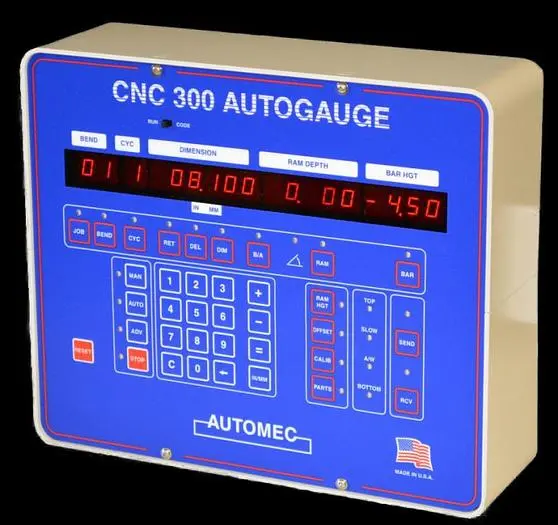

CNC 300 is a control for Automec backgauges that can be programmed as simply as the CNC 150 or it can be programmed to use an array of sophisticated functions. CNC 300 will control any of the Automec backgauge configurations as either a 1-axis (backgauge), 2-axis (ram control) or 3-axis (programmable gauge bar height). This control carries a 2 year warranty.
Ram display can show true ram position in depth or angle.
Single entry ram offset and bend allowance included
All ram dimensions can be offset +/- .393″ with one data entry RS232 interface and software
300 jobs (00 to 299)
Automatic ram calibration to tool heights
10 bends per job (linking available) .001″ resolution
Tool library
Red L.E.D. display
Depth or angle mode
IN/MM conversion
Programmable delay / retract between bends (0-19 sec.)
Tactile feel push buttons
Bend allowance +/- .393″
30 day battery backup
Calculator to change dimensions incrementally
Input power – 115 VAC +/- 10% 50/60 HZ, 7A
Angle adjust for angle correction
24″ or 48″ backgauge
Backguage reversal on pinch point (time and distance)
11 digit job number
Parts counter
1,2, or 3 axis available
