(consists of CNC 150 Control, Backgauge Cable (MTC), All Relay Board, Relay Board Cable, Linear Scale Cable, and Auto Advance Switch).

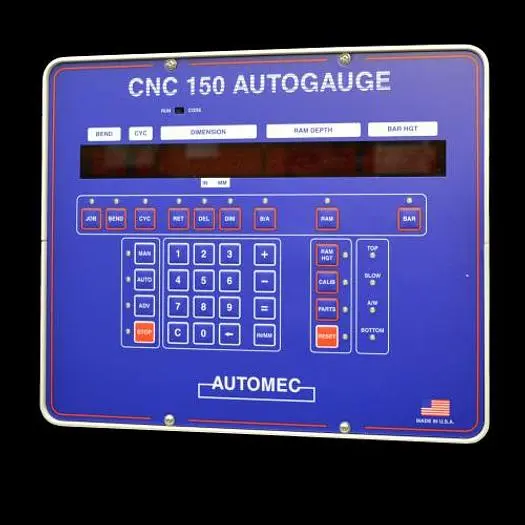

CNC 150 is an economical, simple-to-use control that incorporates the most popular features used in our 30-plus years experience in the press brake backgauging business. CNC 150 will control any of the Automec backgauge configurations as either 1-axis (backgauge), 2-axis (Ram Control) or 3-axis (programmable gauge bar height). This control carries a 2 year warranty.
11-digit part storage
All ram dimensions can be offset +/- .393″ with one data entry
Retract on pinch point with 2 or 3 axis system
150 jobs (00 to 150)
Calculator to change dimensions incrementally
IN/MM conversion
20 bends per job
Parts counter
Membrane keyboard
Programming delay/retract between bends (0-19 seconds)
1,2, or 3 axis
30-day battery back up
Bend allowance +/- .393″
.001″ resolution
Input power – 115 VAC +/- 10% 50/60 HZ, 7A
Red L.E.D. display
Ram display can show true ram position or freeze lowest position attained for diagnosis
