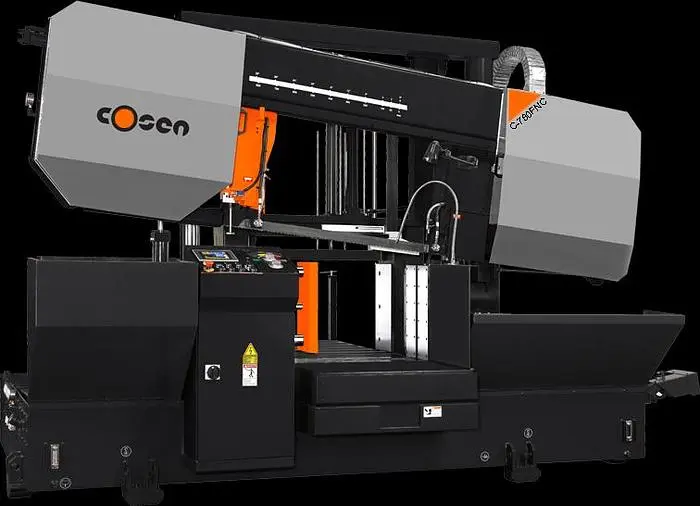

C-780FNC

Structure

Hydraulic dual column design with precision feed pressure and feed rate valve system for optimal cutting performance. Adjustable cast iron guide arm

Mechanics

Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush

Blade

Infinitely variable blade speeds. Hydraulic blade tensioning system. Carbide blade guides and bearings. Cosen's Save-A-Blade feature

Coolant

Adjustable flood coolant system. Additional coolant hose for work-bed and auger cleanup

Vising

Cast iron hydraulic vise with split jaw to help reduce burr

Interface

5.7" HMI touchscreen system that allows for controlled multiple indexing of material up to 999" in length

Round Capacity: 21.7"
Rectangular Capacity (HxW): 21.7" x 30.7"
Blade Speed: 82 - 443 FPM
Blade Size (LxWxT): 23' 7" x 2" x .050" / .063"
Blade Motor: 10 HP
Coolant Motor: 1/4 HP
Coolant Tank Capacity: 22.45 gal
Hydraulic Tank Capacity: 10.57 gal
Workbed Height: 29.9"
Floorspace (LxWxH): 159.4" x 83" x 95"
