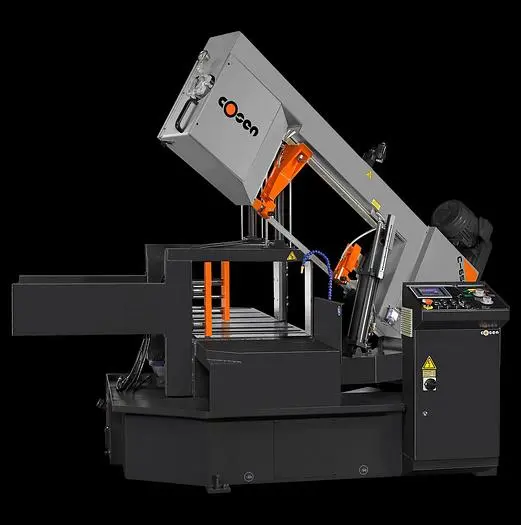

Structure
Hydraulic cylinder supports and ball joint. Adjustable cast iron guide arm. Allows for straight and miter cutting from 0 to +60 degrees
Mechanics
Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush
Blade
Inverter blade drive system. Hydraulic blade tensioning system. Carbide blade guides and bearings. Cosen's Save-A-Blade feature
Coolant
Adjustable flood coolant system. Additional coolant hose for work-bed and auger cleanup
Vising
Cast iron hydraulic vises
Interface
5.7" HMI touchscreen system that allows for controlled multiple indexing of material up to 999" in length. Feed pressure and feed rate valve system
| Weight | 6,332 lbs | 6,332 lbs |
Capacity Angle: 0 +45 +60
Round Capacity: 16.5" 16" 10"
Rectangular Capacity: 15" x 25.6" 16" x 16" 16" x 10"
Blade Speed: 82 - 410 FPM
Blade Size (LxWxT): 17' 5" x 1.5" x .050
Blade Motor: 7.5 HP
Coolant Motor: 1/4 HP
Coolant Tank Capacity: 30 gal
Hydraulic Tank Capacity: 17 gal
Workbed Height: 29.5"
Floorspace (LxWxH): 123.3" x 112.8" x 76"
