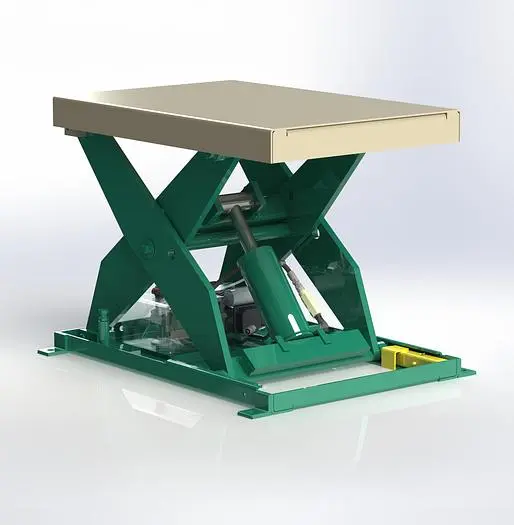

Backsaver Hydraulic Lift Tables

Southworth Backsaver Hydraulic Lift Tables are extremely rugged and reliable machines. Thousands of Backsaver Hydraulic Lift Tables are in use throughout world for machine feeding, work positioning, assembly, order picking, pallet loading, and a wide range of other applications. Backsaver Lift Tables are available in many basic sizes and capacities to lift and position loads up to 6,000 lbs to heights up to 56". The wide range of power options, controls, tabletops, and base configurations that can be specified for each of the many basic sizes gives the user an almost unlimited choice of variations.
Hydraulic Lift Tables in 2,000, 3,000, 4,000 and 6,000 lb. capacities
Lifting Heights to 56"
Platforms up to 72" x 96"
Optional Platforms Including Conveyor Tops, Ball Transfers, and Turntables Available
Custom Finishes Including Two-Part Epoxy, Corrosion Resistant Coatings and Stainless Steel Available
Standard Units Available for Quick Shipment
Low pressure hydraulics
Fast raising and lowering
Fully adjustable down speed
Heavy-duty torque tubes to minimize deflection
Lubricated for life pins, rollers and bushings
Full width straight through axles for increased stability throughout the travel range
Heavy-duty wire braided hoses for maximum burst strength
Tell-tale return hydraulic line prevents fluid spillage
Built-in maintenance chocks
Bolt-on power unit - neat, clean, easily accessible
Southworth Backsaver Hydraulic Lift Tables are extremely rugged and reliable machines. Thousands of Backsaver Hydraulic Lift Tables are in use throughout world for machine feeding, work positioning, assembly, order picking, pallet loading, and a wide range of other applications. Backsaver Lift Tables are available in many basic sizes and capacities to lift and position loads up to 6,000 lbs to heights up to 56". The wide range of power options, controls, tabletops, and base configurations that can be specified for each of the many basic sizes gives the user an almost unlimited choice of variations.

Ls2-24: 2000 lbs; 31.25"; 7.25"; 24" x 36"; 48" x 60"; 1; 115/1/60; 530 lbs
Ls3-24: 3000 lbs; 31.25"; 7.25"; 24" x 36"; 48" x 60"; 1; 115/1/60; 560 lbs
Ls4-24: 4000 lbs; 31.25"; 7.25"; 24" x 36"; 48" x 60"; 1; 115/1/60; 625 lbs
Ls6-24: 6000 lbs; 31.25"; 7.25"; 24" x 36"; 48" x 60"; 1; 115/1/60; 600 lbs
Ls2-36: 2000 lbs; 43.25"; 7.25"; 24" x 48"; 48" x 72"; 1; 115/1/60; 630 lbs
Ls3-36: 3000 lbs; 43.25"; 7.25"; 24" x 48"; 48" x 72"; 1; 115/1/60; 645 lbs
Ls4-36: 4000 lbs; 43.25"; 7.25"; 24" x 48"; 48" x 72"; 1; 115/1/60; 655 lbs
Ls6-36: 6000 lbs; 43.25"; 7.25"; 24" x 48"; 48" x 72"; 3; 460/3/60; 825 lbs
Ls2-48: 2000 lbs; 55.25"; 7.25"; 24" x 64"; 48" x 96"; 3; 460/3/60; 990 lbs
Ls3-48: 3000 lbs; 55.25"; 7.25"; 24" x 64"; 48" x 96"; 3; 460/3/60; 1000 lbs
Ls4-48: 4000 lbs; 55.25"; 7.25"; 24" x 64"; 48" x 96"; 3; 460/3/60; 1030 lbs
Ls6-48: 6000 lbs; 55.25"; 7.25"; 24" x 64"; 48" x 96"; 3; 460/3/60; 1080 lbs
Ls2-24w: 2000 lbs; 31.25"; 7.25"; 36" x 36"; 60" x 60"; 1; 115/1/60; 605 lbs
Ls3-24w: 3000 lbs; 31.25"; 7.25"; 36" x 36"; 60" x 60"; 1; 115/1/60; 615 lbs
Ls4-24w: 4000 lbs; 31.25"; 7.25"; 36" x 36"; 60" x 60"; 1; 115/1/60; 630 lbs
Ls6-24w: 6000 lbs; 31.25"; 7.25"; 36" x 36"; 60" x 60"; 1; 115/1/60; 675 lbs
Ls2-36w: 2000 lbs; 43.25"; 7.25"; 36" x 48"; 60" x 72"; 1; 115/1/60; 740 lbs
Ls3-36w: 3000 lbs; 43.25"; 7.25"; 36" x 48"; 60" x 72"; 1; 115/1/60; 760 lbs
Ls4-36w: 4000 lbs; 43.25"; 7.25"; 36" x 48"; 60" x 72"; 1; 115/1/60; 795 lbs
Ls6-36w: 6000 lbs; 43.25"; 7.25"; 36" x 48"; 60" x 72"; 3; 460/3/60; 825 lbs
Ls2-48w: 2000 lbs; 55.25"; 7.25"; 48" x 64"; 72" x 96"; 3; 460/3/60; 1460 lbs
Ls3-48w: 3000 lbs; 55.25"; 7.25"; 48" x 64"; 72" x 96"; 3; 460/3/60; 1480 lbs
Ls4-48w: 4000 lbs; 55.25"; 7.25"; 48" x 64"; 72" x 96"; 3; 460/3/60; 1490 lbs
Ls6-48w: 6000 lbs; 55.25"; 7.25"; 48" x 64"; 72" x 96"; 3; 460/3/60; 1475 lbs
