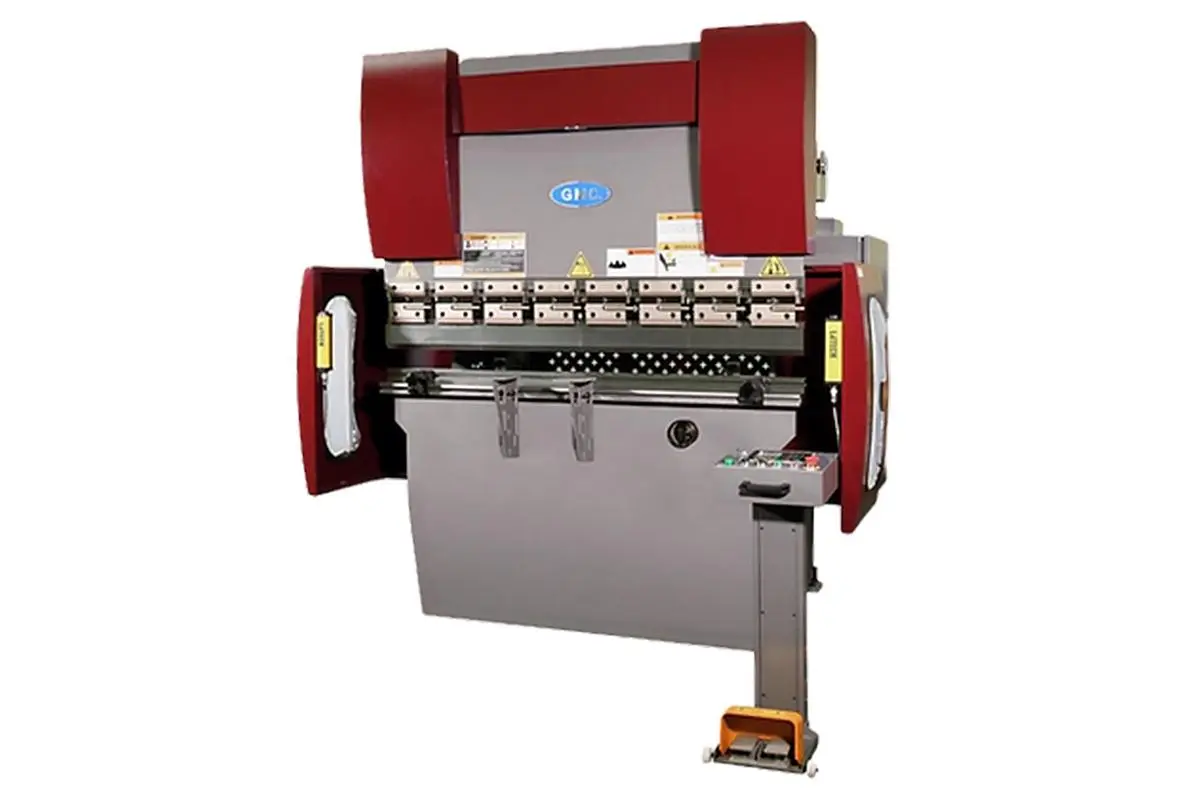

NEW GMC MACHINE TOOLS HPB-7006
Overview
Specs
Product: Press Brake
Capacity: 70 Tons
Max Bending Length: 80"
Distance Between Housings: 63"
Stroke: 6"
Table Width: 6"
Distance Between Table and Ram: 15.25"
Throat: 10"
Back Gauge Distance: 24"
Back Gauge Repeatability: .0039"
X-Axis Repeatability: .0039"
Main Motor: 7.5 HP, 3 Phase, 30 Amp, 220V
Hydraulic Oil: 52 Gallons
Dimensions (approx): 103" x 63" x 87"
Weight (approx): 8,650 Lbs.
Equipped With
ESA (Italy) Model S625, 2 Axis CNC Controller
(2) 24” front support arms, Quick Release for easy positioning
Quick release segmented (American Style Tooling) punch holder
Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
Full Length Vee Die with 6 assorted sizes HRC 50
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop
OSHA safety standard
