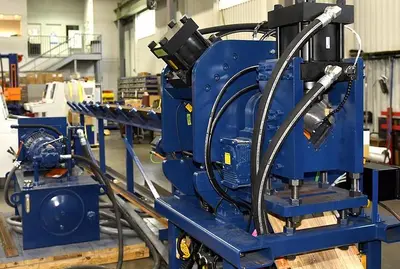

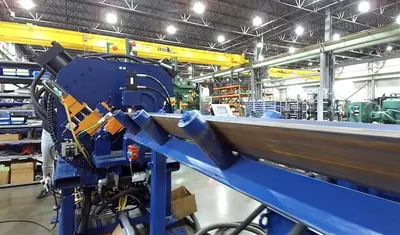

Ocean Machinery, together with its US manufacturing partner, Peddinghaus, has created a superb new CNC angle line that breaks all the rules.
The Ocean CLIPPER II was specifically created for fabricators desiring a competitive advantage through automation by elimination of manual layout and manual punching of angles and flat bar.
The maximum angle size is 6 x 6 x 5/8″ (150 x 150 x 15mm).

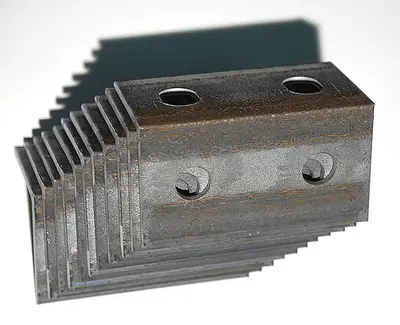

It has the ability to process short clip angles as well as long bracing angles and flat bars.
The Clipper II CNC Angle Line completely eliminates manual layout, and manual drilling / punching.
Provides exceptional accuracy of hole placement, eliminating costly field modifications.
Very space efficient – much more compact than other angle lines.
Simple and easy to operate.
No computer experience required.

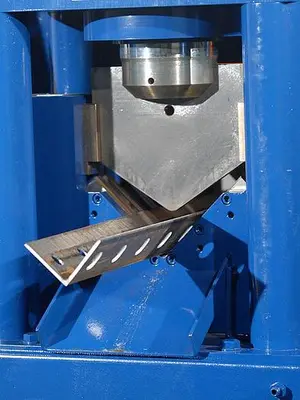

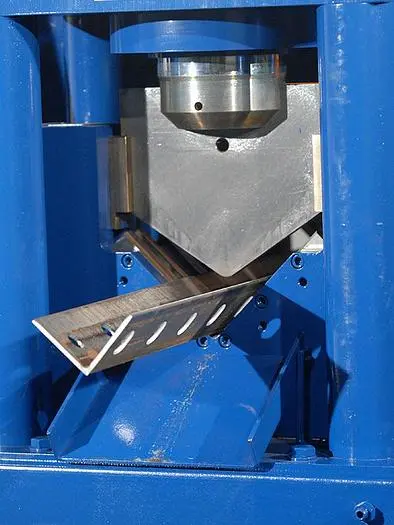

Fully automatic punching and shearing cycle
Immediate payback on a low investment through attractive finance options.
Max. Angle Size: 6 x 6 x 5/8″ (150 x 150 x 15mm)
Min. Angle Size: 1-1/2 x 1-1/2 x 1/8″ (40 x 40 x 4mm)
Max. Flat Bar Size: 6 x 5/8″ (150 x 15mm)
Min Flat Bar Size: 2 x 1/4″ (50 x 6mm)
Punching Tonnage: 75 Tons US (68 Metric Tons)
Max. Punch Size: 1-1/4″ Diameter – Standard (270) / 26mm Diameter – Metric (PFP #3)
Punch Cycle Time: 2 seconds
