Main Features

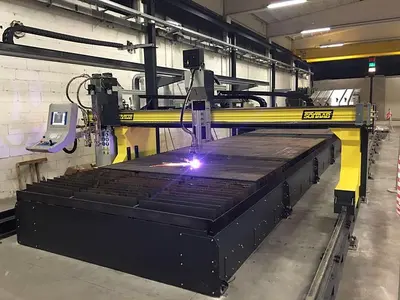

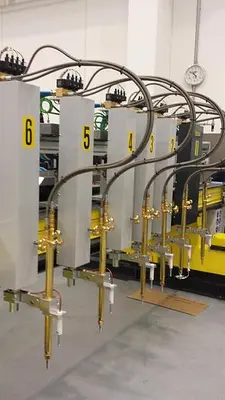

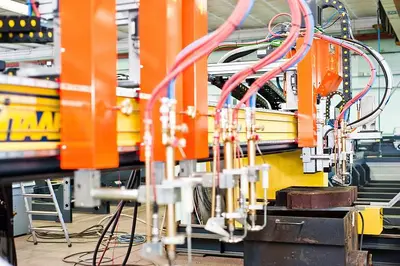

Can be equipped with up to 6 oxyfuel and 2 plasma stations
Total beam width of up to 5.5 m, and depending on the number of work stations, covers a useful cutting width up to4.5m
Automatic oxyfuel gas distribution via 3 fully proportional valves controlled by CNC
Optional high-definition plasma cutting with automatic gas control make LineaTech RED ideal for cutting complicated shapes, holes of small diameters, slots, and ne details
The CNC II can be enhanced with a database for plasma cutting parameters
Library of 30 shapes with fixed cutting parameters expandable to 78 shapes

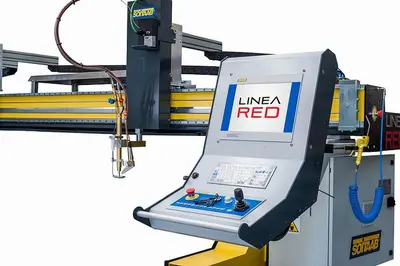

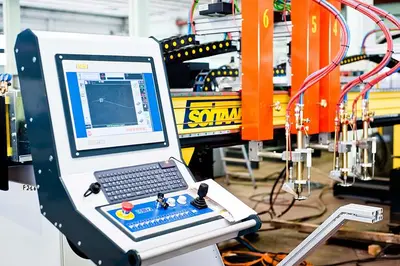

LCD control panel with 15 in TFT color touch screen
Rail span (min-max): 9.8 ft. up to 18 ft.
Machine length: 6.5 ft. (2.0 m)
Machine use length with 4 m rails: 6.5 ft. (2.0 m)
Longitudinal rails beam support: HEB - STD 4.75 in. (120 mm)
Transversal beam construction: Double
Transversal guides: Roller-bearing guides
Rack: Vertical teeth
Longitudinal drive motor: Dual side drives
Displacement speed: 787 ipm (20 m/min)
Quality standard: ISO 9013 | e EN DIN 28 206ß
Max number of Master carriage: 2
Max number of Slave carriage (plasma): 1
Max number of Slave carriage (oxy): 6
Double Master: 2 plasma (or 1 plasma + 1 oxy)
Gas distribution (oxy): Automatic
Maximum cutting thickness (oxy): 10 in. (250 mm)
Gas for oxy flame: Oxygen, propane, methane, acetylene
Max plasma power: Up to 400 Amps
Bevel plasma: YES
Bevel oxy: MR + -90°

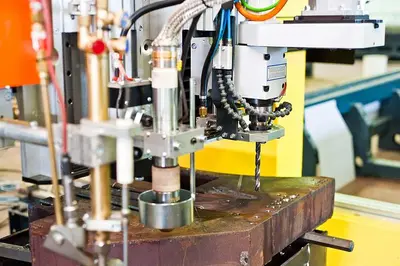

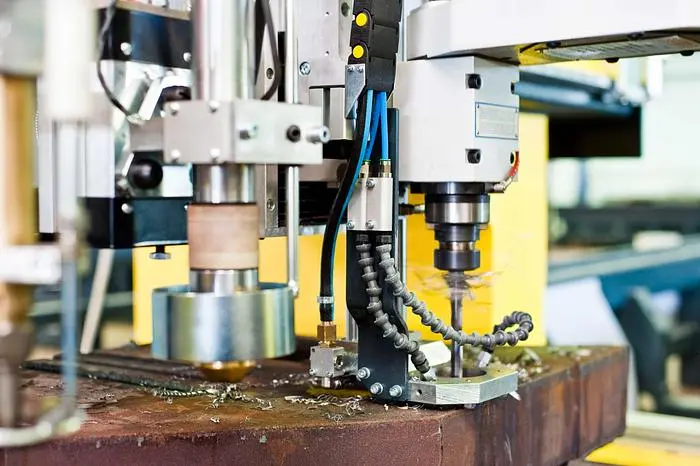

Drilling unit type: ISO 30 for pre-hole
Changing tools type: Manual or Pneumatic

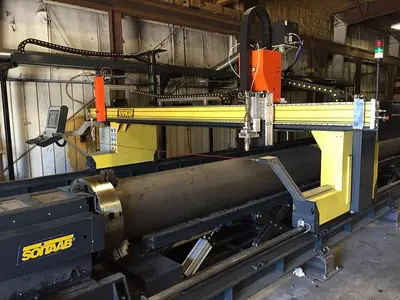

Tubocut type: Manual lifting
Pipe diameter: 3 in. - 20 in. (76mm-500mm)
Absolute coordinate: Optional
CNC type: SOITAAB II
Parametric Shape Library: Standard, up to 30 (optional from 31 to 78)
Data base (oxy + plasma): Optional
