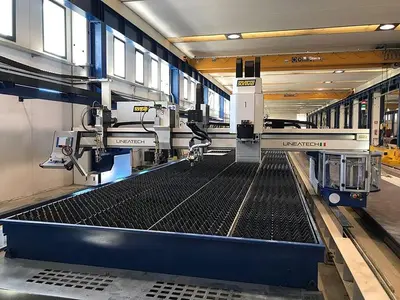

Main Features
Dual side drive with brushless motors and digital drives
Smooth tilted-tooth rack with preloaded spring assures accurate positioning with minimum backlash
Absolute machine position is held in memory
Cutting widths up to 26.3 ft. (8.0 m)
Cutting lengths up to 262.5 ft. (80.0 m)
Oxyfuel gas distribution valves fully managed by the CNC
Cutting parameter data base adjusts gas pressures and flows automatically, ensuring high quality cuts and holes
Automatic electronic ignition
Automatic height control with both internal and external capacitive probes
LCD control panel with 15 in TFT color touch screen
Max number of Master carriage -178 piece shape library with all cut parameters
Rail Span (Min-Max): 13 ft. up to 23 ft (4.0 m up to 7.0m)
Machine Length: 6.5 ft. (2.0 m)
Machine use length with 4 m rails: 6.5 ft. (2.0 m)
Longitudinal Rails Beam Support: HEB - STD 7 in (180 mm)
Transversal Beam Construction: Double
Transversal Guides: Roller-Bearing Guides
Rack: Helical Teeth
Longitudinal Motion: Dual Side Drives
Repositioning speed: 787 ipm (20 m/min)
Max number of Master carriage: 3
Max number of Slave carriage (plasma): 2

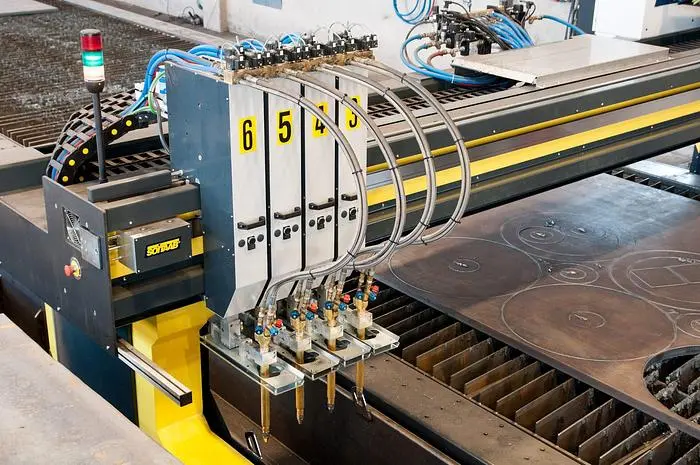

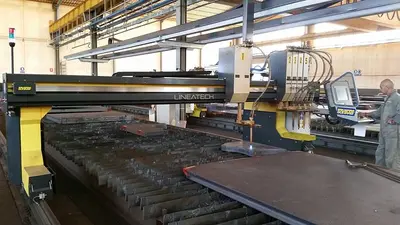

Max number of Slave carriage (oxy): 12
Double Master: 2 plasma + 1 oxy (or combination)
Gas Distribution (oxy): Automatic

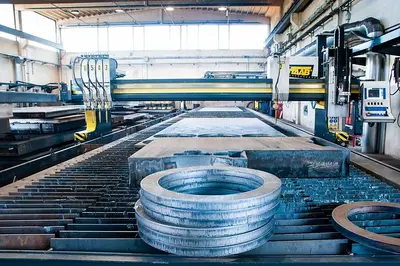

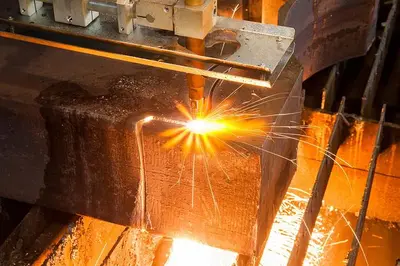

Maximum Cutting Thickness (oxy): 10 in – 12 in (250-300 mm)
Gas for Oxy Flame: Oxygen, propane, methane, acetylene

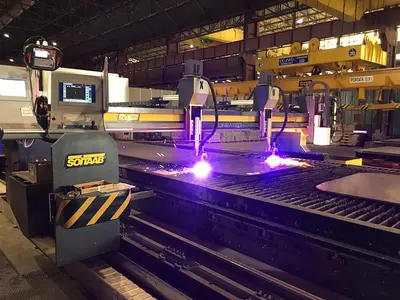

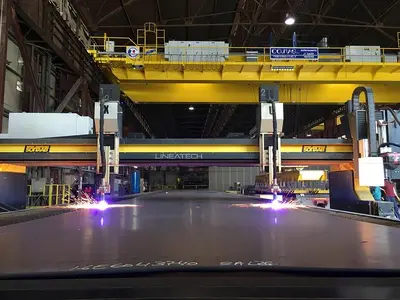

Max Plasma Power: Up to 800 Amps

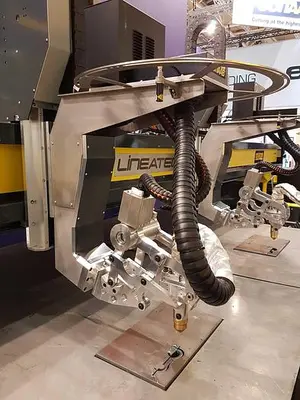

Plasma bevel: Yes
Oxy bevel: MR + -90°

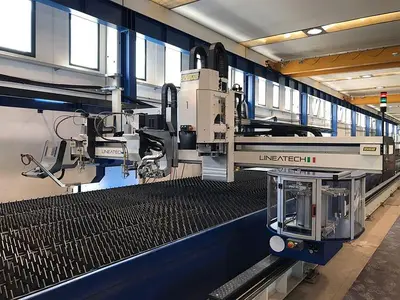

Drilling Unit Type: ISO 30 for prehole | ISO 40 internal cooling

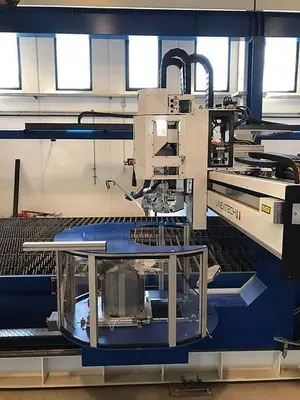

Tool Changer Type: Automatic (6 or 12)
Tubo-cut Type (pipe cutting): Manual lifting (automatic optional)
Pipe Diameter: 3 in - 25.5 in 76mm-650mm
