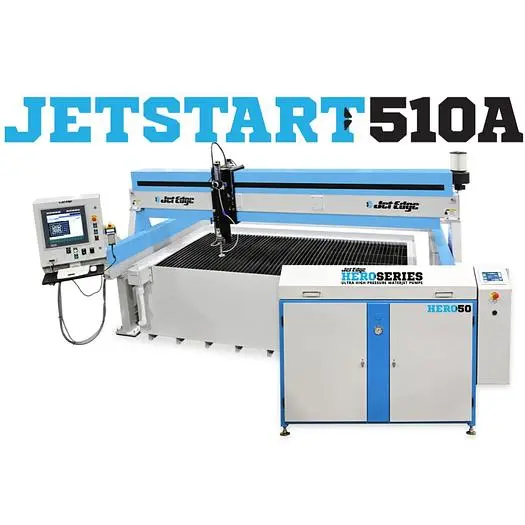

JET START 510A MID RAIL ABRASIVE WATERJET with HERO 50 Intensifier Pump

JET START 510A
MID RAIL ABRASIVE WATERJET
with
HERO 50 Intensifier Pump
The Jet Start 510A takes the no-nonsense workhorse 3-axis, 5′ x 10′ motion system and pairs it with Jet Edge’s HERO 50 intensifier pump that is loaded with features including Jet Smart controls. The result is an Abrasive Waterjet system capable of cutting complex parts from virtually any material with ultra-high precision. Jet Start your waterjet cutting operation with a Jet Start 510A Mid Rail Abrasive Waterjet system.
The Jet Start 510A waterjet cutting system includes a 3-axis abrasive cutting Z carriage, a rugged 5′ x 10′ isolated catcher tank, Jet Edge’s
HERO 50 Intensifier Pump
with Jet Smart Controls, IGEMS Software, an 800lb solid phase bulk hopper all with installation and training included.
Aquavision Di Controller for Windows 10
IGEMS Software with Nesting Program Upgrade
Motorized Z carriage for 12″ (304 mm) vertical travel height
Isolated Abrasive Catch Tank with Slat Kit
Full Featured Handheld Pendant
HERO 50 60k psi 50 hp intensifier pump
Remote Pump Start
800lb Solid Phase Bulk Hopper
Installation and Training included
Description
MOTION SYSTEM CONTROLS/ACCURACY
Aquavision DI fully-networkable, industrial PC controller
IGEMS CAD/CAM programming software with nesting upgrade
3-axis cutting with motorized Z carriage for 12″ (304 mm) vertical travel height
Full visibility and access to machine code
Isolated catch tank for high precision cutting
Full-featured hand-held pendant
Precision ball screws directly coupled to servo motors
±0.001″ linear positional accuracy over 12″ (304 mm) per axis
±0.001″ repeatability (bidirectional)
±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm)
HERO 50 INTENSIFIER PUMP
Rated pressure: 60,000 psi (4,100 bar)
UHP flow rate: 1.1 gpm (4.1 lpm)
Max rated orifice size 0.015 in (0.38 mm)
Single piston, dual plunger intensifier with tie rod design
Single, 1 quart (0.9 liters) attenuator
Incoming water control
MOTION SYSTEM CONFIGURATION OPTIONS
Servo driven Z carriage for vertical travel height control
Lights-out cutting package for unattended operation
High pressure water monitor and abrasive delivery monitor
Abrasive removal system
Laser surface mapping
Contact height sensor
Noise reduction with underwater cutting options
Splash shields
HERO 50 CONFIGURATION OPTIONS
Advanced pump control upgrade to
HERO 50+
Optional redundant intensifier
Optional boost pump
WARRANTY
1-year or 2,000-hour warranty
Extended warranties available
Lifetime
factory training
