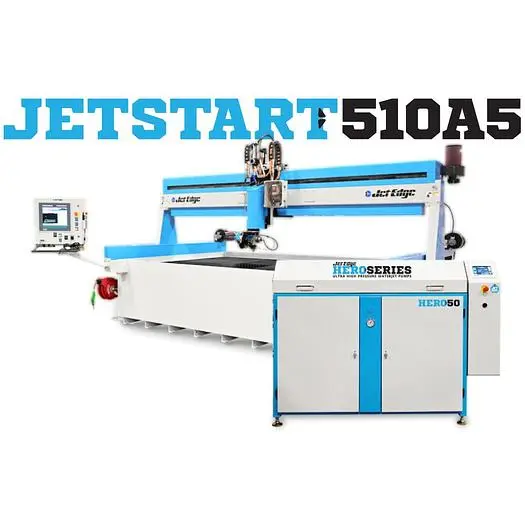

JET START 510A5 MID RAIL ABRASIVE WATERJET with HERO 50 Intensifier Pump

JET START 510A5
MID RAIL ABRASIVE WATERJET
with
HERO 50 Intensifier Pump
The Jet Start 510A5, 5-axis motion system launches you into complex, contoured cutting right from the start. Cut near-net shapes with edges beveled up to 60° with no taper in tough materials like stainless steel, Inconel, and titanium with no heat affected zone.
The Jet Start 510A5 package includes a 5-axis abrasive cutting Z carriage, a rugged 5′ x 10′ isolated catcher tank, Jet Edge’s
HERO 50 Intensifier Pump
with Jet Smart Controls, IGEMS Software, an 800lb solid phase bulk hopper all with installation and training included.
Aquavision Di Controller for Windows 10
IGEMS Software with Nesting Program Upgrade
Servoed Z Package
Isolated Abrasive Catch Tank with Slat Kit
Full Featured Handheld Pendant
HERO 50 60k psi 50 hp intensifier pump
Remote Pump Start
800lb Solid Phase Bulk Hopper
Installation and Training included
Description
MOTION SYSTEM CONTROLS/ACCURACY
Aquavision DI fully networkable, industrial PC controller
IGEMS CAD/CAM programming software with nesting upgrade
5-axis cutting head can cut bevels to 60° taper free
Servo driven Z carriage with 12″ (304 mm) vertical travel height
Full visibility and access to machine code
Isolated catch tank for high precision cutting
Full-featured hand-held pendant
Precision ball screws directly coupled to servo motors
±0.001″ linear positional accuracy over 12″ (304 mm) per axis
±0.001″ repeatability (bidirectional)
±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm)
HERO 50 INTENSIFIER PUMP
Rated pressure: 60,000 psi (4,100 bar)
UHP flow rate: 1.1 gpm (4.1 lpm)
Max rated orifice size 0.015 in (0.38 mm)
Single piston, dual plunger intensifier with tie rod design
Single, 1 quart (0.9 liters) attenuator
Incoming water control
MOTION SYSTEM CONFIGURATION OPTIONS
Lights-out cutting package for unattended operation
High pressure water monitor and abrasive delivery monitor
Abrasive removal system
Laser surface mapping
Contact height sensor
Noise reduction with underwater cutting options
Splash shields
HERO 50 CONFIGURATION OPTIONS
Advanced pump control upgrade to
HERO 50+
Optional redundant intensifier
Optional boost pump
WARRANTY
1-year or 2,000-hour warranty
Extended warranties available
Lifetime
factory training
