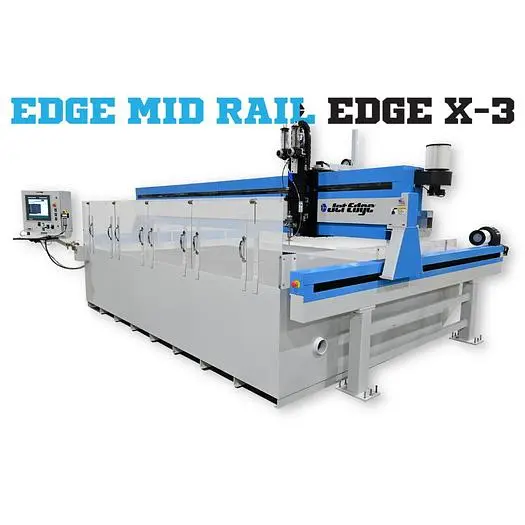

Edge X-3 Mid Rail Gantry Waterjet Cutting Machine

EDGE X-3
3-AXIS MID RAIL WATERJET
with Aquavision DI Controller
The Edge X-3 Mid Rail Gantry 3-axis water jet cutter is the no-nonsense workhorse of the Jet Edge line. Its 3-axis cutting capabilities excel at high-speed waterjet cutting and abrasivejet cutting and offers a slew of customization options. Paired with a Jet Edge HERO Series UHP Pump you have a committed cutting team!
Isolated catch tank for accuracy
Cut with water or abrasive
Multiple Configuration Options including independently programmable
Dual Z Carriages
Adjustable pre-loaded anti-backlash recirculating ball screws
Linear bearings, hardened precision ground ways
Protected critical bearing components with labyrinth seals and positive air pressure
Direct-couple, AC brushless servo motors with absolute encoders
Technical service and free lifetime
factory training
Description
CONTROLS/ACCURACY
Aquavision DI fully networkable, industrial PC controller
IGEMS CAD/CAM programming software
3-axis waterjet or abrasivejet cutting with motorized Z carriage for 12″ (304 mm) vertical travel height
Full visibility and access to machine code
Isolated catch tank for high precision cutting
Full-featured hand-held pendant
Precision ball screws directly coupled to servo motors
±0.001″ linear positional accuracy over 12″ (304 mm) per axis
±0.001″ repeatability (bidirectional)
±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm)
Factory set ranges of 500–750 IPM rapid positioning based upon application
CONFIGURATION OPTIONS
Waterjet or Abrasive Waterjet cutting heads
Servo driven Z carriage for vertical travel height control
Optional Z carriage with 18″ vertical travel
Upgradeable to the
Edge Dual Carriage
with independently programmable secondary Z carriage
IGEMS Nesting Software with common line cut capabilities
Lights-out cutting package for unattended operation
High pressure water and abrasive delivery monitors
Laser surface mapping
Contact height sensor
Dual Mini Hoppers for quick garnet changeover
Noise reduction with underwater cutting options
Stainless steel catcher tank and slat kits
Splash shields
Light curtains
WARRANTY
1-year or 2,000-hour warranty
Extended warranties available
Lifetime
factory training
