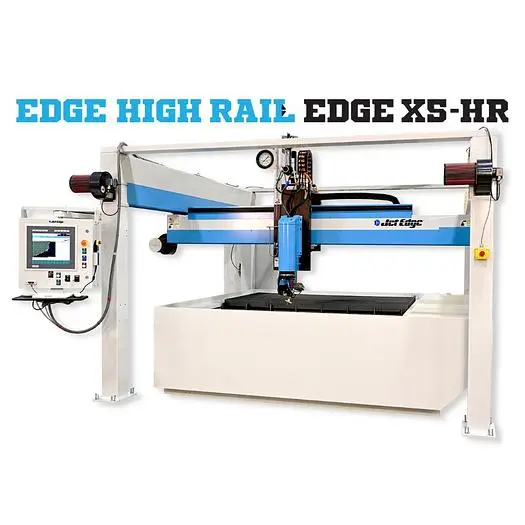

EDGE X5 HR

EDGE X5-HR
HIGH RAIL GANTRY 5 AXIS WATERJET
with
with Aquavision DI Controller
There are many benefits to a
High Rail Waterjet Machine
. First of all, it opens the work envelope for easier access, and the overhead design raises critical components out of the processing environment. The isolated motion system and rigid steel beams make this the most accurate waterjet cutter on the market. Incorporating the 5-axis cutting head into your Edge X5-HR system allows you to bevel cut angles to 60° in the
hardest materials
with a taper-free finish.
Aerospace
, contract manufacturing and
highly specialized applications
companies that require accuracy, repeatability and high machine uptime from their abrasive cutting have found their system.  Click on the links to learn more about
Custom Applications
and
Custom Configurations
.
Easy-access work envelope
Motion components protected from harsh process environment
5-axis cutting head can cut bevels to 60° and eliminate tapers
Programable Z carriage with servo motor driven 12″ (304 mm) vertical travel height
Multiple Configuration Options including integrated fixtures and lights out cutting
Isolated catch tank for the highest precision
Adjustable pre-loaded anti-backlash recirculating ball screws
Linear bearings, hardened precision ground ways
Protected critical bearing components with labyrinth seals and positive air pressure
Direct-couple, AC brushless servo motors with absolute encoders
Technical service and free lifetime
factory training
Description
CONTROLS/ACCURACY
Aquavision DI fully networkable, industrial PC controller
IGEMS CAD/CAM programming software
5-axis cutting head can cut bevels to 60° taper free
Servo driven Z carriage with 12″ (304 mm) vertical travel height
Full visibility and access to machine code
Isolated catch tank for high precision cutting
Full-featured hand-held pendant
Precision ball screws directly coupled to servo motors
±0.001″ linear positional accuracy over 12″ (304 mm) per axis
±0.001″ repeatability (bidirectional)
±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm)
CONFIGURATION OPTIONS
IGEMS Nesting Software with common line cut capabilities
Integrated fixturing for accuracy and quick parts change
Optional Z carriage with 18″ and 24″ vertical travel
Lights-out cutting package for unattended operation
Contact height sensor
High pressure water and abrasive delivery monitors
Laser surface mapping
Noise reduction with underwater cutting options
Splash shields
Light curtains
WARRANTY
1-year or 2,000-hour warranty
Extended warranties available
Lifetime
factory training
