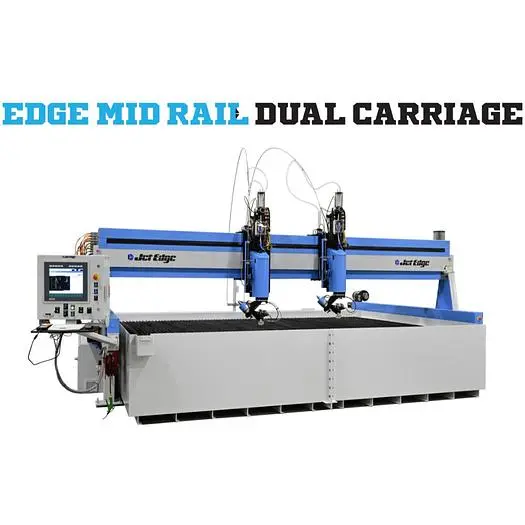

Edge Dual Carriage Mid Rail Waterjet

EDGE DUAL CARRIAGE
MID RAIL WATERJET
with Aquavision DI Controller
The Edge Dual Carriage waterjet cutting machine is for those who demand both accuracy and productivity from their investment. The dual Z carriages operate independently so they can be programmed to double team a single part or cut two like parts simultaneously. Boasting ±0.001″ linear positional accuracy over 12″ (304 mm) per axis, ±0.001″ repeatability (bidirectional) and ±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm), means never giving up on precision again.
Specify 3-axis cutting heads, 5-axis cutting heads or one of each
Independently driven, dual Z carriages can cut a single part together or two like parts simultaneously
5-axis cutting head can cut bevels to 60° and eliminate tapers
Programable Z carriage with servo motor driven 12″ (304 mm) vertical travel height
Multiple accessory options to further increase productivity
Isolated catch tank for the highest precision
Adjustable pre-loaded anti-backlash recirculating ball screws
Protected critical bearing components with labyrinth seals and positive air pressure
Technical service and free lifetime
factory training
Description
CONTROLS/ACCURACY
Aquavision DI fully networkable, industrial PC controller
Dual Z Carriages are independently programmable
5-axis cutting head cuts bevels to 60° taper free mounted to a servo motor driven Z carriage with 12″ (304 mm) vertical travel height
3-axis cutting head mounted to a motorized Z carriage with 12″ (304 mm) vertical travel height
IGEMS CAD/CAM programming software
Digital readout for multi-head positioning
Full visibility and access to machine code
Isolated catch tank for high precision cutting
Full-featured hand-held pendant
Precision ball screws directly coupled to servo motors
±0.001″ linear positional accuracy over 12″ (304 mm) per axis
±0.001″ repeatability (bidirectional)
±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm)
CONFIGURATION OPTIONS
Specify two 3-axis or two 5-axis cutting heads or one of each
3-axis cutting heads mounted to servo driven Z carriage for vertical travel height control
IGEMS Nesting Software with common line cut capabilities
Lights-out cutting package for unattended operation
High pressure water monitor and abrasive delivery monitor
Laser surface mapping
Contact height sensor
Noise reduction with underwater cutting options
Stainless steel catcher tank and slat kits
Splash shields
Light curtains
WARRANTY
1-year or 2,000-hour pump warranty
Extended warranties available.
Lifetime
factory training
