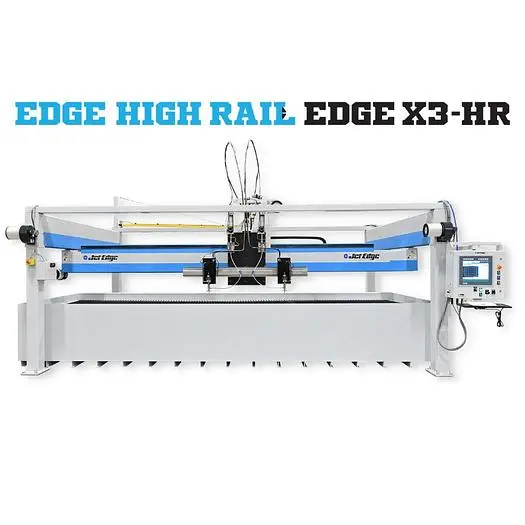

EDGE X3-HR
HIGH RAIL GANTRY 3-AXIS WATERJET
with
with Aquavision DI Controller
The Edge X3-HR, 3-Axis
High Rail Water Jet Cutter
opens up the work envelope for easier access and the overhead design raises critical components out of the processing environment. The Edge X3-HR is designed for high speed processing. By attaching a precision machined Spreader Bar to the Z Carriage, up to ten sub-Z cutting heads can be mounted allowing you to cut ten identical parts in one cycle. Each independently controlled Sub Z can utilize a water only cutting head or abrasive cutting head. Heads can be positioned manually or positioned automatically via your program. Incorporate load/unload systems for even higher efficiency levels as parts unloading is done while the water jet is cutting its next job. Click on the links to learn more about
Custom Applications
and
Custom Configurations
.
3-axis waterjet or abrasivejet cutting
Independently programmable Sub Z’s
Isolated catch tank for accuracy
Adjustable pre-loaded anti-backlash recirculating ball screws
Linear bearings, hardened precision ground ways
Protected critical bearing components with labyrinth seals and positive air pressure
Direct-couple, AC brushless servo motors with absolute encoders
Technical service and free lifetime
factory training
Description
CONTROLS/ACCURACY
Aquavision DI fully networkable, industrial PC controller
IGEMS CAD/CAM programming software
3-axis waterjet or abrasivejet cutting with motorized Z carriage for 12″ (304 mm) vertical travel height
Full visibility and access to machine code
Isolated catch tank for high precision cutting
Full-featured hand-held pendant
Precision ball screws directly coupled to servo motors
±0.001″ linear positional accuracy over 12″ (304 mm) per axis
±0.001″ repeatability (bidirectional)
±0.003″ renishaw ballbar tests of squareness and straightness over 24″ (608 mm)
WARRANTY
1-year or 2,000-hour warranty
Extended warranties available
Lifetime
factory training
CONFIGURATION OPTIONS
Spreader bar with up to 10 Sub Z’s
Waterjet and Abrasive Waterjet cutting heads can be mixed and matched.
Auto or manual Sub Z positioning with digital readout
Motorized Sub Z’ with 3” additional travel
Servo driven Z carriage for vertical travel control
Optional Z carriage with 18″ and 24″ vertical travel
IGEMS Nesting Software with common line cut capabilities
Lights-out cutting package for unattended operation
High pressure water and abrasive delivery monitors
Laser surface mapping
Noise reduction with underwater cutting options
Splash shields
Light curtains
Shuttle systems and conveyors for material load/unload
