Main Features
Dual side drives with brushless motors and gantry control
Rack and pinion drive system
Linear guides on longitudinal axis and transverse beam
Self lubrication system for all guides
Bellows protection on all axis, including double bellows protection on longitudinal axis, inner bellows covers linear guideways, and external bellows covers internal bellows
Stainless steel water and abrasive catcher
Pressurized two-stage abrasive metering system
Water table tank with manual water level controls
Ready for future installation of an abrasive removal system
Cutting table parameters with quality selections from 1 to 5
Working area: 5ft. x 10ft. up to 10ft. x 40ft.
Motors (x, y, z): Brushless
Driver (x, y, z): digital
Positioning speed: 1575 ipm (40 m/min)
Positioning accuracy: + - 0,1 mm/m
Repeatability: + - 0,5 mm/m
CNC: Soitaab CNC
Monitor: 15 in LCD touch screen
Data Communication: USB - Ethernet - LAN

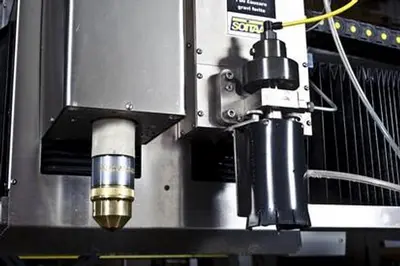

Cutting technologies: Water-jet with abrasive and plasma
Carriage stroke (z): 8 in (optional 12 in) | 200 mm (optional 300 mm)
