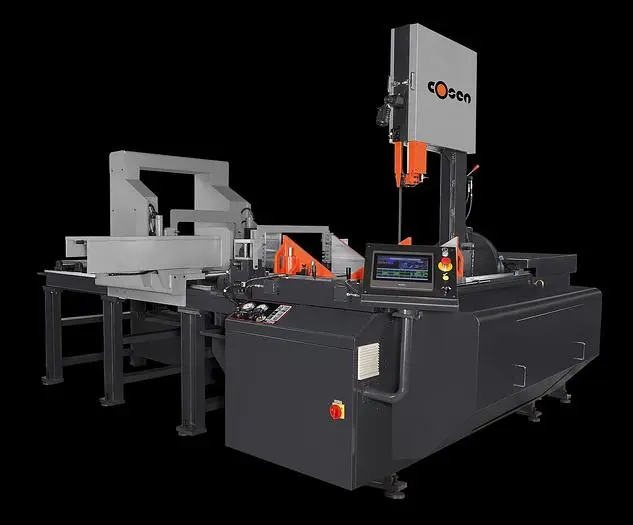

Structure
Hydraulic tilt-frame head for +/- 60 degree miter cutting. Adjustable head cant from 0 to 5 degrees. Adjustable cast iron guide arm
Mechanics
Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush
Blade
Inverter blade drive system which allows infinitely variable blade speeds. Hydraulic blade tensioning system. Carbide blade guides and bearings. Cosen's Save-A-Blade feature
Coolant
Adjustable flood coolant system
Vising
Cast iron hydraulic vises
Interface
5.7" HMI touchscreen system that allows for controlled multiple indexing of material up to 999" in length. 54" single stroke indexing (Ball screw)
| Weight | 8,518 lbs | 8,518 lbs |
Capacity Angle: 0° 45° Left 60° Left 45° Right 60° Right
Capacity (0° Blade Cant): 20" x 26.3" 20" x 18.1" 20" x 12.2" 20" x 16.5" 20" x 11.2"
Capacity (5° Blade Cant): 20" x 24.8" 20" x 16.9" 20" x 11.4" 20" x 14.9" 20" x 9"
Blade Speed: 66 - 328 FPM
Blade Size (LxWxT): 17' 1.9" x 1.25" x .042
Blade Motor: 7.5 HP
Coolant Motor: 1/4 HP
Coolant Tank Capacity: 34.3 gal
Hydraulic Tank Capacity: 22.4 gal
Workbed Height: 40.5"
Floorspace (LxWxH): 205" x 147" 102"
