LEBLOND 19 REGAL engine lathe, used condition. Features 19" swing, 82" between centers, and 3" spindle bore. Equipped with taper attachment and 6-jaw chuck. Robust 7.5 HP motor ensures performance across 12 spindle speeds up to 1600 RPM.
| Swing | 19" | 482.6 mm |
| Centers | 78" | 1,981.2 mm |
| Spindle Bore | 3" | 76.2 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 11" | 279.4 mm |
LEBLOND Regal Servo Shift Engine Lathe 19" x 82" w/ 3" Spindle Thru #8208 #1
SPECIFICATIONS:
Swing over Bed & Carriage Ways: 19 1/4”
Swing over Cross Slide: 12 1/4”
Distance Between Centers: 82”
Spindle Speeds (12): 25-1600 RPM
Spindle Bore: 3"
Bed Length: 10’3”
Bed Width: 14 3/8”
Bed Depth: 11 1/2”
Carriage Length on Bed: 21”
Cross Slide Travel: 11 1/4”
Feeds (48): .0023 – .123
Threads (48): 2 – 112

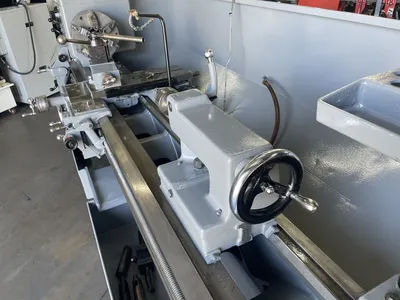

Tailstock Length on Bed: 12 ¾”
Motor 7 1/2 HP, 1800 RPM
Approx. Floor Space 137” x 50”
EQUIPPED WITH:
Taper Attachment
6-Jaw Chuck
