LEBLOND MAKINO Regal Servo Shift Engine Lathe, used condition. Features a 15" swing, 54" centers, 2.27" spindle bore, 7.5 hp power, and 1,800 RPM. Ideal for precision machining with a 9.5" swing over cross slide.
| Swing | 15" | 381 mm |
| Centers | 32" | 812.8 mm |
| Spindle Bore | 2.25" | 57.15 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 9" | 228.6 mm |

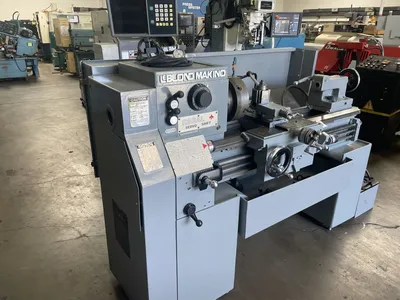

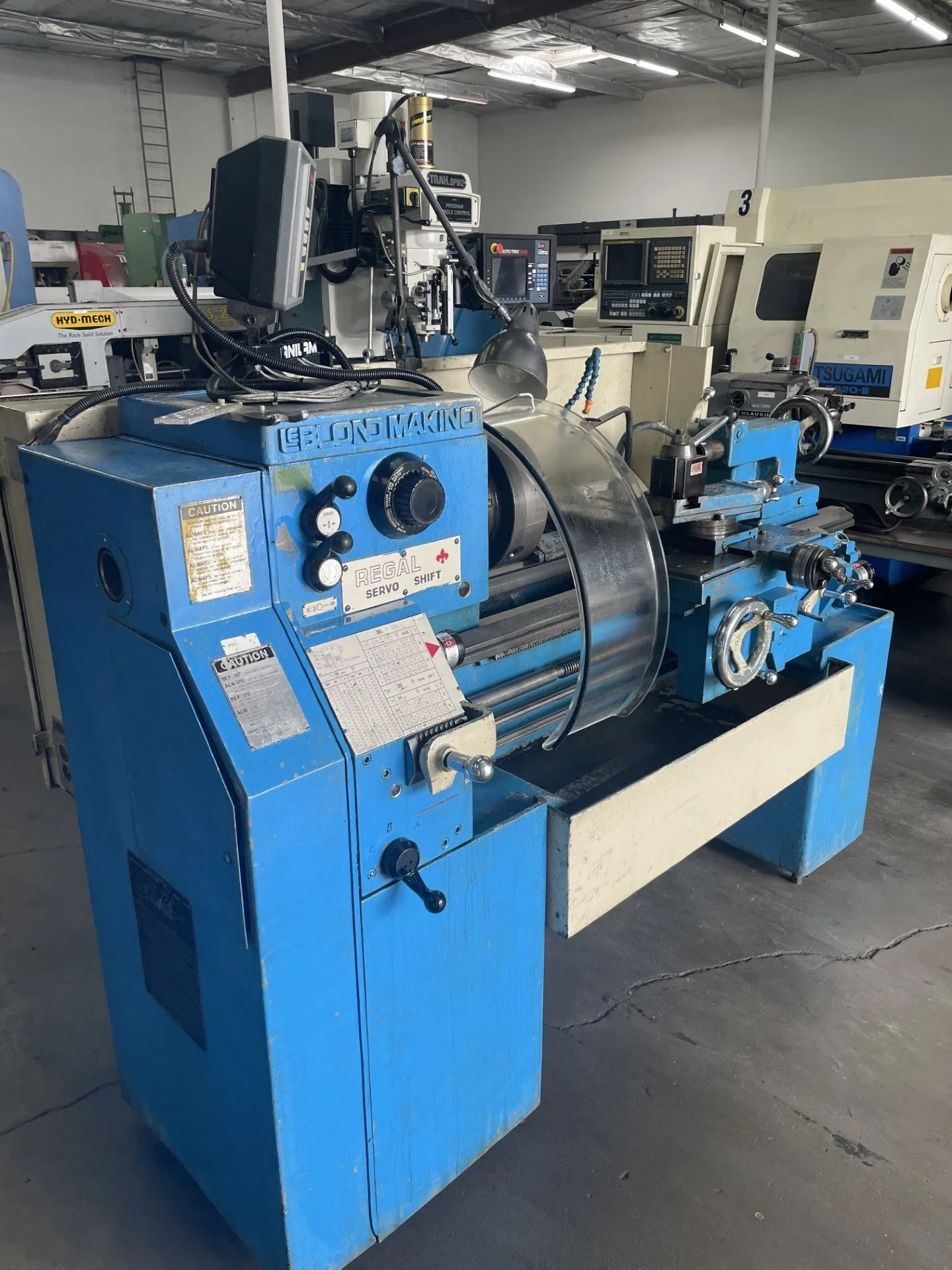

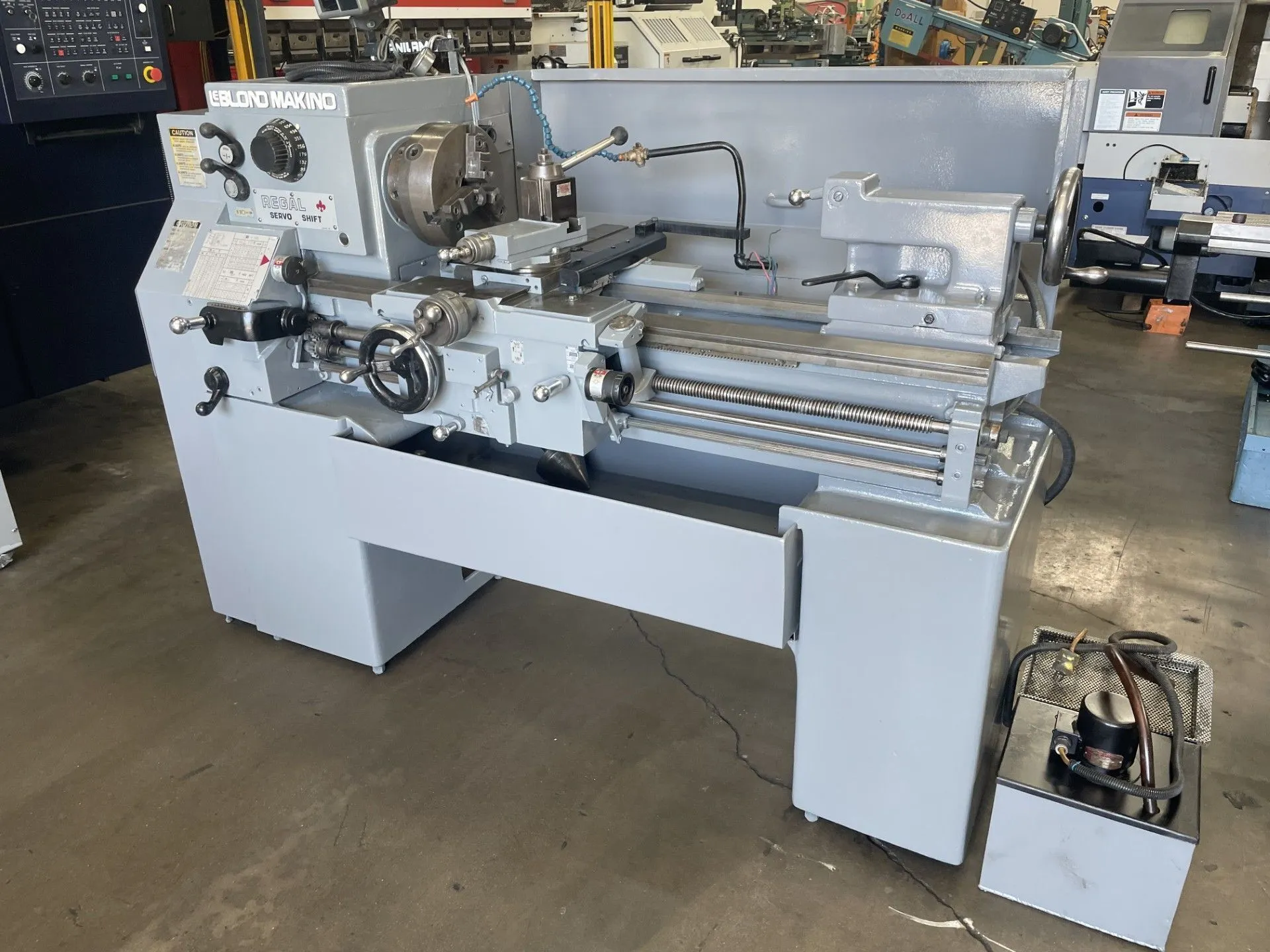

LEBLOND MAKINO Regal Servo Shift Engine Lathe #8207 #1
SPECIFICATIONS:
Max Swing Over Ways: 15"
Max Swing Over Cross Slide: 9"
Max Center Distance: 32"
Drive Motor: 7.5 HP
Spindle Speeds: (12) 45 - 1,800 RPM
Spindle Mount: D1 Camlock Spindle
Tailstock Quill Travel: 5"
Tailstock Quill Taper: #4MT
Hole Thru Spindle: 2.25"
Threading Capacities: Inch / Metric Threading
EQUIPPED WITH:
Anilam Wizard 450L Digital Read Out
Taper Attachment
3-Jaw Chuck

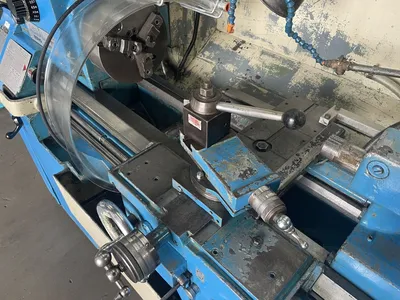

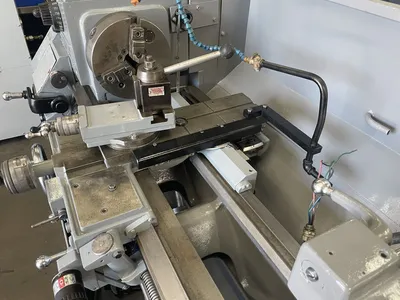

Aloris Tool Post

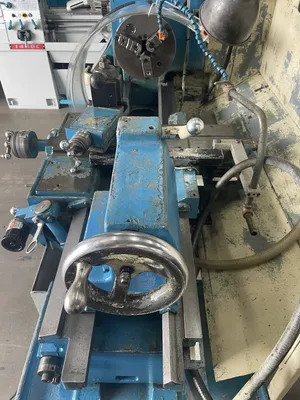

Tailstock
