N/ACarver GHF-BAD-316SS Pumps, Qty 2

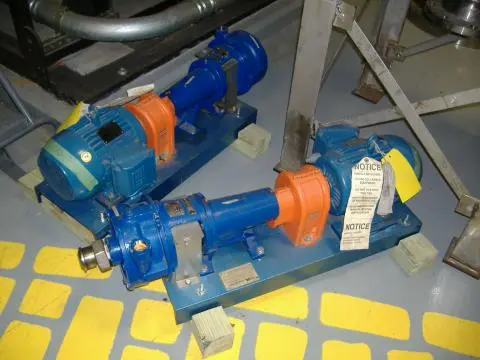

Qty 2: Carver GHF-BAD-316SS 1.25x1x7 End Suction Centrifugal Pumps

GH: General Horizontal Series Pump, S/N: 188104-1A & -1B

F: Frame Mounted Style

BA: Casing Nozzle and Impeller Size: 1.25 x 1 x 7

1.25" NPT Suction, 1" NPT Discharge, 5.4375" Dia. Impeller

Rated: 30 GPM @ 116' TDH

D: Construction: All 316 SS Wetted

with Special Carbon VS Silicone Carbide Cartridge Seal

Includes: Base, Coupling & Guard.

Discharge Type: Tangential, Max. Solids: 0.187"

Casing Volute: Single, Connection Type: NPT

Bearing Frame: 10P, Impeller Type: Enclosed

Max. RPM: 3500, Max/Min Diameter: 7.0"/4.5"

Specific Speed Ns: 703, Suction Sp. Speed Nss: 2,582

WEG 3 HP W22 NEMA Premium, TEFC Motor, 230/460V/60Hz/3Ph,

RPM: 3510, Frame: 182T, Date: March 23, 2012
