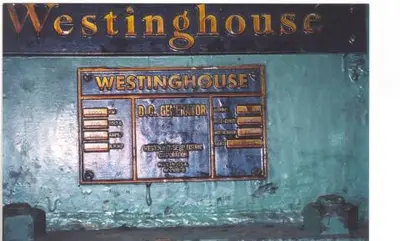

Westinghouse2 MW DC Generator Ends

Qty 2: Westinghouse 2 MW DC Generator Ends

•2,000 KW

•514 RPM

•Max DC Volts: 700 VDC

•2860 Amps

•Direct Current

•80 C Temperature Rise

•100% Load, 24 Hours Continuous Duty

•Pedestal Bearings

•Instruction Book 5411

•Total Weight: 39,240 pounds each

•Condition: used

---------------------

There are (2) identical units available and in stock.

Weights:

Generator Rotor including shaft: 13,800 pounds

Generator Stator with End Bells: 23,350 pounds

Pedestal Bearings #1 and #4: 2,090 pounds

Total Weight (approximate): 39,240 pounds
