PRESSMASTER CFP-12 Hydraulic C-Frame Press in used condition. Key specs include 12-ton tonnage and 18" daylight. Ideal for demanding tasks, delivering reliable performance and efficiency.
| Tonnage | 12 T | 10.886 t |
| Stroke | 12" | 304.8 mm |
| Daylight | 18" | 457.2 mm |
| Power | 5 hp | 3.7 kW |
| Bed W | 21" | 533.4 mm |
| Bed L | 16" | 406.4 mm |
| IPM | 44 ipm |

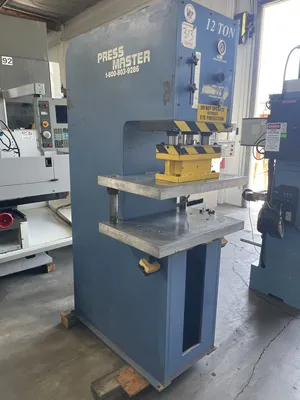

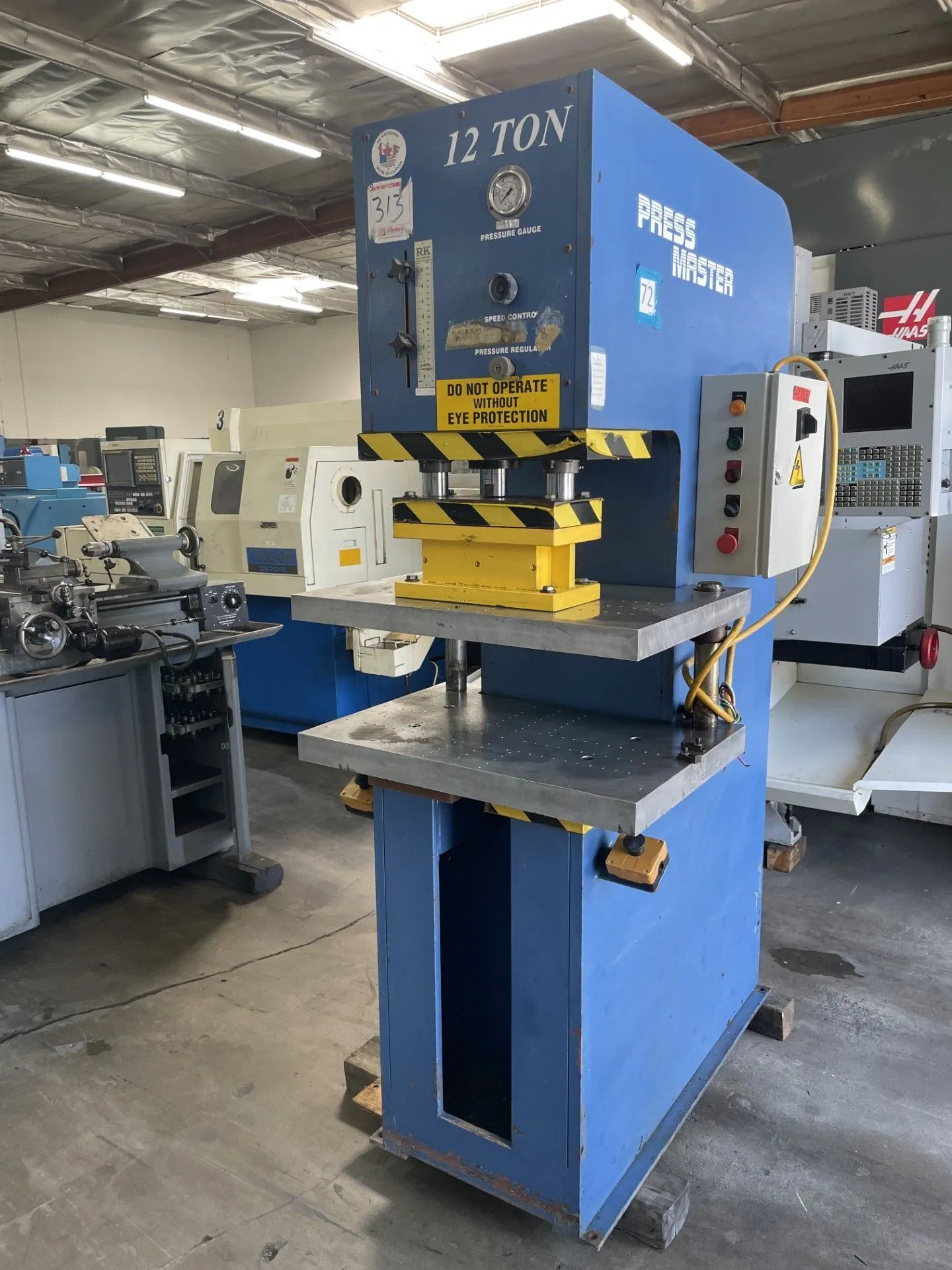

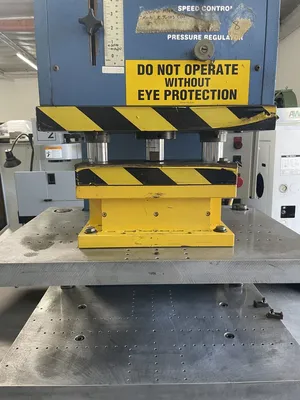

PRESSMASTER CFP-12 Hydraulic C-Frame Press #8204 #1
SPECIFICATIONS:
TONS OF FORCE ......(MAX).............. 12 TONS
APPROACH SPEED ........................ 186 IPM
PRESS SPEED ........................... 44 IPM
RETURN SPEED .......................... 269 IPM
TABLE ..............(LR X FB).......... 21" X 16"
DAYLIGHT .............................. 18"
MAX. STROKE ADJUSTABLE ................ 12"
THROAT ................................ 11"
U-SLOT OPENING ........................ 4"
FLOOR TO TABLE ........................ 36"
FRONT TO BACK ......................... 46"
HEIGHT (OVERALL) ...................... 87"
CLEARANCE ............................. 6"
WIDTH ................................. 26"
UPPER PLATEN .......(LR X FB).......... 21" X 16"
MOTOR HP @ 1750 RPM ................... 5 HP
VOLTAGE AVAILABLE ..................... 230v / 3 PH
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
