VoithMSM 05/05

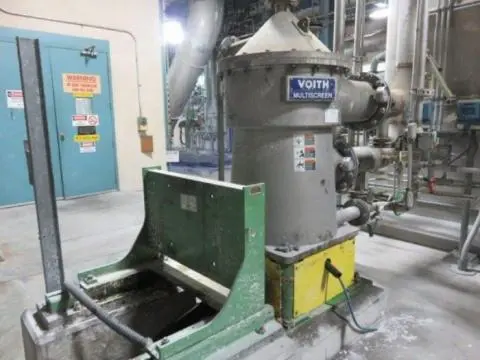

Used Voith MST 05/05 pressure screen, new 2005. Serial #28982. With stainless steel body and cone type bolt-on top cover. Motor base, no motor.

STOCK TO BE HANDLED: 55% HW, 35% SW, 10% Broke CONSISTENCY: 3.8% FREENESS: CSF

DESIGN CAPACITY: 162 BDSTPD 147 BDMTPD DESIGN FLOW: 846 USGPM 3203 LPM

SCREEN FED BY: SEAL TYPE: Chesterton 891 PRESSURE RATING: 87 PSI

SLOT WIDTH.: 0.008″ IN 0.2 MM 20º ANGLE

ROTOR SPEED 1085 RPM ROTOR P/N: 139083

WETTED PARTS: 316 WELDED 316L
