VoithMSM 05/05

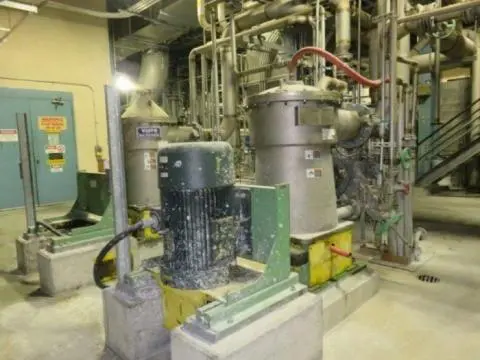

Used Voith MSM 05/05 pressure screen, new 2005. Serial #28981. Stainless steel body and bolt-on top cover. 100 HP Toshiba motor, 575 volt.

STOCK TO BE HANDLED: 55% HW, 35% SW, 10% Broke CONSISTENCY: 3.8% FREENESS: CSF

DESIGN CAPACITY: 162 BDSTPD 147 BDMTPD DESIGN FLOW: 846 USGPM 3203 LPM

SCREEN FED BY: SEAL TYPE: Chesterton 891 PRESSURE RATING: 87 PSI

SLOT WIDTH.: 0.008″ IN 0.2 MM 20º ANGLE

ROTOR SPEED 1085 RPM ROTOR P/N: 139083

WETTED PARTS: 316 WELDED 316L

DRIVE BY: Voith V-BELT/POWERBAND NO. 5VX1180 C.D.: 41..2″

MOTOR SHEAVE: 5 GR 5 V 8.5″ O.D. BORE: 2.88″ KW: 0.5″

DRIVEN SHEAVE: 5 GR 5 V 14.0″ O.D. BORE: 70 mm KW: 20 mm
