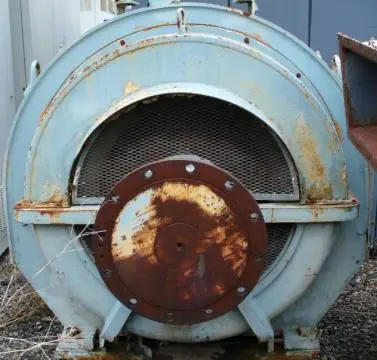

N/AE-M Synchronous Electric Motor

Qty 3 Electric-Machinery 900 HP Synchronous Electric Motors

900 HP

900 RPM

2300/4160 VAC

177/108 Amps

3 Phase

60 Cycle

Frame 5300

Type BRKT

Service Factor 1.15

Power Factor 1.0

Brushless Exciter

Enclosure DRIP

Bearings Sleeve

Instruction Book: 60

Exciter Volts: 125 VDC

Exciter Amps: 33.0

Made in Minneapolis, MN USA

Weight = 10,500 pounds

Dimensions:

Shaft Diamtr - U = 5.50"

Shaft Length - V = 11.00"

Shaft Height - D = 28.00" (Centerline of Shaft to mounting feet)

Mounting Feet - 2E= 41.00"

Mounting Feet - 2F= 27.00"

See attached Outline Drawings for complete details.
