Manufacturer VOITH
Model LBM
Year 2002
Condition Used

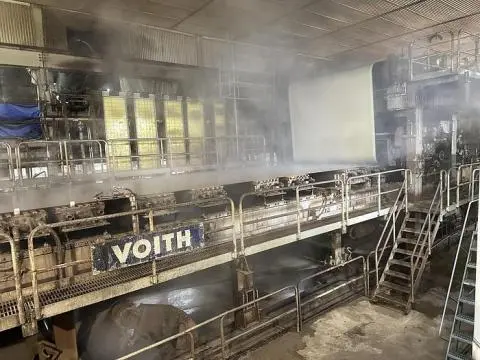

Used Voith Board Paper Machine
Size 134"
Trim 113.4"
Description
Basis Weight Range: 200-600 g/m2
Wire Width: 134.0" (3403.6 mm)
Reel Trim: 113.4" (2880 mm)
Structural Design Speed: 2,000 FPM
Drive Speed: 1500 FPM
Voith Fourdrinier, 960" C/L Breast Roll to C/L Suction Couch Roll, Hydraulic Headbox, Duoformer Top Dewatering Unit, Felted Lumpbreaker Section with Dual Lumpbreaker Rolls, 5200 PLI Double Felted 1st Press, 5200 PLI Single Felted 2nd Press, Enclosed Dryer Hood, (34) 72" Diameter 150 PSI Coded Dryers, Top and Bottom Dryer Felts, Reel, Beloit Winder, (6) Nash 904 Vacuum Pumps, (30) Goulds Pumps, 2019 ABB A/C Machine Drives, Beloit 4600 Series 42" Refiner, (3) Voith Approach Flow Screens, Piping, Instrumentation, Valves, Tank Agitators
Currently, the drive system is set to operate at a maximum speed of 1,500 feet per minute (ft/min). While the drives were initially designed to accommodate a future maximum speed of 2,000 ft/min, some components may require motor or gearbox replacements to reach that speed.
| Dimensions | 113.4" (2880mm) | 113.4" (2880mm) |
