N/AAUMA SA07.5-216B Electric Valve Actuators

AUMA Electric Valve Actuator Model: SA07.5-216B, Motor Model: AD63-2/80, Phase: 3-PHASE, Voltage: 460/60, Duty (min.): 15, HP: 1, RPM: 3360, NEC: C , FLA (amps): 1.7, LRA (amps): 9, Operating Time (sec): 111, Stroke: 360 Degrees, Turns: 400, Direction to close: CW, Output RPM: 216, Output Drive Type: 'B' Nut - SA07.5, NEMA 4X, 4 GTLS 3 Stage, POT 5K Mylar with RWG-2 SA393.51-467.5 Turns=Reduction 725:1, Std. Temp. -20 F TO +175 F, 110V-250V Control Unit Heater, Handsheel 6.3" SA07 Standard, Graduated MDPI (S), AUMA Standard Silver-Gray Acrolon 2, MDPI Graduated 0-100% in 10% Increments, SS Namplates

------------------------

Motor Controls: AUMA MATIC w/110V Interface

Disconnect: 40 Amp

Interface: 115VAC No Emergency Mech. Start

Starter Size: A 110V without OL

SMALL MATIC HOUSING 100MM

460 Volt 3 Phase with Power Supply 115V

AUMA Std. Silver-Gray Acrolon 2

PB-3 SS-3POS Aux. Contact Lockable

P&S, CB/DISC W/O Capacitor

Conduit Entries: (1) 1-1/4" NPT + (2) 3/4" NPT

Open: Limit switch, Closed: Limit switch

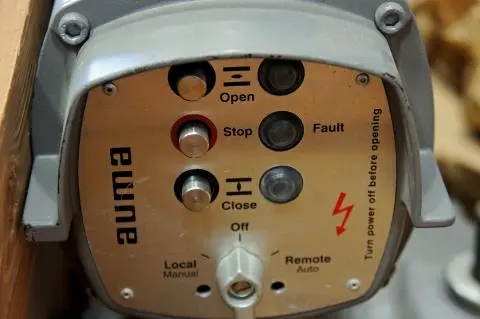

Faceplate:

Pushbuttons: Open, Stop, Close

Selector Switch: Local, Off, Remote

Lights: Open, Fault, Closed (Red, Amber, Green)

--------------------------------------------

NEW SURPLUS. Qty 3 Available.
