N/AAlfa Laval M15-MFG

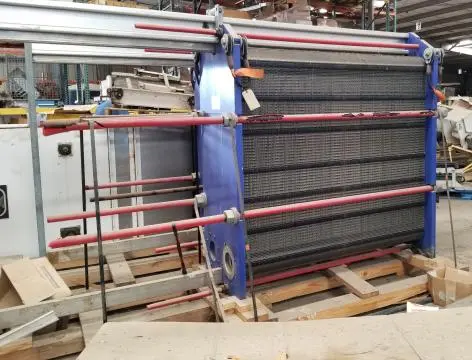

Alfa Laval M15-MFG Plate & Frame Heat Exchangers, Qty 2

Model: M15-MFG

Year: 2009, NB #

MAWP: 150 FV PSI @ 280 F

MDMT: -20F @ 150 FV PSI

Area: 2429.00 SQ-FT

A-Dim: 1634MM (64.33") w/367 0.50MM Plates

Dimensions: 25.6"W x 76.4"H x 128.2"L

Connection Material: Stainless Steel (Hot/Cold Side)

Plates: Single, Qty: 367, Free Channel: 0.16" (4.0mm)

Plate Material: Alloy 316, Thickness: 0.50mm

Gaskets: EPDMP Clip-ON

Net Weight: 4959 lbs., w/H2O: 6923 lbs
