USED Koenig Koenig Combi Line KCL7

Refurbished Koenig Combi Line KCL 7

Item 1

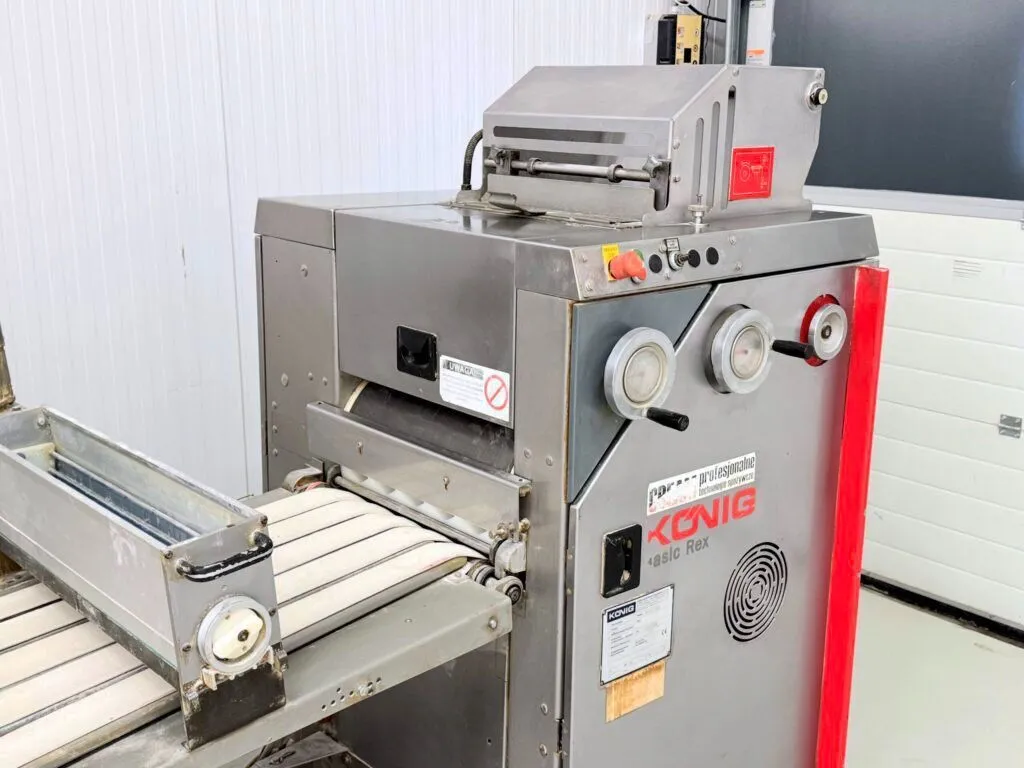

1) Koenig Rex Basic Head Machine, Model T 5/ 4/ 3 S-MKB/ Currently SK67 (55-120 gr)

* Five (5) Four (4) Three (3) Row operation
* Max Hourly Capacity to 7,500 pieces at 25 strokes per minute for the 5 Row Operation
* Approx. 55 to 120 grams, Dependent on Dough Formula
* Standard Feed Hopper
* Adjustable rounding pressure
* Dis-connectable Rounding Action
* Operation via Siemens SPS control and * Voltage – 220V / 60 Hz
* Working width 600 mm
* Driven Bottom Belt RR

item 3

1) Pre prover VG 190/230

* Nominal Width 600 mm
* Approx. 190 Fillable Swings for a Resting Time of approx. 7.6 Minutes at Adjusted 25 Strokes/Min
* Continuous Swings, Coated with Felt, type SL
* Climatisation Unit (Heating and Humidity)
* Sterilisation for Empty Swings (UV lamps)
* Drying Section for Empty Swings – with Heating System
* Drum Discharge onto following Stamping Station

Item 4

1) Stamping station ST/K–K4

* Duster before Stamping Station
* Stamping Station with Reversible Pressing Cups (One Side with Single Pressing Cups, 5-across for round stamped products like Kaiser Rolls with a cross separation of 110 mm and the other side with continuous pressing cup.
* Stamping head with support for easily and fast exchangeable stamping tools
* Included 1 Stamping tool K4 (Kaiser) and 1 Stamping tool for Portuguese Buns
* Additional stamping tools available at additional cost

Item 5

1) Forming station RR 600

* Nominal width 600 mm
* Forming Station RR consisting of Driven Bottom Belt, Top Moulding Plate - Adjustable, Double Setting Roller for Row Correction, Height Adjustable.
* Four Duster Before Moulding Station

Item 6

1) Retracting belt AB600/1000

* Working width 600 mm
* Retracting length up to max. 1000 mm adjustable
* Step Lengthwise continuously Adjustable
* Setting onto Baking Trays with the Maximum Dimensions of 600 x 1000 mm
* Retracting unit accessible only from One side – Execution with Slide

Item 7

1) Freely programmable control PLC

* Operating Panel Type Siemens
* Voltage balance for PLC

I. Products and capacities:

Long rolled products
* Weight: max. 120 g
* Proving time: 7.6 minutes
* Operation mode: 3, 4 or 5 Pocket
* Tray size: 457mm x 660 mm
* Capacity: 5-Pocket Operation 7500 pcs/hr, 4-Pocket Operation: 6,000 pcs./hr, 3-Pocket Operation: 4,500 pcs./hr
• panning: 5 row x 4, 4 row x 6 or 3 row x 6

Round products and Kaiser rolls

* Weight: max. 120g
* Proving time: 7.6 minutes
* Operation mode: 4 or 5 pocket
* Tray size: 457mm x 660mm
* Capacity: 5-pocket operation: 7500 pcs./hr
* panning: 5 row x 6

Note: Pictures Before Refurbishing
