### Dedert Evaporator System ###
**Evap Rate 205,475 lbs/hr**

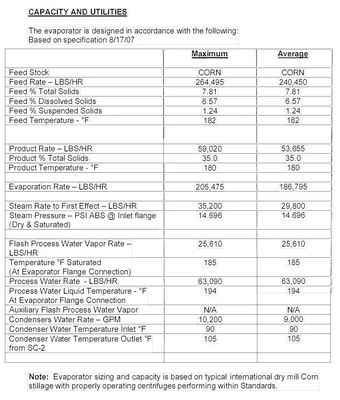

- Feed rate 264,496 Lbs.hr, Product rate 59,020 Lbs/hr
- Stainless steel 304L contact parts
- ASME pressure vessels

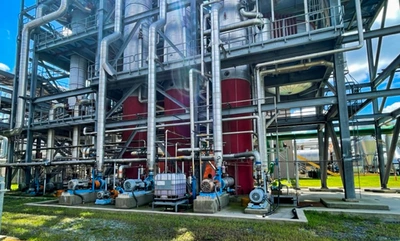

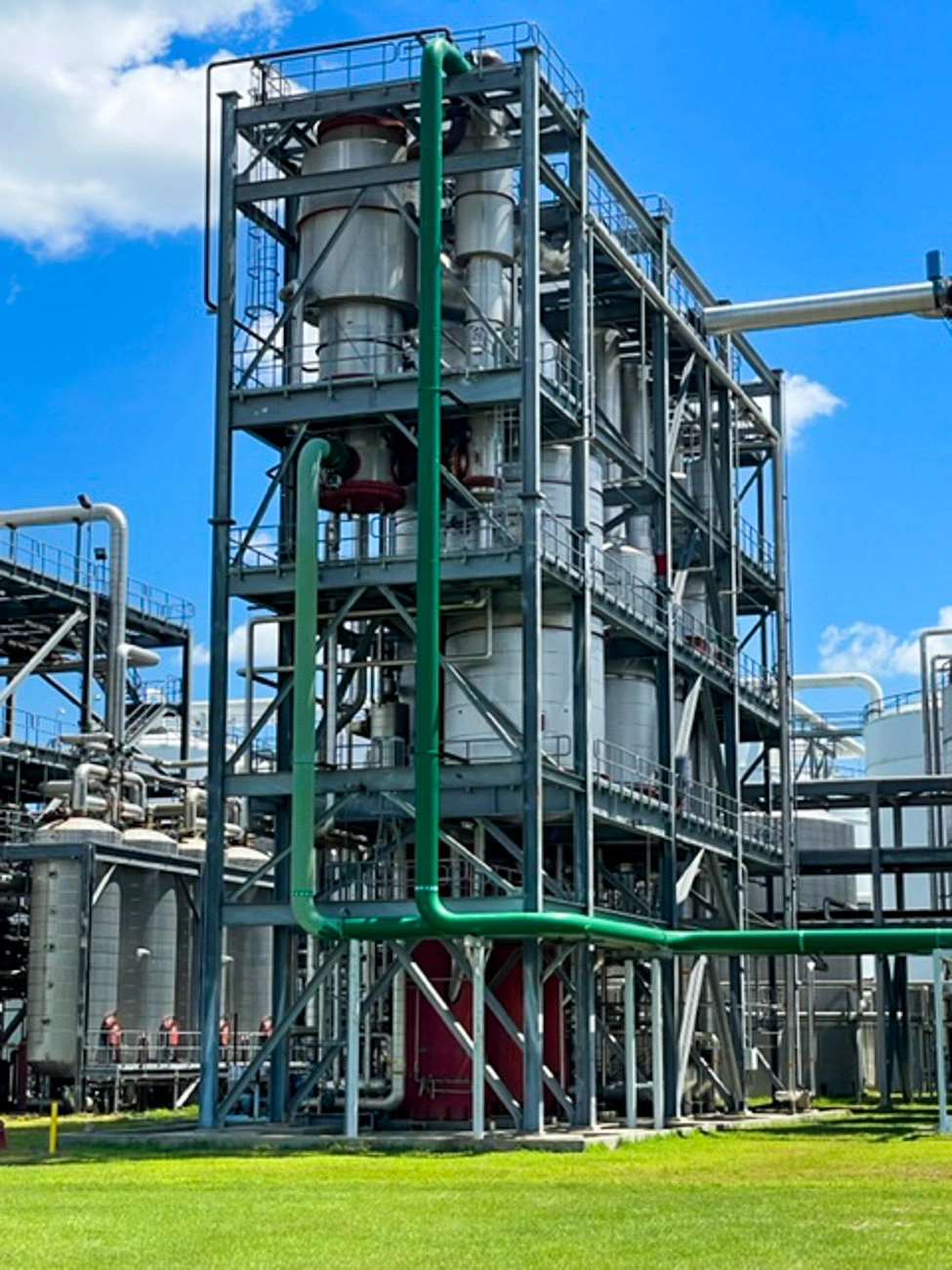

This evaporator is designed as a quadruple effect using live steam, flash process vapor, and process water as the heating medium. Originally designed for 265,000 pounds per hour of corn stillage. The first effect is designed using forced circulation type heat transfer surface. The 2nd, 3rd and 4th effects are designed using recirculated falling film type heat transfer surface. The final vapors from the 4th effect are condensed in a shell and tube type condenser supplemented by a vacuum pumps and motor. The entire system can be used for a biofuel, boi-diesel or other moisture reduction, drying and processing facility.
System footprint is approximately 25\' wide by 90\' long
Quantity: 1
Capacity: 265,000 #/hr
Width/Dia: 25 Feet
Length: 90 Feet
Material: ss304L
