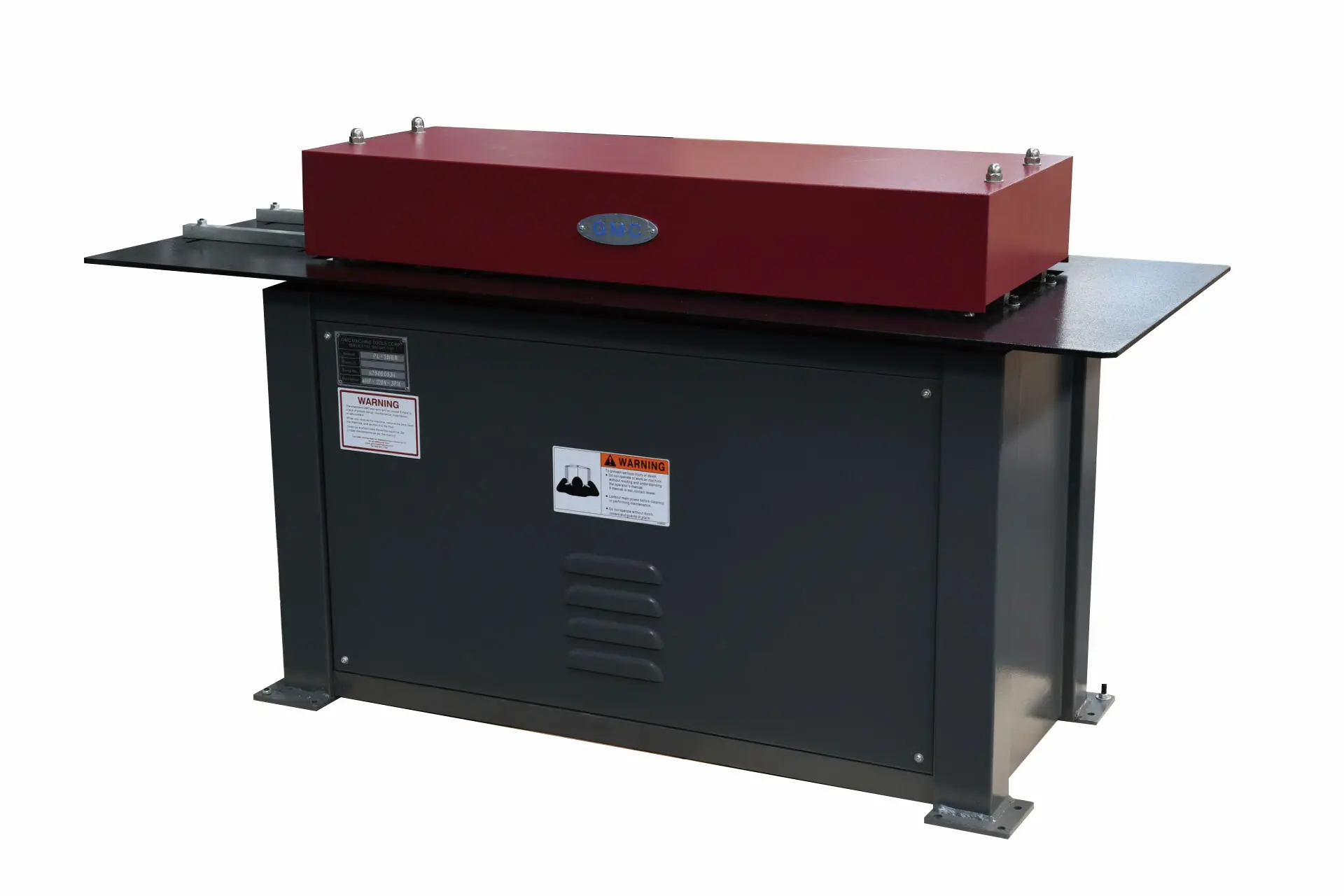

Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.
Specifications: GMC PL-18HEM
Capacity: Galvanized sheet
Flattened Hem
Open Hem
Teardrop Hem
Rope Hem
Pittsburgh lock , 5/16” width
Double seam
Drive Cleat
Max hemming width: 24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
3/8"
Station numbers: 9 stations with 9 pairs of rolls on each side
Feeding speed: 21 FPM
Main motor
Amperage draw: 4 HP, 220V, 3PHASE
15Amp
weight, approx: 685 LBS
Machine dimensions, LxWxH
Machine shipping dimensions, LWH: 60”x25”x40”
62” x 27” x43”
ISO 9001 certified
4HP Heavy Duty AC main motor, 220V, 3 phase
Heavy welded all steel construction for maximum rigidity
One side forms Flattened Hem
One side forms Open Hem
One side forms Open Hem
One year warranty for parts
