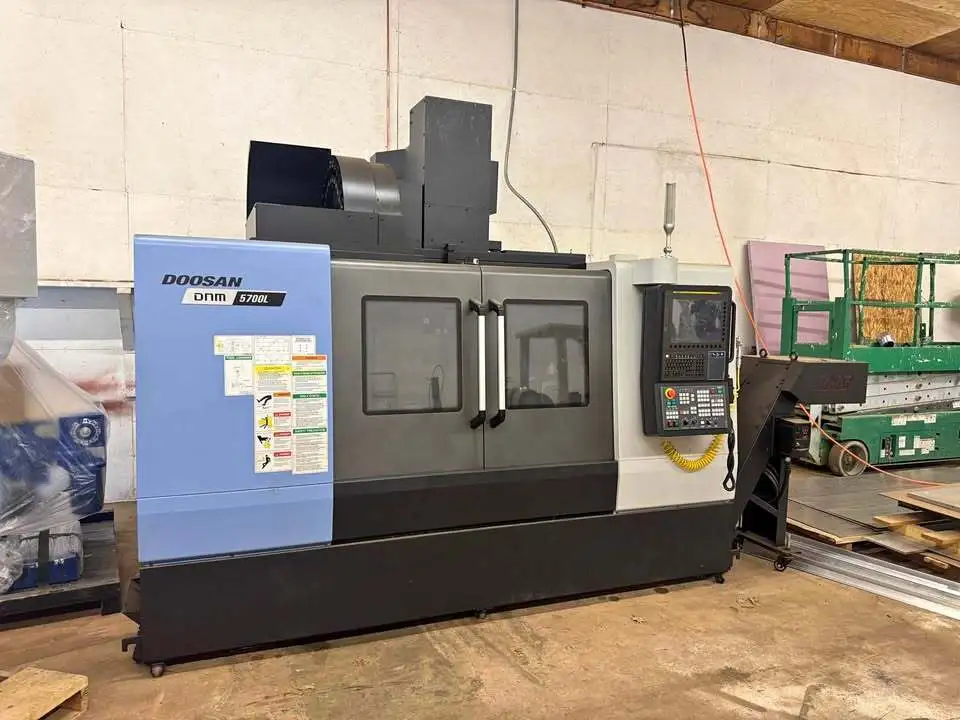

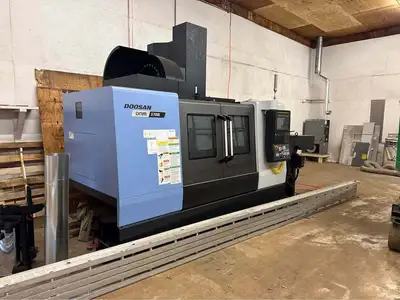

USED 2021 DOOSAN DNM 5700L

Ohio, United States
1,551Listings|490Followers
Overview
Vertical Machining Centers

2021 DOOSAN DNM 5700L Vertical Machining Center, used condition. Equipped with Samchully S170 rotary, LNS Chip Conveyor, Through Spindle Coolant, new spindle probe and tool setter, two Kurt DX6 vises, misc tool holders; 51.18"X, 4-axis, 12,000 RPM.

Specs
X
51.18"
1,300 mm
Y
22.44"
569.98 mm
Z
20.08"
510.03 mm
RPM
12,000 RPM
12,000 RPM
# ATC
30
30
Taper
CAT 40
CAT 40
Table-W
22.4"
568.96 mm
Table-L
51.2"
1,300.5 mm
# Axis
4
4
Control
CNC (Fanuc)
CNC (Fanuc)
Equipped With

Samchully S170 rotary and a 5c pneumatic collet closer
LNS Chip Conveyor
Through Spindle Coolant
Spindle probe and tool setter with the calibration tools (brand new in box)
2 Kurt DX6 Vises
Misc tool holders
