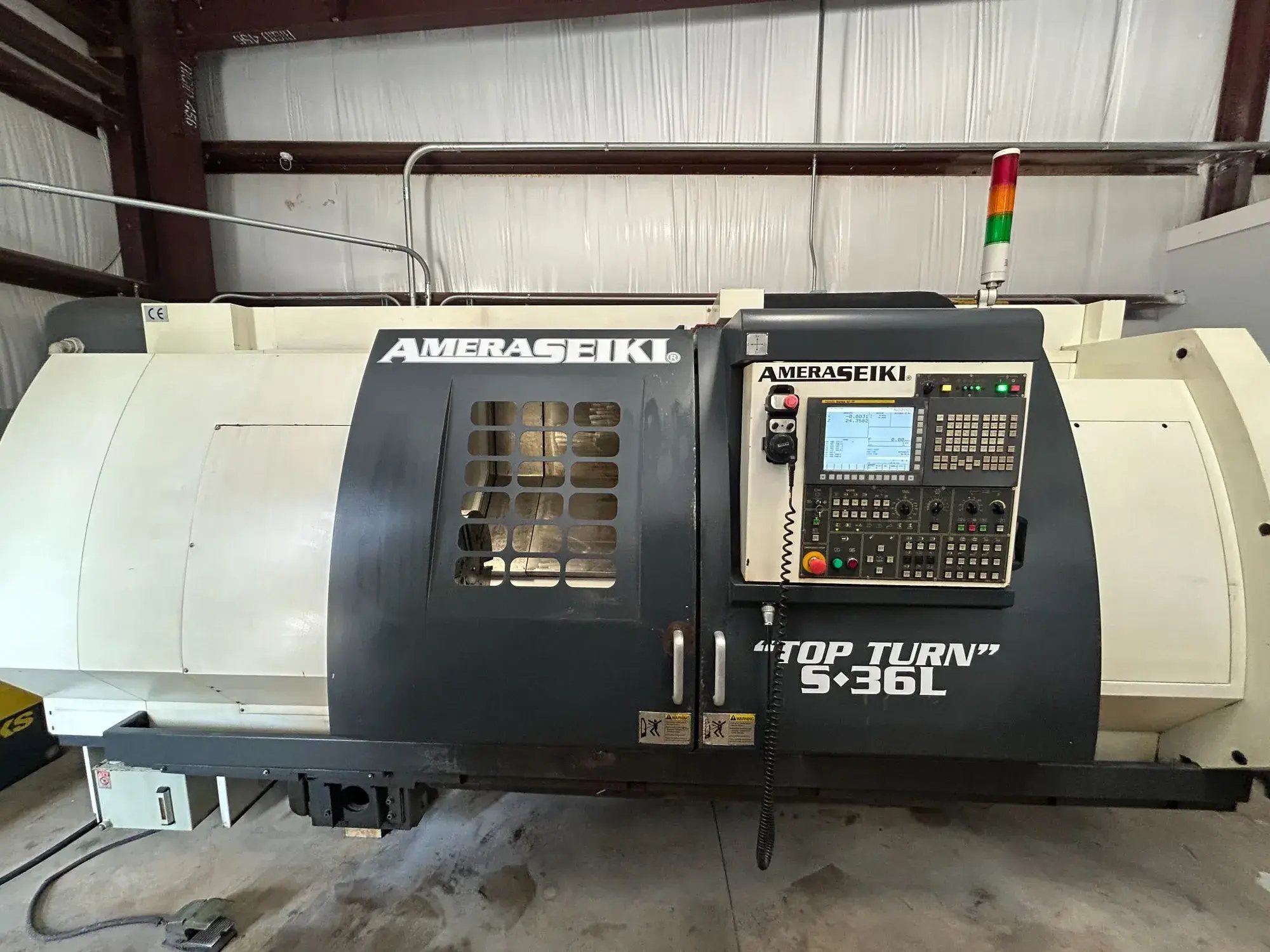

USED 2018 AMERA SEIKI S-36L
Overview
Used CNC Lathe, offering multi-axis capabilities. Features Ø780mm swing over bed, 1200mm max turning length, A2-11 spindle nose, 18" chuck, 10-station servo turret, and Fanuc control. Equipped with hydraulic system and auto lubrication.
Specs
Swing Over Bed mm (in): Ø780 (30.7)
Max Turning Diameter mm (in): Ø500 (19.6)
Max Turning Length mm (in): 1200 (47.2)
Distance Between Centers mm (in): 1250 (49.2)
Chuck Diameter: 18”
Spindle
Spindle Speed rpm: 1200
Main Spindle Motor kw (hp): 22/26 (30/35)
Spindle Nose: A2-11
Spindle Bore mm (in): Ø165 (6)
Bar Capacity mm (in): Ø117 (4.6)
Turret
Type: Servo
Number of Tools #: 10
Tool Height (Square Tool) mm (in): 32 (1.25)
X-Axis
Type Box Way
Travel mm (in) 275(+30) (12)
Rapid Traverse m/min (ipm): 24 (945)
Ball Screw Diameter mm (in): Ø40 (1.57) P10
Z-Axis
Type: Box Way
Travel mm (in): 1350 (53.1)
Rapid Traverse m/min (ipm): 20 (787)
Ball Screw Diameter mm (in): Ø50 (2) P10
Hydraulic System
Tank Capacity liter (gal): 60 (15.9g)
Hydraulic Pump motor kw (hp): 2.3 (3)
Coolant System
Tank Capacity liter (gal): 250 (66g)
Coolant Pressure psi: 44
Tailstock
Tailstock Body Movement mm (in): Hydraulic
Quill Diameter mm (in): Ø110 (4.33")
Quill Travel mm (in) 100 (3.9")
Quill Taper MT #5
Positioning Accuracy: X: 0.025mm/300mm, Z: 0.06mm/300mm
Repeatability Accuracy: X: 0.015mm, Z: 0.025mm
C Axis Positioning: Accuracy 63 arc sec
Equipped With
AC Spindle motor 22/26kw (30/35HP)
FANUC CONTROL Standard voltage 220V
Spindle variable speed max.1200rpm
Spindle nose: A2-11, spindle bore: Ø165mm
18" 3-jaw hydraulic hollow chuck (bar capacity Ø117.5mm) Speed 1200 rpm
With a 3-stage gearbox
Foot pedal x 1set.
Auto lubrication system.
Working light.
Coolant system.
Fully enclosed splash guard.
Front door interlock.
10-station servo turret. □ 1-1/4”x1-1/4” dia. 480mm (Inch Type)
Tailstock quill taper: M.T. #5
Ø110mm Tailstock.
Hydraulic quill Tailstock, Travel 100mm.
Operation manual and maintenance manual
E-Fanuc manual and electrical diagram
High-pressure coolant pump 3 bars
