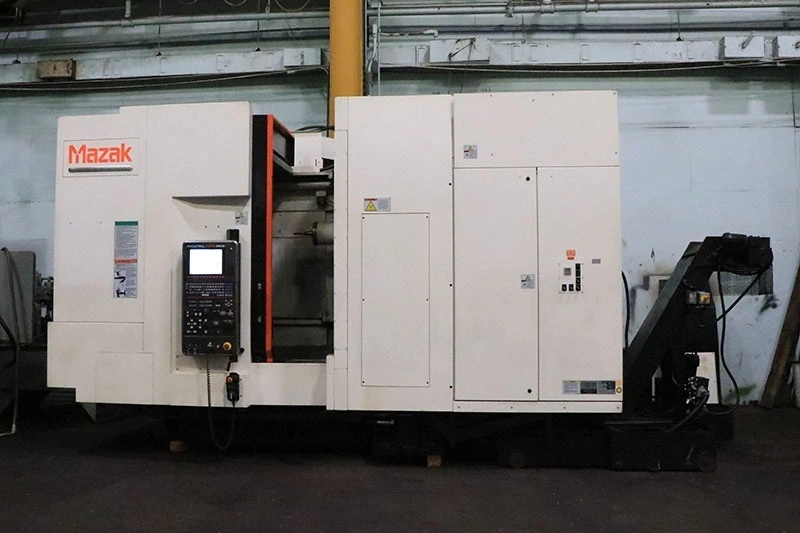

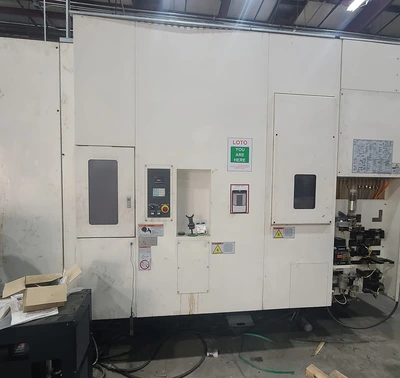

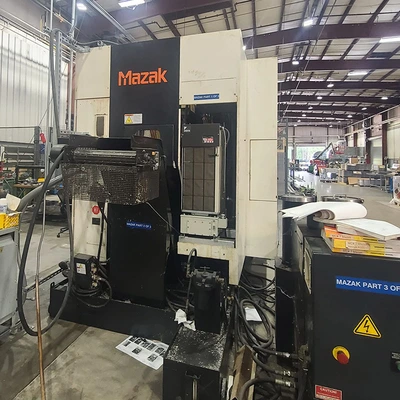

Used Horizontal Machining Center features 15.7" pallets, 882 lbs capacity, and 24.8" x 35.43" workpiece dimensions. Equipped with MAZATROL MATRIX NEXUS control, 40-station tool changer, and 18,000 RPM spindle.
| X | 22.05" | 560.07 mm |
| Y | 24.8" | 629.92 mm |
| Z | 25.2" | 640.08 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 40 | 40 |
| Taper | Cat 40 | Cat 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
| Dimensions | 21,000 LBS | 21,000 LBS |
| Weight | 85" W x 209"L x 110"H | 85" W x 209"L x 110"H |
PALLET SIZE .......................... 15.7" X 15.7" (400MM)
PALLET LOAD CAPACITY ................. 882 LBS / 400KG
MAXIMUM WORKPIECE DIMENSIONS ......... 24.8" x 35.43"
MACHINE TRAVELS:
X-AXIS TRAVEL ...................... 22.05"
Y-AXIS TRAVEL ...................... 24.8"
Z-AXIS TRAVEL ...................... 25.2"
PALLET SURFACE TO SPINDLE CENTER ..... 2.76" - 27.96"
PALLET CENTER TO SPINDLE GAUGE PLANE . 3.15" - 27.95"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING (FULL FOURTH) ........ .001 DEGREE
SPINDLE TAPER ........................ CAT #40
SPINDLE SPEEDS ....................... 0 - 18,000 RPM
CUTTING FEEDRATE ..................... 0.04 - 2362 IPM
POWER RAPID TRAVERSE ................. 2362 IPM
TOOLCHANGER CAPACITY ................. 40 STATIONS
SPINDLE DRIVE ........................ 40/33.5 HP
APPROXIMATE WEIGHT ................... 21,000 LBS
APPROXIMATE FLOOR SPACE .............. 85" W x 209"L x 110"H

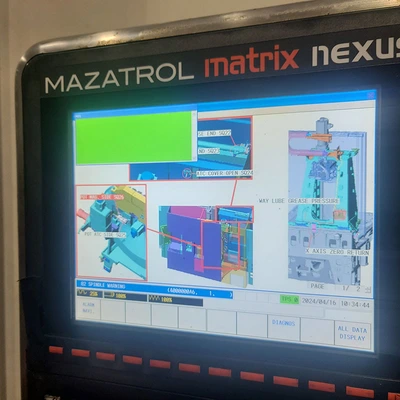

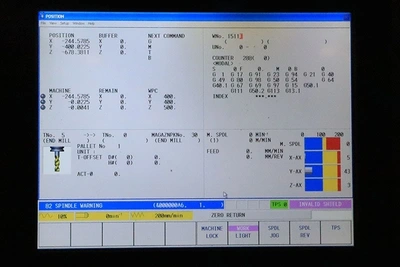

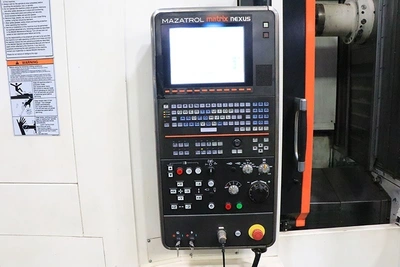

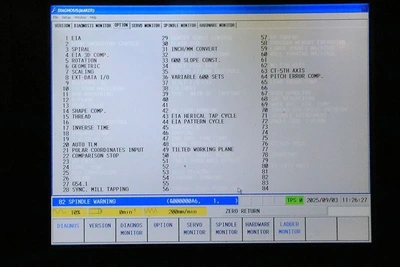

- MAZATROL MATRIX NEXUS CONTROL (FULL FOURTH)
- 40/33.5 HORSE POWER SPINDLE DRIVE, 18,000 RPM SPINDLE
- THRU-SPINDLE COOLANT, 1000 PSI

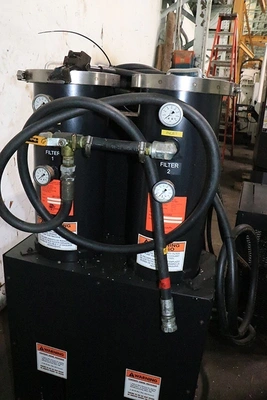

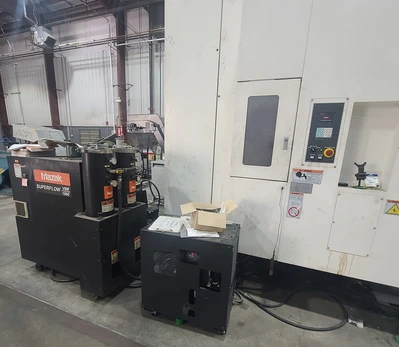

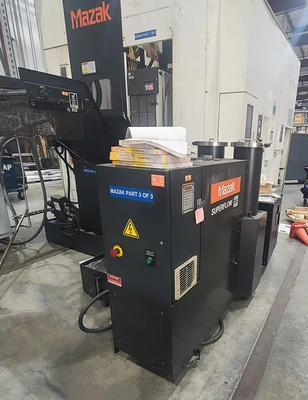

- SUPERFLOW V8M/1000 PSI UNIT
- 2 PALLETS
- PROGRAMMABLE PALLET

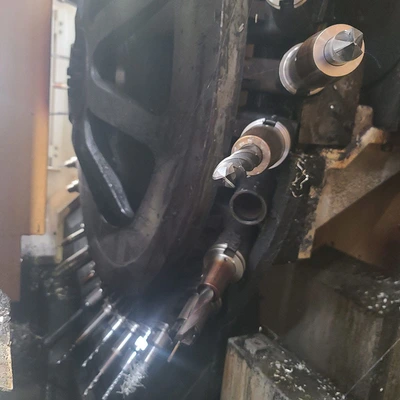

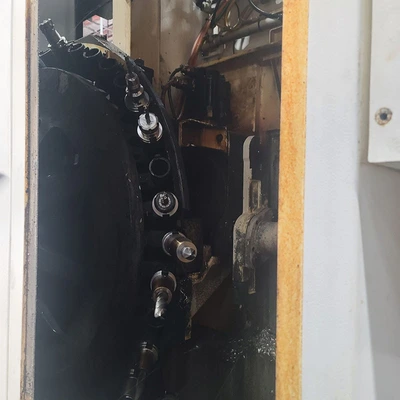

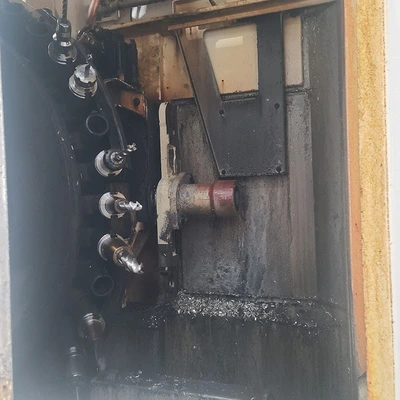

- 40 STATION AUTOMATIC TOOL CHANGER

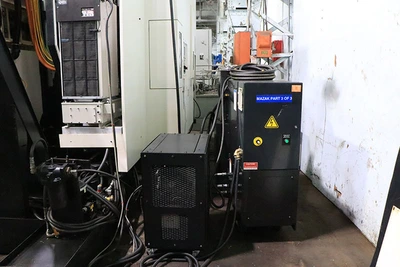

- CHILLER

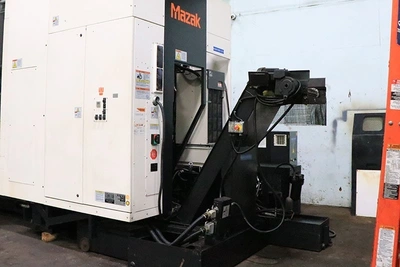

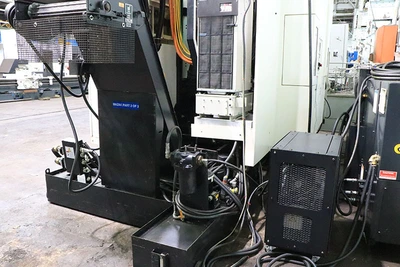

- CHIP CONVEYOR
