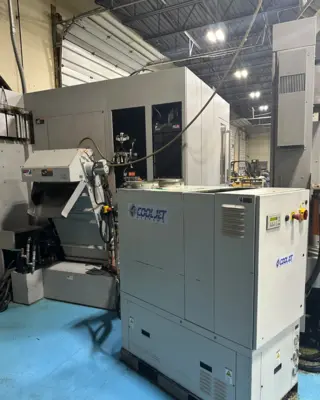

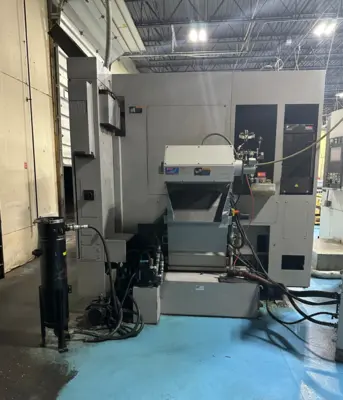

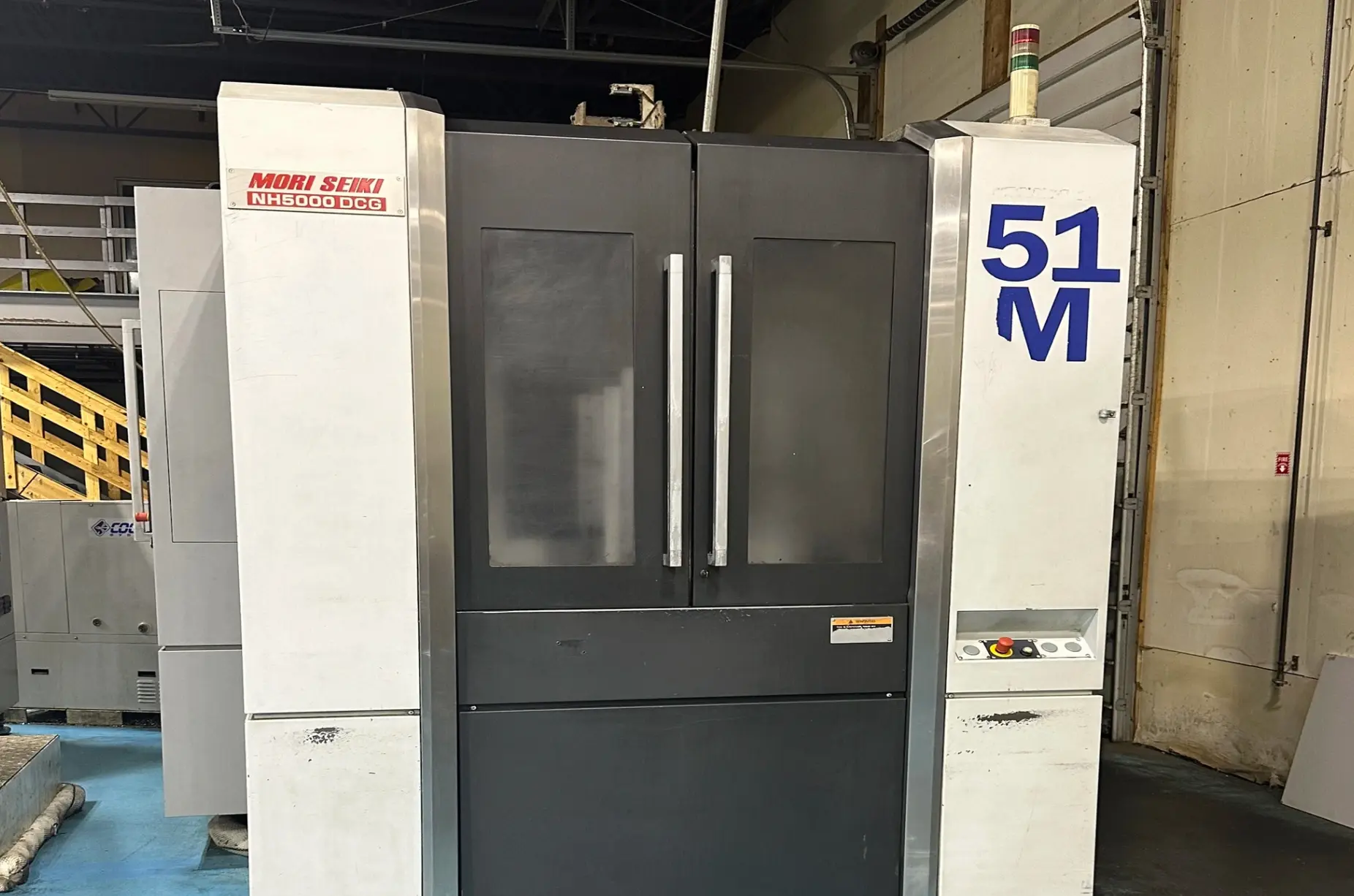

Used Horizontal Machining Center for sale. Features a CAT #40 spindle, 14,000 RPM speed, and 60-tool changer. Includes a chip conveyor, TSC 1000 PSI, and a Fanuc data server. Approx. weight: 28,380 lbs. Floor space: 107.3" W x 181.5" L.
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 33.5" | 850.9 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 60 | 60 |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 107.3" W X 181.5"L | 107.3" W X 181.5"L |
| Weight | 28,380 LBS | 28,380 LBS |
X-AXIS: 28.7"
Y-AXIS: 28.7"
Z-AXIS: 33.5"
PALLET SURFACE TO SPINDLE CENTER: 3.9" - 32.7"
NUMBER OF PALLET STATIONS: 2
PALLET INDEXING (FULL FOURTH): 001 DEGREE
SPINDLE TAPER: CAT #40
SPINDLE SPEEDS: 0 - 14,000 RPM
CUTTING FEEDRATE: 0 - 1968.5 IPM
POWER RAPID TRAVERSE: 1968.5 IPM

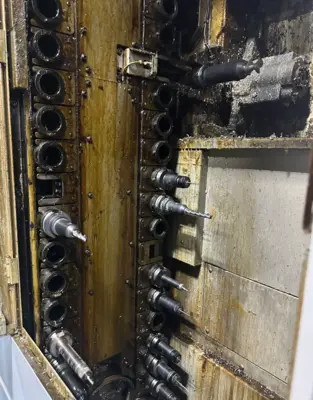

TOOLCHANGER CAPACITY: 60 STATIONS
SPINDLE DRIVE: 50/30 HP
APPROXIMATE WEIGHT: 28,380 LBS
APPROXIMATE FLOOR SPACE: 107.3" W X 181.5"L
14,000 RPM
CHIP CONVEYOR
TSC 1000 PSI
FANUC ON BOARD DATA SERVER
RENISHAW SYSTEM (NO PROBE)
60 TOOLS
