Machine is in Excellent Condition & Ready For Inspection.
| Rect-Cap (H) | 12" | 304.8 mm |
| Rect-Cap (W) | 12" | 304.8 mm |
| Rounds-Cap | 12" | 304.8 mm |
| Square-Cap | 12" | 304.8 mm |
| Power | 2 hp | 1.5 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 160" | 4,064 mm |
| Dimensions | 153”L x 84”W x 60”H | 153”L x 84”W x 60”H |
| Weight | 4,500 Lbs | 4,500 Lbs |
Specifications:
Model - C-8A
Capacity Rectangle (90 Degrees) - 12” x 12”
Capacity Round (90 Degrees) - 12”
Table Height - 25”
Blade Size - 1” x 160”
Band Wheel Diameter - 16”
Shuttle Stroke - 0 - 32”
Band Speeds - 65 to 250 FPM
Blade Drive - 2 HP
Electrics - 550V/3PH/60HZ
Made In - USA
Approximate Weight - 4,500 LBS
Approximate Overall Dimensions - 153”L x 84”W x 60”H
Equipped With:

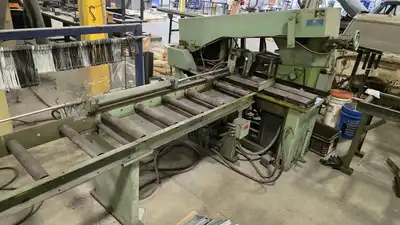

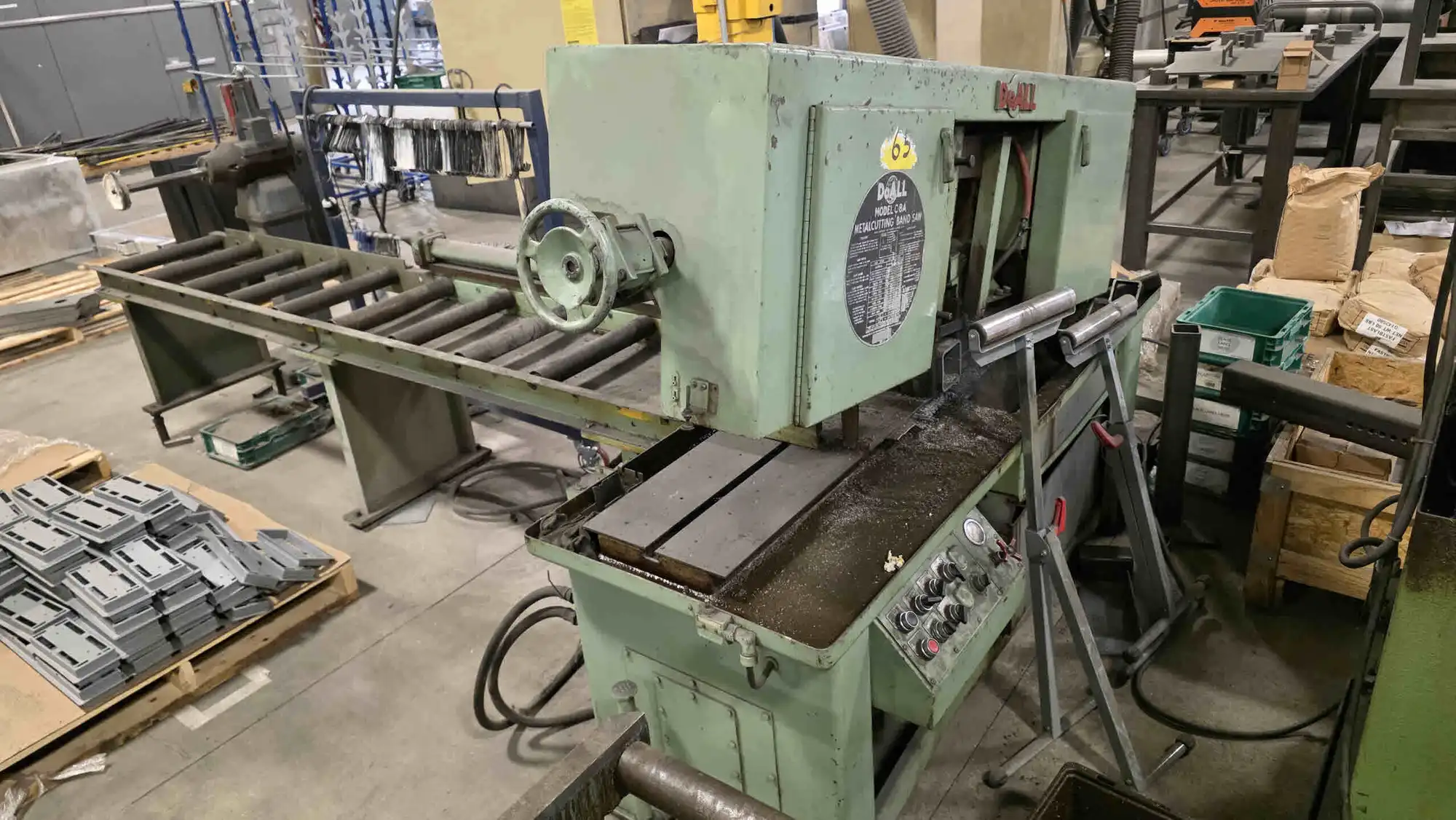

Automatic Hydraulic Band Saw

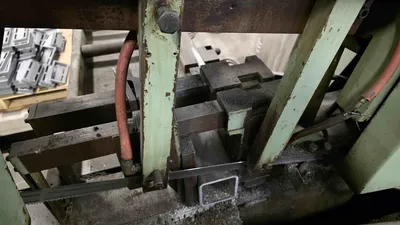

Hydraulic Vice
Control Console
Conveyor (18”W x 120”L)
Manual Band Tension
Coolant System
