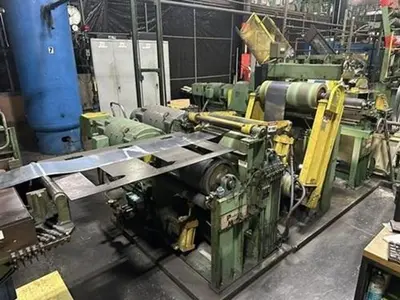

18" x .025" PM / Andritz Oscillating Slitting Line with 12 Recoilers

Specifications:
Manufacturer: PM / Andritz
Material: 1095 High Carbon Steel
Tensile Strength: 120,000 PSI
Shear Strength: 96,000 PSI
Thickness Range: .0045” - .025”
Line Direction: Left to Right
Line Speed: 1500 FPM
Entry Strip Width: 18”
Traverse Winder Coil Width: 8”
Entry Coil ID: 15” - 22”
Traverse Winder Coil ID: 11”
Exit Coil ID: 16”
Entry Coil OD: 54”
Ribbon Wound Coil OD: 39”
Exit Coil OD: 54”
Entry & Exit Coil Weight Capacity: 10,000 Lbs.
Traverse Winder Coil Weight Capacity: 2,250 Lbs.
Cut Widths By Thickness:
.0045” Thickness: 1/4”, 3/8”, 1/2”, 3/4”, 1”
.0051” Thickness: 3/8”, 1/2”, 5/8”, 7/8”
.0062” Thickness: 3/8”
Line Includes:
Mandrel Uncoiler
Hold Down Roll
3 Leaf Hydraulic Expansion
Sliding Base
15 HP Motor
Disc Brake
Edge Control
Peeler Table / Deflector Roll

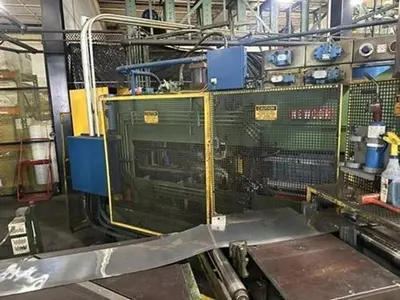

Newcor Strip Welder With Planishing
2 Roll Bridle Unit For Tension Control
Double Roll Tracking Roll For Strip Alignment
2 Sets Of Rubber Coated Deflector Rolls
Edge Guides

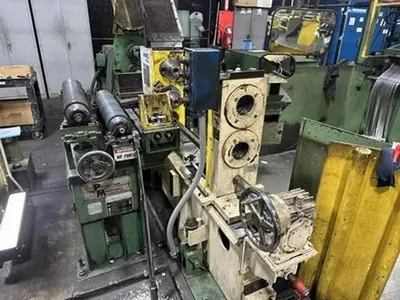

Andritz Slitter Head
New In 2016
5” Diameter Arbors
12 Sets Of Quick Change Tooling Arbors
Pre-Packed Arbors
Shimless Tooling
Anti Friction Bearings
25 HP DC Drive
1750 / 2000 RPM
Scrap Baller
Recoiler
16” Diameter Drum
10,000 Lb. Coil Capacity
30 HP DC Drive
Hydraulic Push-Off
Hold Down Roll
21” Drum Face
1 Arm Exit Turnstile
Vertical Strand Separator
Aligns Strips After Exiting The Slitter
Deflector Rolls

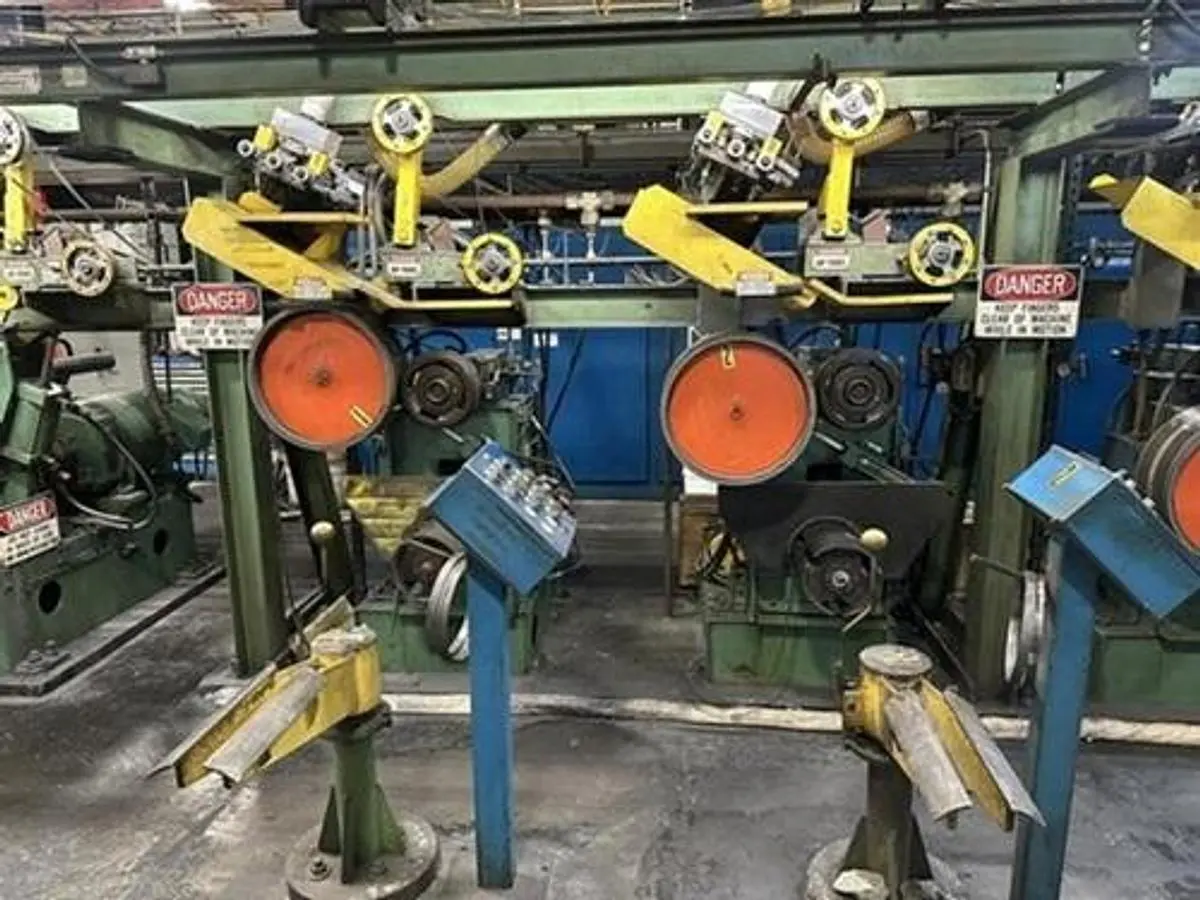

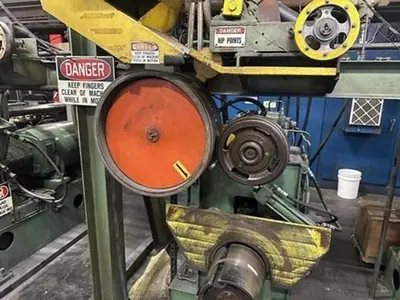

12 Oscillating Recoilers
11” Diameter Drums
Hydraulic Push-Off

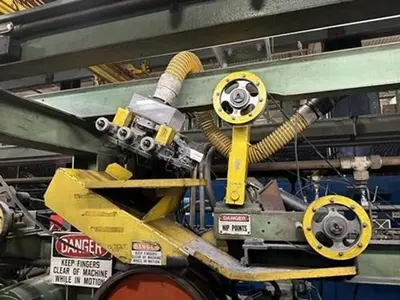

Vertical Edge Conditioners
S Bridle Strip Tension Rolls (2)
Hydraulic Traversing Oscillating Wheel
7.5 HP Drive
1 Arm Exit Turnstiles

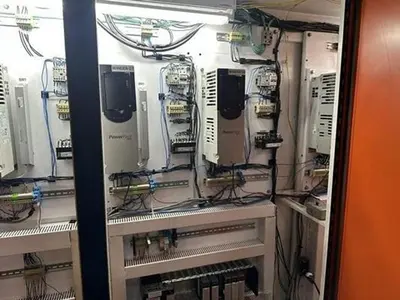

PowerFlex 755 Digital Drives
Allen Bradley PLC
Digital Drives
Digital Readouts
Central Hydraulic Units
Operator Push Button Stations

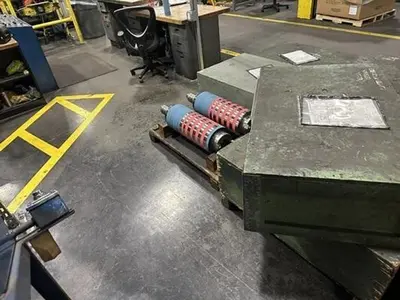

Slitter Tooling
Hydraulics & Electrics
