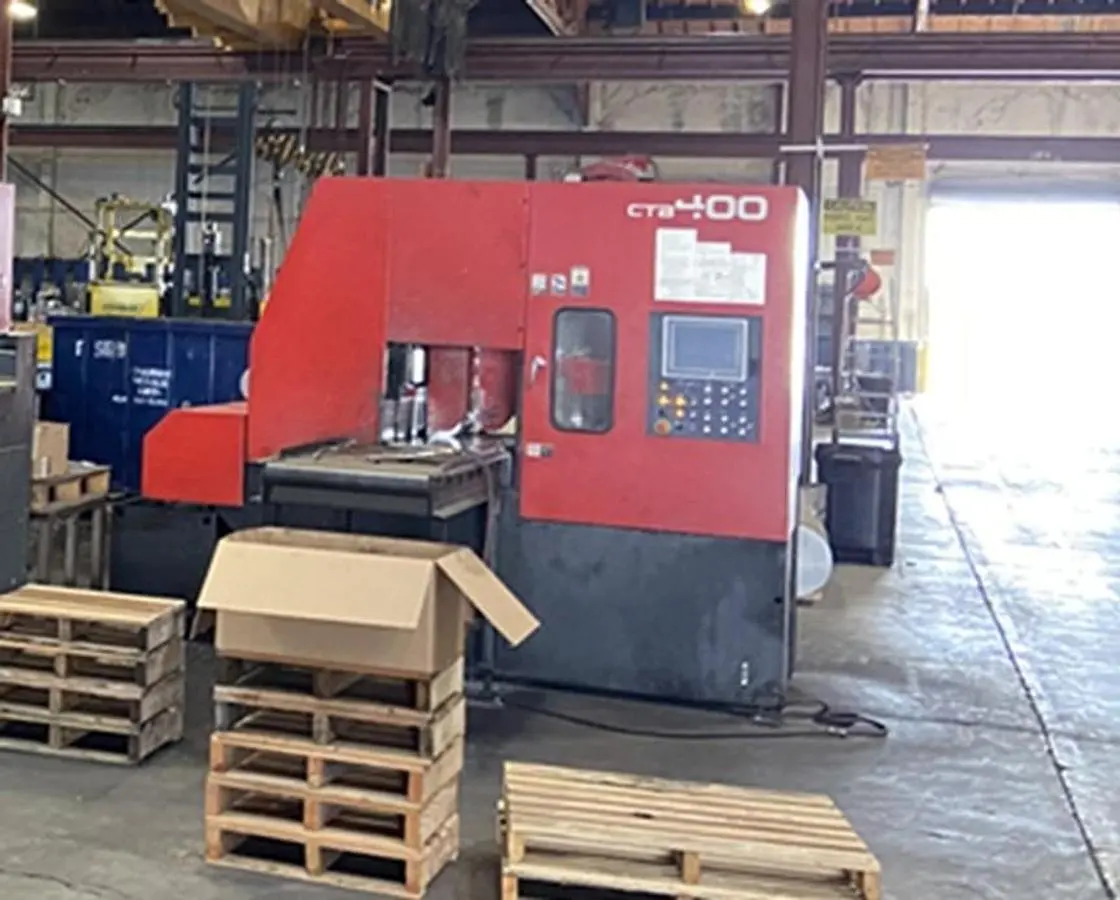

USED 2008 AMADA CTB400

The Amada CTB400 Bandsaw Machine is a robust piece of industrial equipment designed for efficient metal cutting tasks. This used machine operates on a 200V, three-phase power supply and requires a power input of 14 kVA, making it suitable for heavy-duty applications. With a weight of 4,200 kg, it is stable and sturdy, ensuring precision in all cutting operations.
Equipped with a powerful 7.5 kW blade motor, the bandsaw delivers adequate performance for demanding projects, while the hydraulic motor and various auxiliary motors enhance its functionality and operational efficiency. The machine is fitted with a 185.6-inch blade, with a width of 1-1/2 inches and a thickness of .050 inches, supporting diverse cutting requirements.
Its transformer setup includes a TC1 Transformer with a 0.8 kVA two-phase capability, and it has an interrupting current capacity of 25 kA, ensuring reliable electrical safety. The Amada CTB400 Bandsaw Machine is an ideal option for businesses seeking a reliable and efficient cutting solution.

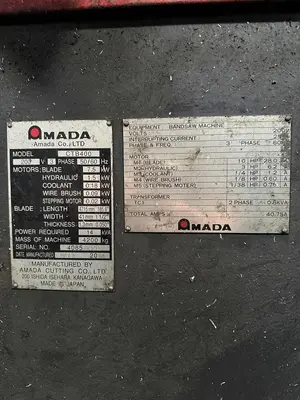

Motors:
Blade Motor: 7.5 kW / 10 HP / 28.0 A
Hydraulic Motor: 1.5 kW / 3 HP / 6.2 A
Coolant Motor: 0.18 kW / 1/4 HP / 1.2 A
Wire Brush Motor: 0.09 kW / 1/8 HP / 0.60 A
Stepping Motor: 0.02 kW / 1/38 HP / 0.75 A
Blade:
Blade Length: 185.6" (4,715 mm)
Blade Width: 1-1/2" (41 mm)
Blade Thickness: .050" (1.3 mm)
Transformer:
TC1 Transformer: 2 Phase / 0.8 kVA
