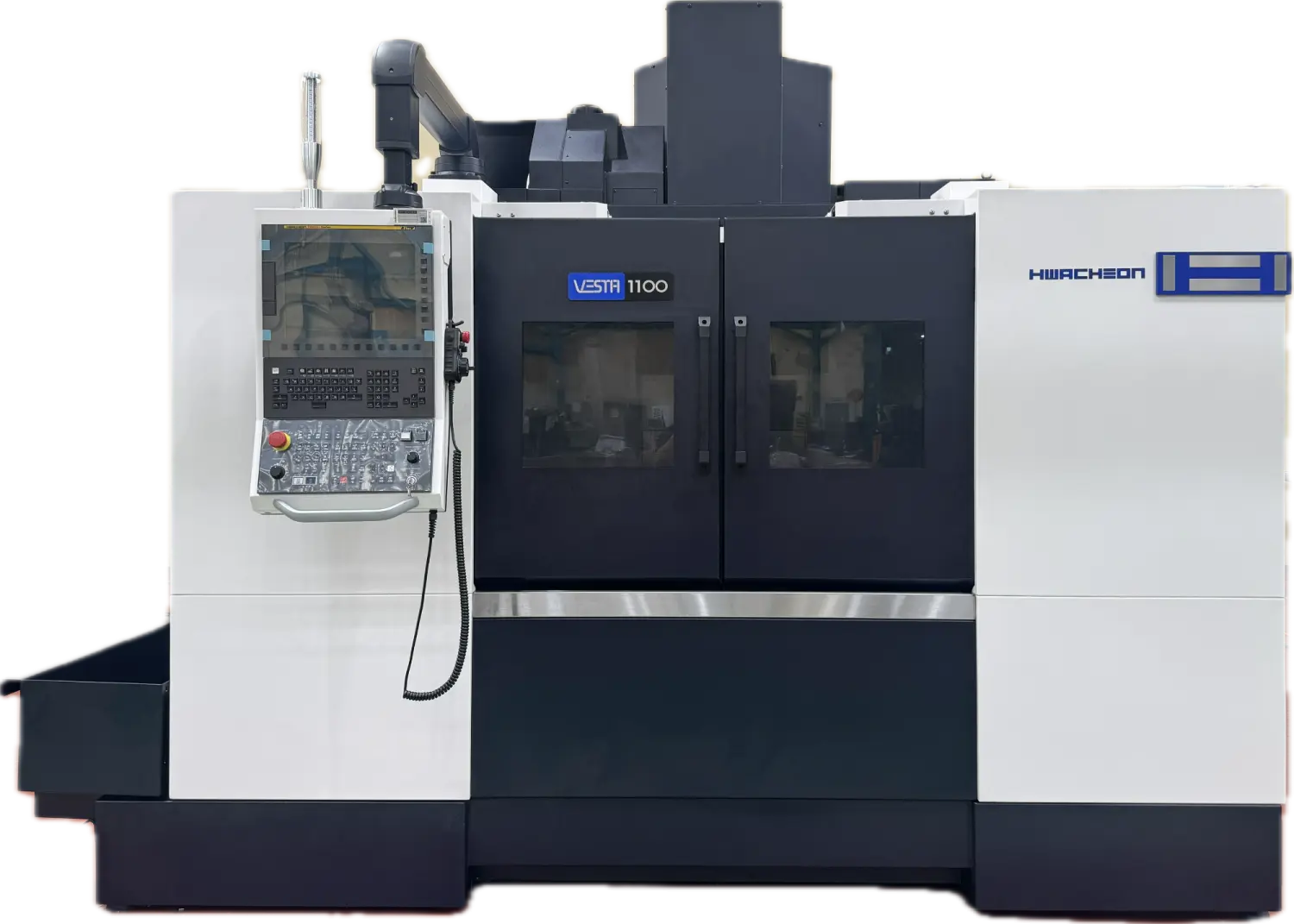

NEW HWACHEON Vesta-1100

Specifications (subject to buyer verification):
X-axis Travel: 1,000 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm
Distance from Table Surface to Spindle Nose: 80 ~ 680 mm
Distance from Column Guideway to Spindle Center: 6 mm
Table Size: 1,300 x 600 mm
Max. Table Load: 1,000 kg
T-slot (Width x Pitch / No.): 18 x 80 mm/ 5ea
Max. Spindle Speed: 10,000 RPM
Spindle Motor: 18.5 / 11 kW
Spindle Taper: ISO#40, 7 / 24 Taper (BT-40)
Rapid Traverse (X / Y / Z): 36 / 36 / 36 m/min
Cutting Feed Rate (X / Y / Z): 1 ~ 24,000 mm/min
Feed Axis Motor (X / Y / Z): 1.8 / 1.8 / 3 kW
Coolant Motor (Spindle / Bed): 1.4 / 2.2 kW
Spindle Cooling Motor: 0.18 kW
Tool Type: BT-40 (Opt.: CAT-40, SK-40)
Pull Stud Type: MAS P40T-1 (45˚)
Tool Capacity: 30
Max. Tool Diameter (Adjacent Tool O / X): Ø75 / Ø150 mm
Max. Tool Length: 300 mm
Max. Tool Weight: 8 kg
Tool Selection Method: Memory Random
Electric Power: 30 kVA
Air Supply (Pressure x Consumption): 0.5 ~ 0.7 MPa x 690 Nℓ/min
Spindle Cooling Oil / Grease: 20 / 0.7 ℓ
Coolant: 430 ℓ [Opt.: 730]
Machine Dimensions: 2,953 mm x 3,520 mm x 2,530 mm
Machine Weight: 5,900 kg

Equipped With (subject to buyer verification):
Machine Standard Features:
FANUC 0iMF PLUS Control
12,000 rpm (Option:15,000 rpm on PRO Model)
30 Tool Magazine
3-Color Warning Lights (R,G,Y)
Operating Panel Height Control Device
Air Blower
Compressed Air Control System
Door Interlock
Display Unit 15” Color LCD
Ethernet Interface
Grease supply unit
HFDC (Frame Displacement Control System)
HTDC (Thermal Displacement Integrated Control System) - HSDC (Spindle Displacement Control System) +
HTLD (Tool Overload Detection System)
Hwacheon Artificial Intelligence Control System (HAI): 200 Block
Hwacheon Efficient Contour Control System (HECC)
Leveling block and plate
Lift-up chip conveyor (Hinge)
Lubrication Oil Separation Tank
Manual and parts list
Manual Guide i
MPG Handle (1 pc)
Oil Mist (Semi Dry Cutting System)
Oil and water separation tank
Operator panel left/right selection
OPTIMA (Cutting Feed Rate Optimal Control System)
30 Bar CTS Pump
IR Interface
Key door interlock
UL Components
Part Program Storage Length 5,120m (2MB)
Perfect Base Around Splash Guard
Rigid tapping
Ring around flood coolant unit
Spindle cooling device (Jacket Cooling) - Fan Cooler type
Toolbox
Work coordinate system (48 units)
