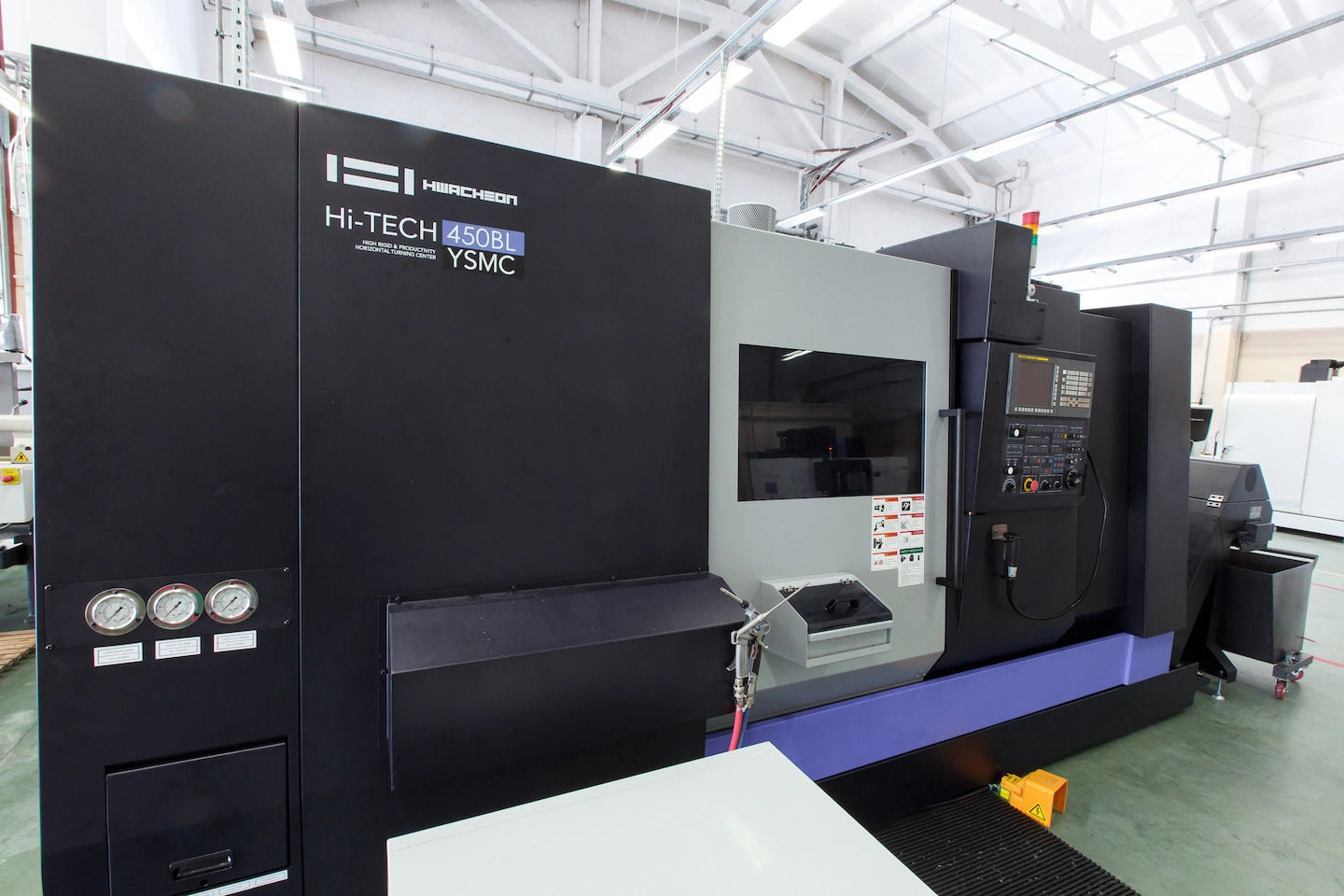

NEW HWACHEON HI-TECH 450BL

Specifications (subject to buyer verification):
Swing over Bed: 27.56"
Swing over Saddle: 21.65"
Maximum Cutting Diameter: 16.54"
Maximum Cutting Length: 47.8"
Chuck Size:12"
Type of Spindle Nose: A2-8, Sub A2-6
Maximum Spindle Speed: 2,500
Through Spindle Hole Diameter:4.13"
Maximum Bar Size:3.50"
Spindle Bearing Inner Diameter:6.300"
Spindle Motor Main:30Hp
Spindle Motor Sub:10Hp
Number of Tool Station: 12
Tool Size (OD x ID): (□ 1 × Ø1.97)
Turret Indexing Time: 0.25 sec/1step
Rapid Traverse (X/Z/Y/B): 787.4/944.8/393.7/629.29 IPM
Maximum Stroke (X/Z/Y/B):
Feed Motor (X/Z/Y/B): 5.4/5.4/5.4/2.2 HP
Tailstock Stroke: 49.21"
Quill Diameter: 3.94"
Quill Stroke: 4.72"
Quill Taper: MT #5
Electrical Power Supply: 55 kVA
Dimensions: 162" x 78" x 81"
Weight: 21,164LBS

Equipped With (subject to buyer verification):
Bar Feeder Interface
Chip conveyor & box (Long,1200)
Chuck Clamp/Unclamp Switch
Coolant System
Door Interlock
Dual Pressure (C-axis brake)
Foot Switch
Helical Interpolation (TF Plus)
High Pressure Coolant Pump (0.6 MPa)
Hwacheon Chip Conveyor
Hydraulic Chuck & Cylinder
B type: 12”
Hydraulic Unit 40Kg/㎠
Leveling Bolt & Plate
Lubrication System
Manual Guide i
Operation Manual & Parts List
Parts Catcher
Axial Holder
Radial Tool Holder
Rigid Tapping
Set of Soft Jaws
Signal lamp with 3 Colors (R, G, Y)
Tailstock (MT#5)
Tailstock body program
Tailstock quill program
Tool Kit & Box
Tooling System
Tool Presetter
Turret
Work light
