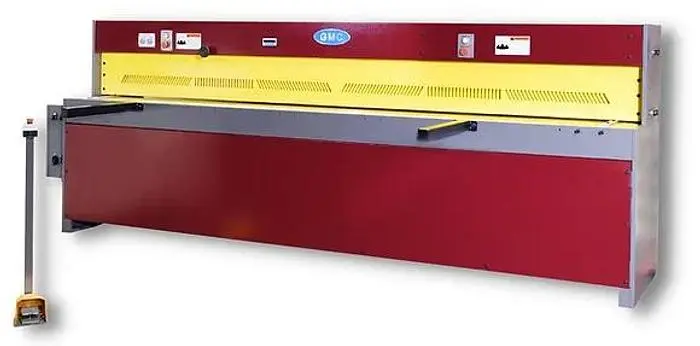

Product: Shears, Mechanical
Overall Cutting Length: 120"
Maximum Cutting Capacity: 14 Ga (Mild Steel), 18Ga. (Stainless Steel)
Blade Length: 121"
Strokes Per Minute: 26
Working Height: 30.5"
Front Support Arm: 24"
Backgauge: 36" Power Back Gauge
Rake Angle: 2.0 Degree
Main Motor: 7.5 HP, 3 Phase, 220 V / 25A (15A/440VAC optional)
Dimensions (approx): 147" x 57" x 53"
Weight (approx): 7,350 Lbs.
ISO 9001 certified
1-Year parts only warranty
36” front operated power back gauge with German SIKO digital readout & fine adjustment wheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
Rear lifting support for thin sheet metal
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
