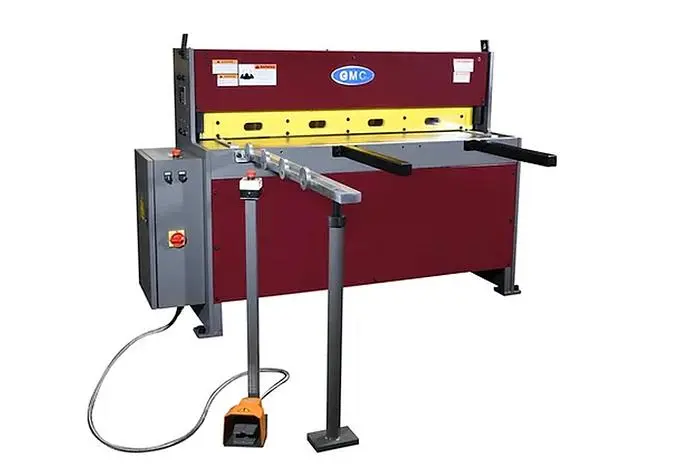

NEW GMC MACHINE TOOLS EPS-0410M
Specs
Product: Shears, Mechanical
Overall Cutting Length: 48"
Maximum Cutting Capacity: 10 Ga (Mild Steel), 14Ga. (Stainless Steel), 1/4" (Soft Aluminum)
Blade Length: 52"
Strokes Per Minute: 30
Working Height: 32"
Front Support Arm: 36"
Backgauge: 26" Manual Backgauge
Rake Angle: 2.2 Degree
Main Motor: 5.5 HP, 3 Phase, 20 Amp, 220 VAC (10A/440VAC optional)
Dimensions (approx): 73" x 43" x 68"
Weight (approx): 3,110 Lbs.
Equipped With
STANDARD FEATURES:
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 30 strokes per minute
60” long squaring arm with inch / mm scale
spring hold-downs
high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
EQUIPPED WITH:
26” manual back gauge with one side handwheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
