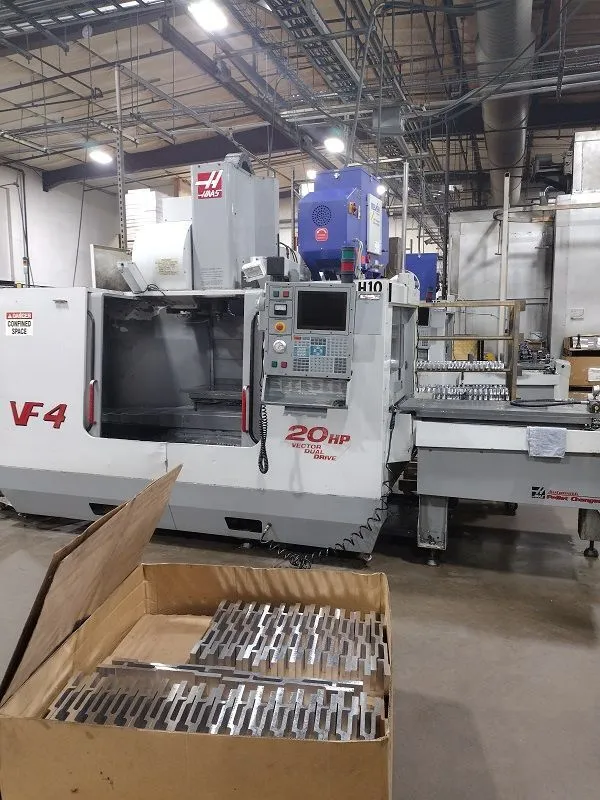

USED HAAS VF-4 APC

In great condition!
10,000 rpm with a 24 place side mounted ATC

TWO USED 4-AXIS HAAS VMC’S, WITH HAAS AUTOMATIC PALLET CHANGERS

Model: VF-4
Table size: 52” x 18”
Travels: 50” x 20” x 25”
Spindle speeds: 10,000 rpm
Spindle HP: 20
Spindle taper: Cat 40
Spindle nose to table: 29” to 4”
Max. Feed speeds: 650 ipm
Max. Rapid travels: 1,000 ipm
Side mounted ATC capacity: 24 place
Tool change time: Cut to cut – 4.2 sec.
Max. tool weight: 12 lbs.
Max. tool diameter with empty pockets: 3.5”
Dimensions: 123” wide x 110” deep x 118” high operating height x 12,000 lbs. (add 16” to the width for the chip auger)
Wired: 208-230v/3ph/60 cy

EQUIPPED WITH:
Programmable coolant nozzle
Chip auger
Rigid tap
Quick code programming
Coordinate Scaling
Macros
RS-232 port
High Intensity lighting
4th axis drive is installed
Side mounted 24 place tool changer
Both machines have a Haas Dual,pallet changer with 2) 40” x 19” pallets each and 48” x 18 7/8” sub plates mounted to each pallet.
Pallet changer dimensions: 62” x 51”
The VMC’s have an automatic door/panel that opens when it does a pallet change & closes afterwards, keeping the coolant and chips where they belong.

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

Machine #1: Equipped with a Haas Dual pallet changer, SN: 22467, new 2000
WAS - $16,500.00

Video link: https://youtu.be/EhyZE6mnFss

Machine #2: Equipped with a Haas Dual pallet changer, SN: 22470, new 2000
WAS - $16,500.00
Video link: https://youtu.be/YRmd80LhW40

F.O.B. – Lake Zurich, IL

REDUCED PRICING! - $15,000.00 EACH OR BEST OFFER!

$20,000.00 buys both!!

Best regards, Jerry Ditter, Pres.
