USED NASH CL 2002

Manufacturer Info
NASH is a leading manufacturer of liquid ring vacuum pumps, compressors, and engineered vacuum systems. The CL Series is designed for heavy-duty industrial vacuum service, with CL models covering broad suction capacity ranges and demanding process applications.
Description

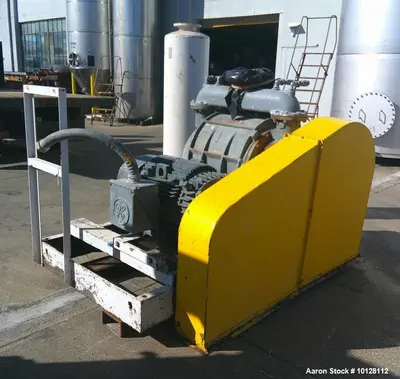

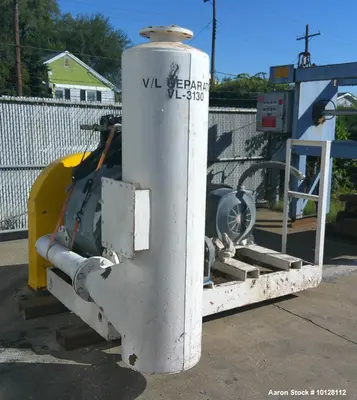

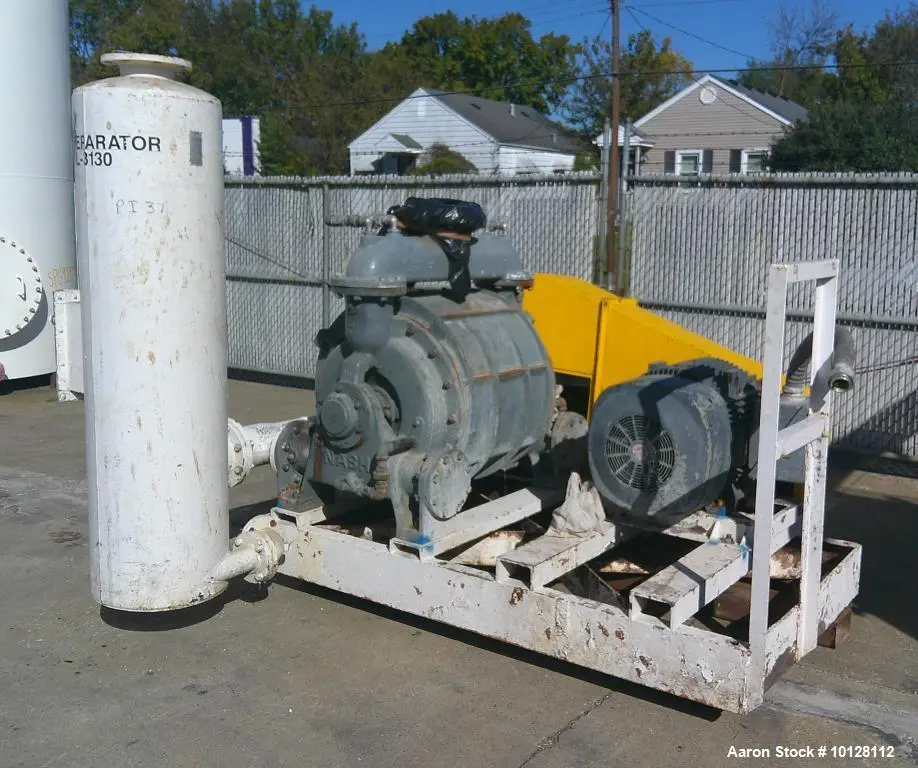

Used Nash CL2002 liquid ring vacuum pump system, test number ML09216, job number ML10325. This industrial vacuum package is estimated at 2000 CFM at 24" Hg and is powered by a 100 HP, 1780 RPM motor. Unit includes an 8" flanged inlet, 75-gallon separator tank, and carbon steel base. Pump turns freely and appears to be in good condition. Concrete has been removed from the base.
Specifications

Manufacturer: Nash
Model: CL2002
Type: Liquid Ring Vacuum Pump System
Estimated Capacity: 2000 CFM at 24" Hg

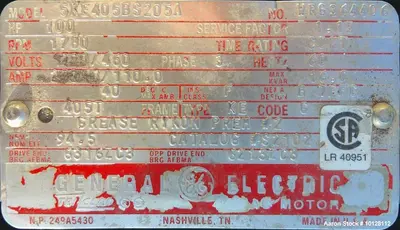

Motor: 100 HP
Motor Speed: 1780 RPM
Electrical: 230/460 VAC, 3 Phase
Inlet: 8" Flanged
Separator Tank: 75 Gallon
Top Tank Port: 6" Diameter Flanged
Bottom Tank Port: 3" Diameter Flanged
Side Access Port: 15" x 15"
Base: Carbon Steel

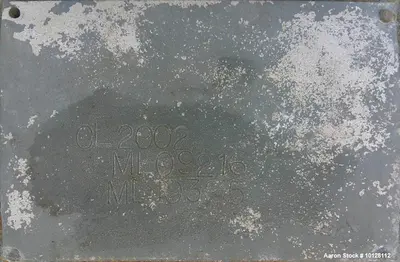

Test Number: ML09216
Job Number: ML10325
Condition: Used, pump turns freely

Applications

Chemical processing
Paper mill vacuum systems
Power plant condenser vacuum
Wastewater treatment
Food processing
Mining and mineral processing
Vacuum filtration
Deaeration systems
Solvent recovery
Industrial process vacuum

Products This Would Be Used For

Paper machines
Vacuum filters
Deaerators
Condenser exhausters
Process dryers
Extruder vent systems
Evaporators
Autoclaves
Separator systems
Central vacuum systems
