Used Stainless Steel Inclined Conveyor | Hopper Feed Elevator Conveyor System

Used Stainless Steel Inclined Conveyor | Hopper Feed Elevator Conveyor System. Hopper's opening is 28" wide by 63 3/4" long. There is a sliding cover for the hopper. The hopper has an estimated 100 cu ft capacity. There are 2 product sensors with two reflectors. The conveyors have a width of 32". The elevator's conveyor has some broken lifters. The discharge height is 120", and there are adjustable feet that can bring it up another 4". The motors are 265/460 vac 3 ph. overall dimensions are 62" wide by 292" long by 138.5" tall. Last used for running plastic bottles.

Used Equipment Facts About This Machine
Equipment Type: Stainless Steel Inclined Conveyor / Hopper Elevator Conveyor
Condition: Used
Previous Application: Plastic Bottle Handling

Description
Used stainless steel inclined conveyor system designed for bulk product elevation, accumulation, and automated product feeding applications. This conveyor includes a large-capacity hopper feed section and inclined elevator conveyor suitable for plastics, packaging, food, and industrial material handling operations.

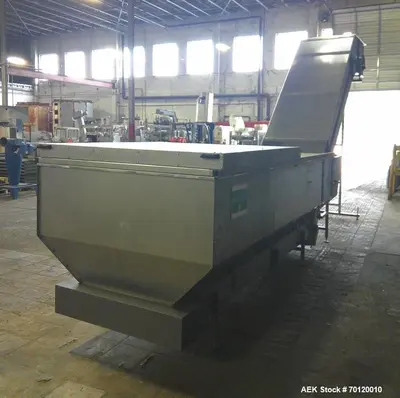

The system features a stainless steel hopper with an approximate 100 cubic foot capacity and a sliding hopper cover for controlled product containment. The conveyor section measures approximately 32” wide and includes product sensing controls with dual sensors and reflectors for automated product flow monitoring.

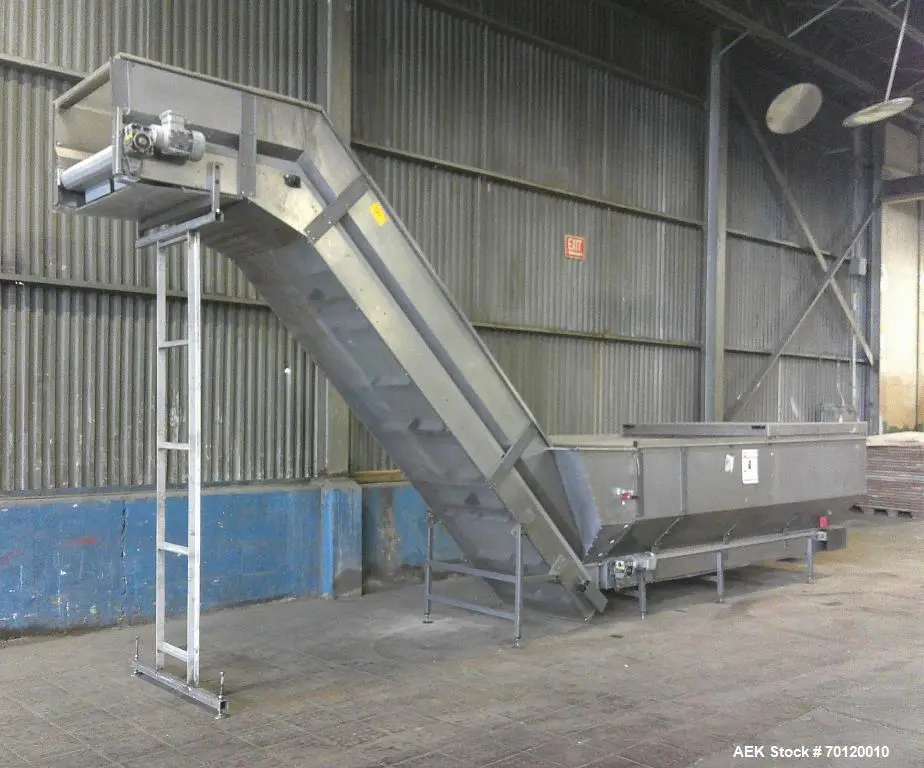

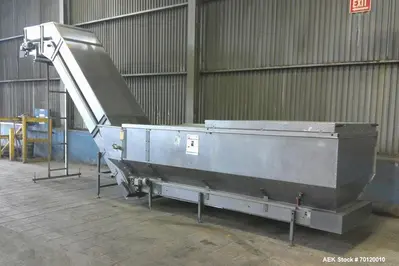

The inclined elevator conveyor discharges at approximately 120” high, with adjustable feet capable of increasing discharge height by an additional 4”. The conveyor was previously used for plastic bottle handling applications. Some conveyor lifters on the elevator section are damaged or broken and may require repair or replacement.

Specifications

Type: Inclined elevator conveyor system
Construction: Stainless steel
Previous Use: Plastic bottle handling

Hopper

Hopper Opening Width: 28”
Hopper Opening Length: 63 3/4”
Estimated Hopper Capacity: Approx. 100 cu. ft.
Sliding hopper cover included

Conveyor

Conveyor Width: 32”
Inclined elevator style conveyor
Product sensors with (2) reflectors included

Discharge

Discharge Height: Approx. 120”
Adjustable feet allow additional approx. 4” height adjustment

Electrical

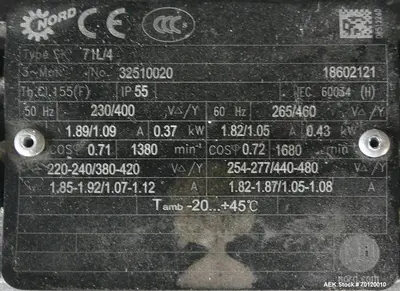

Motors: 265/460 VAC / 3 Phase

Overall Dimensions

Width: 62”
Length: 292”
Height: 138.5”

Condition Notes

Elevator conveyor has some broken lifters

Applications
Ideal for automated product feeding, bottle handling, bulk conveying, packaging lines, and material elevation systems.

Products This Equipment Would Be Used For

Plastic bottles
Containers
Caps and closures
Packaged products
Bulk plastic components
Food containers
Industrial parts
Consumer goods packaging
Recyclable materials
Lightweight bulk products
