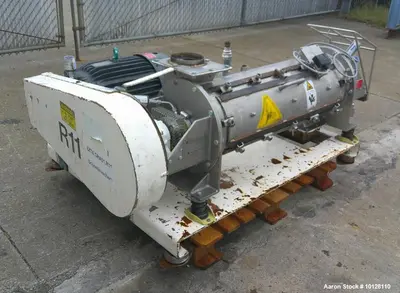

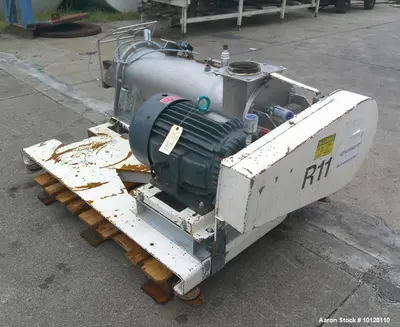

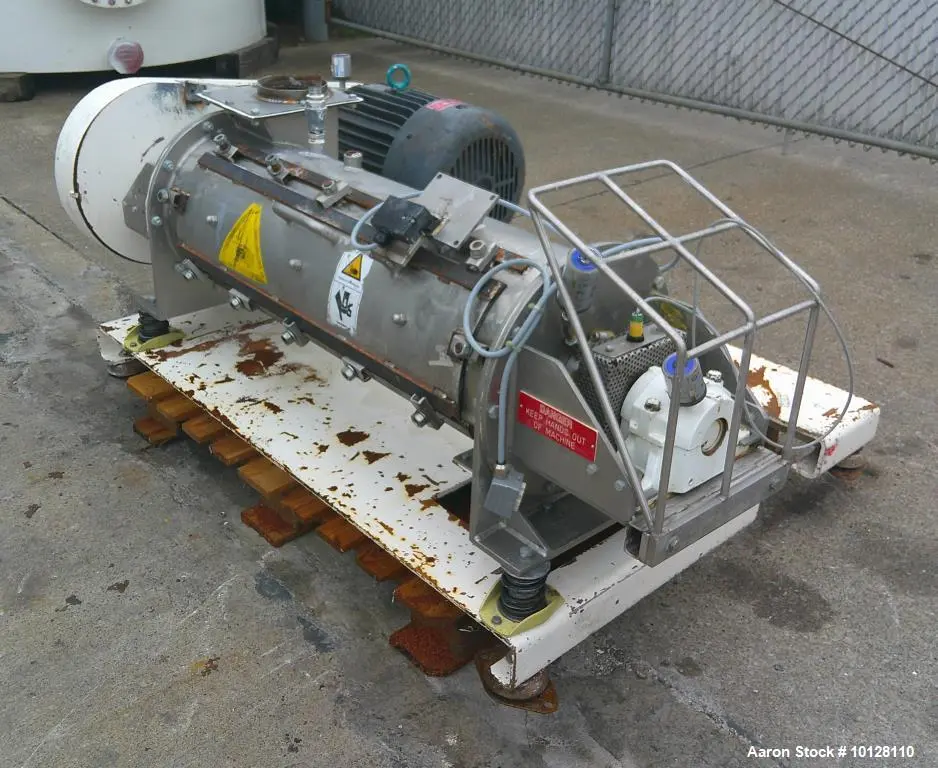

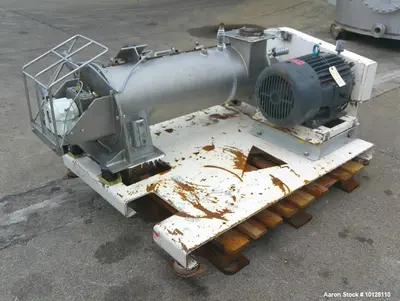

USED HOSOKAWA TS-14

Used Hosokawa Bepex TS-14 High Shear Paddle Blender | Stainless Steel Industrial Mixer. 14" diameter x 42.25" long id non-jacketed chamber. It has a 3" dia. shaft with 4 rows of adjustable paddles that are 1.5" wide. There is a removable side door that is 34.5" x 7". The inlet is 6" diameter and the outlet is 7" wide x 7" long. This unit is driven by a 30 hp 208-230/460 vac 3 ph electric motor. It is all mounted on a heavy carbon steel base. Serial number 2001016156. Overall dimensions 44" wide x 72" long x 32" tall.

Used Equipment Facts About This Machine
Manufacturer: Hosokawa Bepex
Model: TS-14
Equipment Type: High Shear Paddle Blender / Continuous Mixer
Condition: Used
Serial Number: 2001016156

Description
Used Hosokawa Bepex model TS-14 high shear paddle blender designed for intensive blending, mixing, conditioning, and powder processing applications in food, chemical, pharmaceutical, mineral, and industrial manufacturing environments.
Constructed from stainless steel, the mixer features a non-jacketed 14” diameter x 42.25” long internal mixing chamber equipped with a 3” diameter rotor shaft and four rows of adjustable mixing paddles. The adjustable paddle design allows flexibility for varying product characteristics and processing requirements.
The unit includes a removable side access door for inspection, maintenance, and cleaning access to the mixing chamber. Powered by a 30 HP motor, this blender delivers aggressive high-shear mixing performance for continuous or batch processing operations.
Mounted on a heavy-duty carbon steel base, the TS-14 is suitable for demanding industrial applications involving powders, granules, slurries, and specialty materials.

Specifications

Manufacturer: Hosokawa Bepex
Model: TS-14
Type: High shear paddle blender
Construction: Stainless steel
Serial Number: 2001016156

Mixing Chamber

Chamber Diameter: 14”
Chamber Length: 42.25”
Chamber Type: Non-jacketed

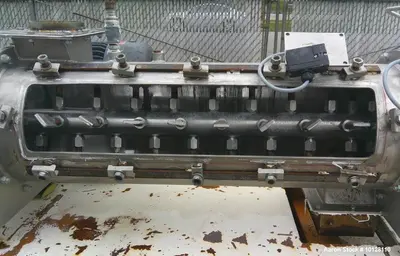

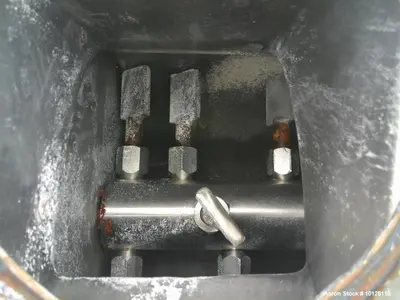

Rotor & Paddle System

Shaft Diameter: 3”
(4) rows of adjustable paddles
Paddle Width: 1.5”

Access & Openings

Removable Side Door: 34.5” x 7”
Inlet Diameter: 6”
Outlet Size: 7” wide x 7” long

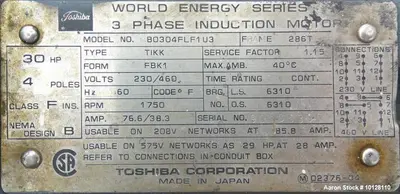

Motor & Electrical

Motor: 30 HP
Electrical: 208-230/460 VAC / 3 Phase

Mounting & Dimensions

Mounted on heavy carbon steel base
Overall Dimensions:

Width: 44”
Length: 72”
Height: 32”

Applications
Ideal for high shear blending, powder conditioning, dispersion, granulation, and continuous mixing operations.

Products This Equipment Would Be Used For

Food ingredients
Powdered chemicals
Mineral products
Nutraceutical powders
Pharmaceutical blends
Fertilizer compounds
Specialty powders
Dry bulk ingredients
Industrial additives
Animal feed ingredients
