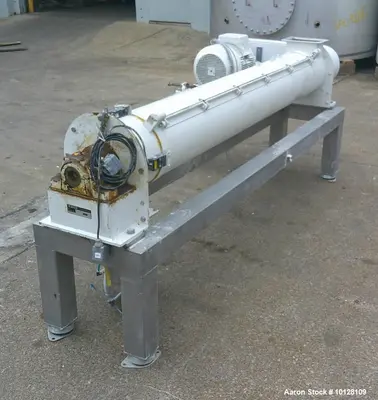

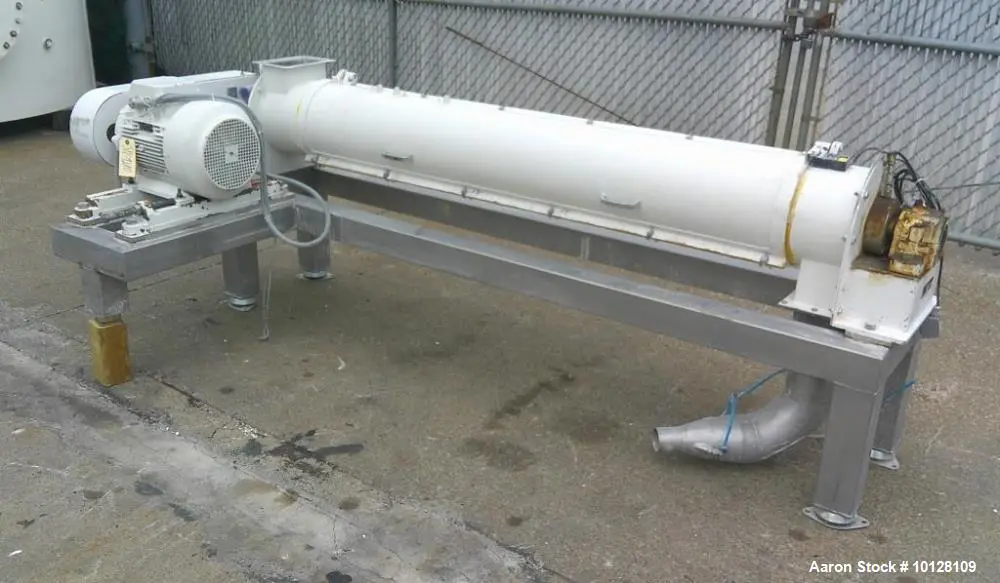

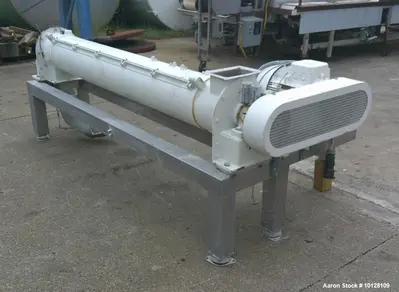

USED BUHLER INC. MOXJ-27/200

Manufacturer: Buhler AG
Model: MOXJ-27/200
Equipment Type: Continuous Intensive Mixer
Condition: Used
Serial Number: 20762199

Description
Used Buhler AG model MOXJ-27/200 continuous intensive mixer designed for high-capacity continuous blending and conditioning applications in food, feed, chemical, mineral, and industrial processing environments.

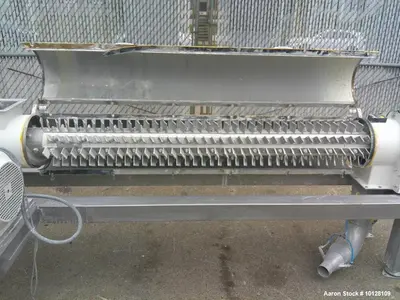

Constructed from 316 stainless steel, this industrial mixer features a screw infeed system feeding into a 12” diameter x 73” long mixing chamber equipped with a high-intensity paddle rotor assembly. The rotor contains 8 rows with 40 paddles per row for aggressive and uniform material mixing performance.
Designed for continuous processing operations, the mixer is capable of production rates up to approximately 4,000 kg/hr depending on product characteristics and application requirements. A nearly full-length side access door provides convenient inspection and maintenance access to the mixing chamber.

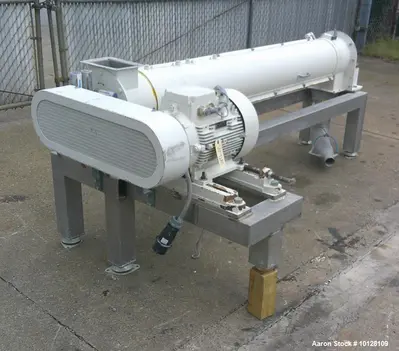

Mounted on a stainless steel stand, the unit is powered by a 17.3 kW TEFC motor and is suitable for sanitary and industrial material handling applications.

Specifications

Manufacturer: Buhler AG
Model: MOXJ-27/200
Type: Continuous intensive mixer
Construction: 316 stainless steel
Serial Number: 20762199

Mixing Chamber

Chamber Diameter: 12”
Chamber Length: 73”

Rotor Configuration

(8) rows of paddles
(40) paddles per row
Paddle Size: Approx. 1.5” wide x 2.125” long x 0.375” thick

Feed & Discharge

Screw infeed system
Approximate inlet/outlet size: 7 3/4” x 4 3/4”

Capacity

Throughput: Up to approx. 4,000 kg/hr

Access Features

Full-length side access door for maintenance and cleaning

Motor & Electrical

Motor: 17.3 kW TEFC motor
Electrical Requirement: 460 VAC / 3 Phase

Dimensions

Length: 104”
Width: 48”
Height: 37.25”
Mounted on stainless steel stand

Applications
Ideal for continuous blending, conditioning, coating, wetting, and high-intensity mixing applications.

Products This Equipment Would Be Used For

Food ingredients
Animal feed products
Grain blends
Powdered chemicals
Mineral products
Fertilizer compounds
Specialty powders
Industrial additives
Nutraceutical ingredients
Dry bulk materials
